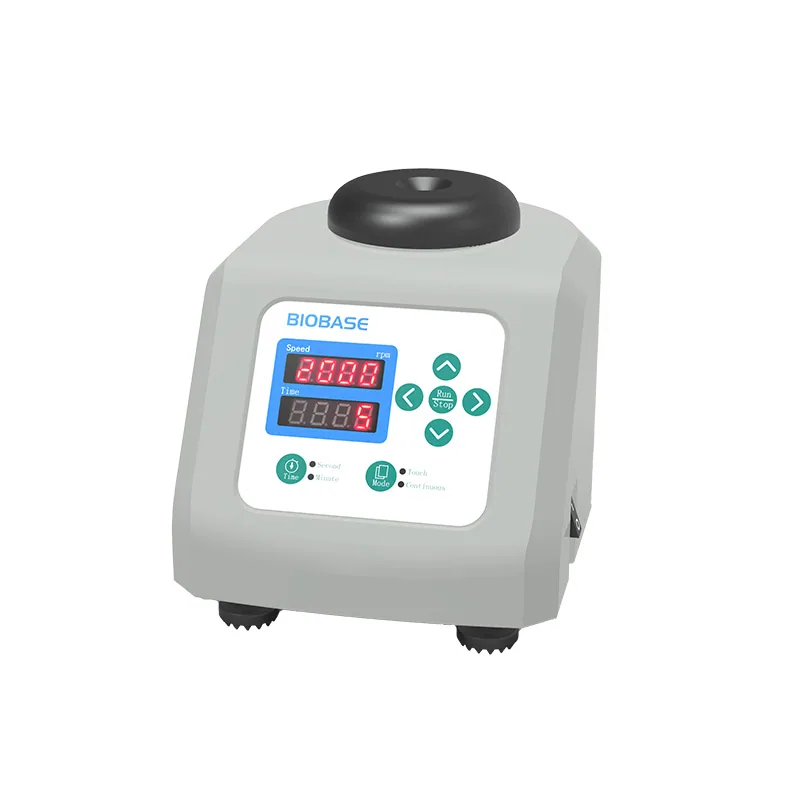

BIOBASE Vortex Mixer BJPX-VW
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Vortex Mixer BJPX-VW is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: BJPX-VW. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BJPX-VW |
|---|---|
| Speed/Accuracy | 200~3000rpm/±5rpm |
| Timing | 0~9999min/s |
| Amplitude Range | 4mm |
| Oscillation Mode | Circular motion |
| Working Mode | Point vibration, continuous |
| Control Form | Pressure sensing |
| Power | 35W |
| Power Supply | 100~240V, 50/60Hz |
| Packing Size | 280mm*230mm*210mm |
| Gross Weight | 7.1kg |
| Type | Item No. | Mode | Max Speed | Max Test Tube Size | Standard/Optional |
|---|---|---|---|---|---|
| Test Tube Platform | XW001 | Point vibration, continuous | 3000rpm | Suitable for test tubes of different sizes | Standard |
| Flat Bottom Container Platform | XW002 | Point vibration, continuous | 3000rpm | Container bottom size≤φ80mm | Optional |
| Test Tube Holder: 19*10mm | XW003 | Continuous | 2000rpm | Applicable to 19 test tubes with an outer diameter of 10mm | Optional |
| Test Tube Holder: 13*12mm | XW004 | Continuous | 2000rpm | Suitable for 13 test tubes with an outer diameter of 12mm | Optional |
| Test Tube Holder: 12*15mm | XW005 | Continuous | 1400rpm | Suitable for 12 test tubes with outer diameter of 15mm | Optional |
| Test Tube Holder: 7*20mm | XW006 | Continuous | 1400rpm | Applicable for 7 test tubes of 20mm outer diameter | Optional |
| Test Tube Holder: 4*26mm | XW007 | Continuous | 1400rpm | Suitable for 4 test tubes with outer diameter of 26mm | Optional |
| Microplate Tray | XW008 | Continuous | 1000rpm | Suitable for microplate with an outer dimension of 128mm*86mm | Optional |
| Test Tube Holder Tray | XW009 | / | / | Suitable for fixing test tube holder XW003-XW007 | Optional |
Manufacturer catalogue checked 2026-09-28.
