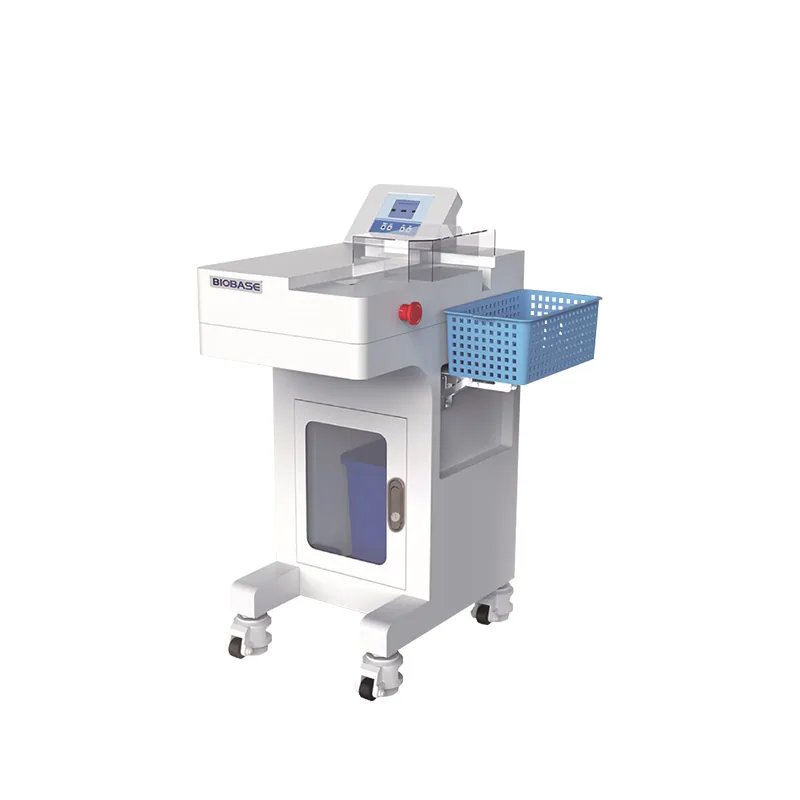

BIOBASE Vial Peeling Machine VDM-01 VDM-02
Brand: BIOBASE | Category: Medical Equipment
BIOBASE Vial Peeling Machine VDM-01 VDM-02 is listed in VVON's clinical storage & dispensing equipment range for Bangladesh. Published models: VDM-01, VDM-02. Match the clinical workflow, item dimensions, capacity and interfaces. For a quotation, send the workflow, item sizes, workload, interfaces and site requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | VDM-01 | VDM-02 |
|---|---|---|
| Product Size | 366*546*860mm | 725*586*820mm |
| Product Weight | 35kg | 68kg |
| Suitable Vial Size | Caliber 20mm, height≤87mm, bottle diameter≤33mm, also can be customized | Caliber 20mm, height≤87mm, bottle diameter≤33mm; Caliber 13mm, height≤70mm, bottle diameter≤2Op3mm, also can be customized |
| Operating Interface | 3.5 inches LCD screen | 3.5 inches LCD screen |
| Operating System | Embedded control systems | Embedded control systems |
| Delivery Method | Flat-belt conveyor | Flat-belt conveyor |
| Peeling Method | Auto | Auto |
| Vial Receiving Method | Medicine frame receiving | Medicine frame receiving |
| Cap Dropping Method | Auto dropping, visible | Auto dropping, visible |
| Counting Method | Auto display | Auto display |
| Speed Level | 5 levels | 5 levels |
| Safety Device | Emergency stop, safety shield | Emergency stop, safety shield |
| Power Supply | 110/220V, 50/60Hz | 110/220V, 50/60Hz |
| Packing Size | 530*720*1070mm | 915*730*980 |
| Gross Weight | 47kg | 88kg |
Manufacturer catalogue checked 2026-09-28.
