Brand: BIOBASE | Category: Scientific & Laboratory Equipment

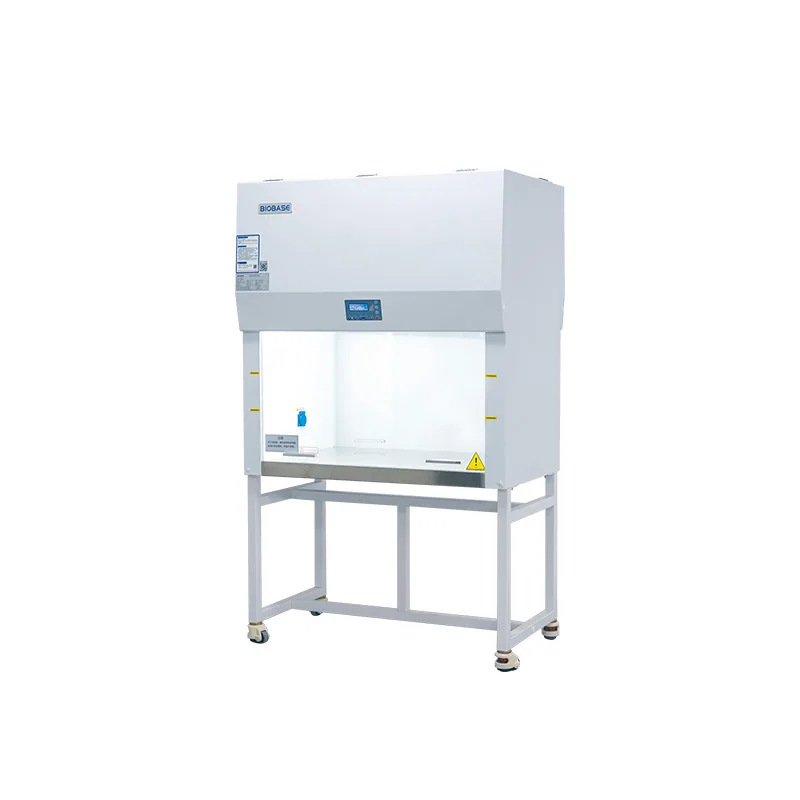

BIOBASE Vertical Laminar Flow Cabinet BBS-DSC-M-FL(Customized) is listed in VVON's laminar flow & clean-air equipment range for Bangladesh. Published models: BBS-DSC-M-FL. Match airflow arrangement, working dimensions and cleanliness requirements to the process. For a quotation, send the process, work area, airflow requirements and room layout. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BBS-DSC-M-FL |
|---|---|
| External Size(W*D*H) | 1100*760*1850mm |
| Internal Size(W*D*H) | 940*650*615mm |
| Work Surface Height | 750mm |
| Safety Height | 200~350mm |
| Max Opening | 400mm |
| Display | LCD display |
| Airflow Velocity | 0.30~0.45m/s |
| Material | Working Area: 304 stainless steel Main Body: 1.0mm cold-rolled steel with anti-bacteria powder coating Front Window: 5mm toughened glass, anti-UV |
| Pre-filter | Polyester fiber |
| HEPA Filter | One, 99.995% efficiency at 0.3μm |
| Front Window | Manual |
| Noise | ≤65dB(A) |
| Illumination | ≥300lx |
| Vibration | ≤5μm(rms) |
| Safety | Colonies Number≤0.5CFU/30min |
| Clean Level | ISO level 5(Class 100) |
| Waterproof Sockets | Two sockets, Max. Power: 1000W |
| Power Supply | AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional) |
| Consumption | 1150W |
| LED Lamp | 12W*1 |
| UV Lamp | 20W*1 |
| Standard Accessories | Base stand, LED lamp, UV lamp, Waterproof socket*2 |
| Package Size(W*D*H) | 1240*1030*1350mm |
| Gross Weight | 195kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
