Brand: BIOBASE | Category: Scientific & Laboratory Equipment

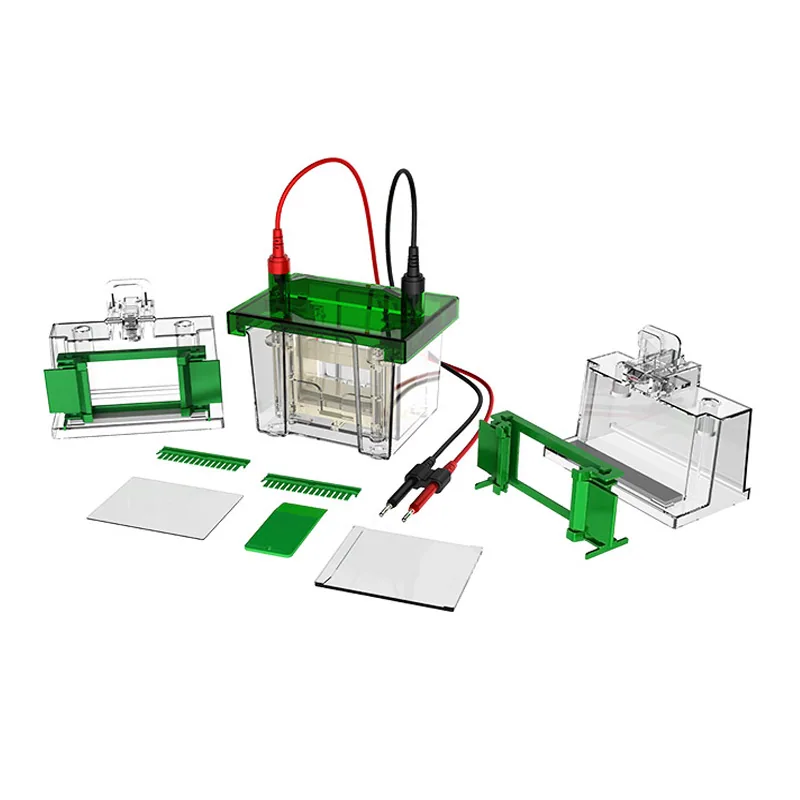

BIOBASE Vertical Electrophoresis Tank BK-VET01 is listed in VVON's electrophoresis & gel imaging range for Bangladesh. Published models: BK-VET01. Published details include Buffer Volume: 700ml. Match gel format, sample capacity, power supply and imaging method. For a quotation, send the gel type, sample count, detection method and imaging requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-VET01 |
|---|---|
| Glass Tray(W*L) | Thick type: 101*83mm, thin type: 101*73mm |
| Gel Trays(W*L) | Hand glue: 83*73mm, precast glue: 86*68mm |
| Comb Thickness | Standard 1.0mm, optional 1.5mm |
| Comb Throughput | 10, 15 samples |
| Amount of Gel | 1~2pcs |
| No. of Samples | 10~30pcs |
| Buffer Volume | 700ml |
| Standard Accessories | Body tank *1, Cap*1, Electrode core*1 set, Gel casting base*2, Gel frame*2, Single glue baffle* 1, Gel shovel* 1, Glass plates*5 pairs, 1.0mm thickness 10 wells comb*2, 1.0mm thickness 15 wells comb*2 |
| External Size (L*W*H) | 150*120*130mm |
| Package Size(L*W*H) | 400*350*300mm |
| Gross Weight | 2.7kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
