Brand: BIOBASE | Category: Scientific & Laboratory Equipment

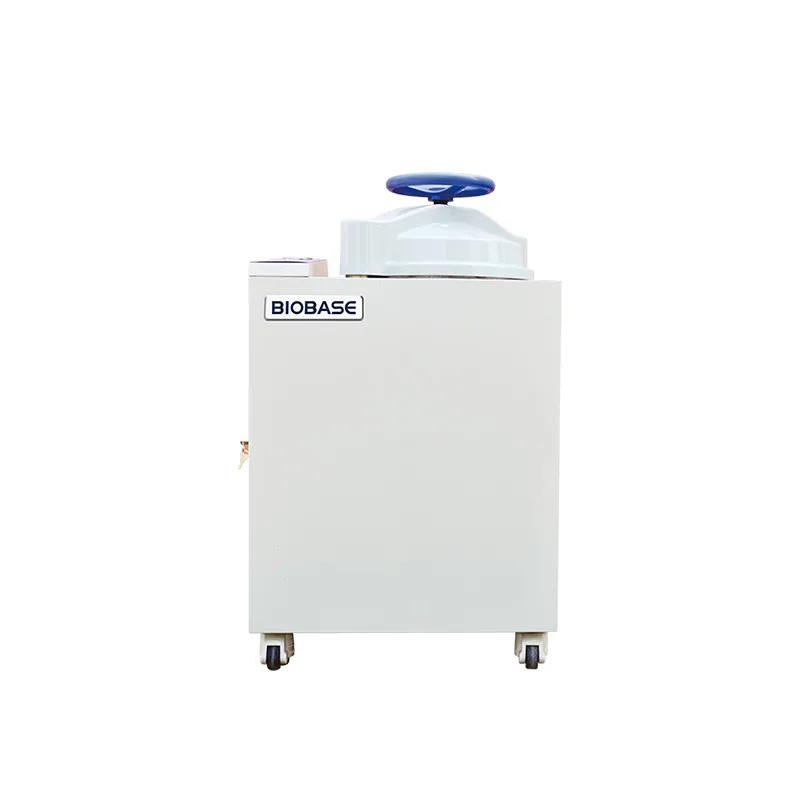

BIOBASE Vertical Autoclave BKQ-B50II is listed in VVON's autoclaves & sterilisation equipment range for Bangladesh. Published models: BKQ-B50II, BKQ-B75II, BKQ-B100II, BKQ-B120II, BKQ-B150(II), BKQ-B200(II). Match chamber size, load type, cycle requirements and available utilities. For a quotation, send the load type, chamber capacity, cycle requirements and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BKQ-B50II | BKQ-B75II | BKQ-B100II | BKQ-B120II | BKQ-B120II | BKQ-B150(II) | BKQ-B200(II) |
|---|---|---|---|---|---|---|---|
| Capacity | 50L | 75L | 100L | 120L | 120L | 150L | 200L |
| Designed Pressure | 0.28MPa | 0.28MPa | 0.28MPa | 0.28MPa | 0.28MPa | 0.3MPa | 0.3MPa |
| Working Pressure | 0.23MPa | 0.23MPa | 0.23MPa | 0.23MPa | 0.23MPa | 0.217MPa | 0.217MPa |
| Designed Temp. | 150℃ | 150℃ | 150℃ | 150℃ | 150℃ | 137℃ | 137℃ |
| Working Temp. | 105~136℃ | 105~136℃ | 105~136℃ | 105~136℃ | 105~136℃ | 50~134℃ | 50~134℃ |
| Temp. Precision | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ |
| Chamber Material | S30408 | S30408 | S30408 | S30408 | S30408 | S30408 | S30408 |
| Chamber Size | φ386*514mm | φ386*695mm | φ386*875mm | φ386*1055mm | φ386*1055mm | φ500*760mm | φ500*1000mm |
| Basket/ Mesh Bottom Basket/ Bucket | φ365*360mm, 1pc | φ365*265mm, 2pcs | φ365*360mm, 2pcs | φ365*360mm, 1pc φ365*265mm , 2pcs | φ365*360mm, 1pc φ365*265mm , 2pcs | φ470*230mm, 3pcs | φ470*230mm , 4pcs |
| Noise | ≤65dB | ≤65dB | ≤65dB | ≤65dB | ≤65dB | ≤65dB | ≤65dB |
| Altitude | ≤2700m | ≤2700m | ≤2700m | ≤2700m | ≤2700m | ≤2700m | ≤2700m |
| Standard Accessory | Basket | Basket | Basket | Basket | Basket | Basket | Basket |
| Optional Accessories | Printer, mesh bottom basket, bucket | Printer, mesh bottom basket, bucket | Printer, mesh bottom basket, bucket | Printer, mesh bottom basket, bucket | Printer, mesh bottom basket, bucket | Printer | Printer |
| Consumption | 4.4KW | 4.7KW | 5.2KW | 5.2KW | 5.2KW | 6KW | 6KW |
| Power Supply | AC220V, 50/60Hz（Standard）；AC110V, 50/60Hz（Optional);Wiring method:Air switch | AC220V, 50/60Hz（Standard）；AC110V, 50/60Hz（Optional);Wiring method:Air switch | AC220V, 50/60Hz（Standard）；AC110V, 50/60Hz（Optional);Wiring method:Air switch | AC220V, 50/60Hz（Standard）；AC110V, 50/60Hz（Optional);Wiring method:Air switch | AC220V, 50/60Hz（Standard）；AC110V, 50/60Hz（Optional);Wiring method:Air switch | AC380V,50/60Hz（Standard）；AC220V,50/60Hz（Optional） Wiring method：Air switch ; | AC380V,50/60Hz（Standard）；AC220V,50/60Hz（Optional） Wiring method：Air switch ; |
| External Size(W*D*H) | 640*550*980mm | 640*550*1080mm | 640*550*1280mm | 640*550*1380mm | 640*550*1380mm | 630*700*1400mm | 630*700*1600mm |
| Net Weight | 87kg | 95kg | 105kg | 122kg | 122kg | 162kg | 180kg |
| Package Size(W*D*H) | 750*745*1100mm | 750*745*1240mm | 750*745*1450mm | 750*745*1540mm | 750*745*1540mm | 760*800*1530mm | 760*800*1720mm |
| Gross Weight | 104kg | 114kg | 127kg | 142kg | 142kg | 213kg | 238kg |
Manufacturer catalogue checked 2026-09-28.
