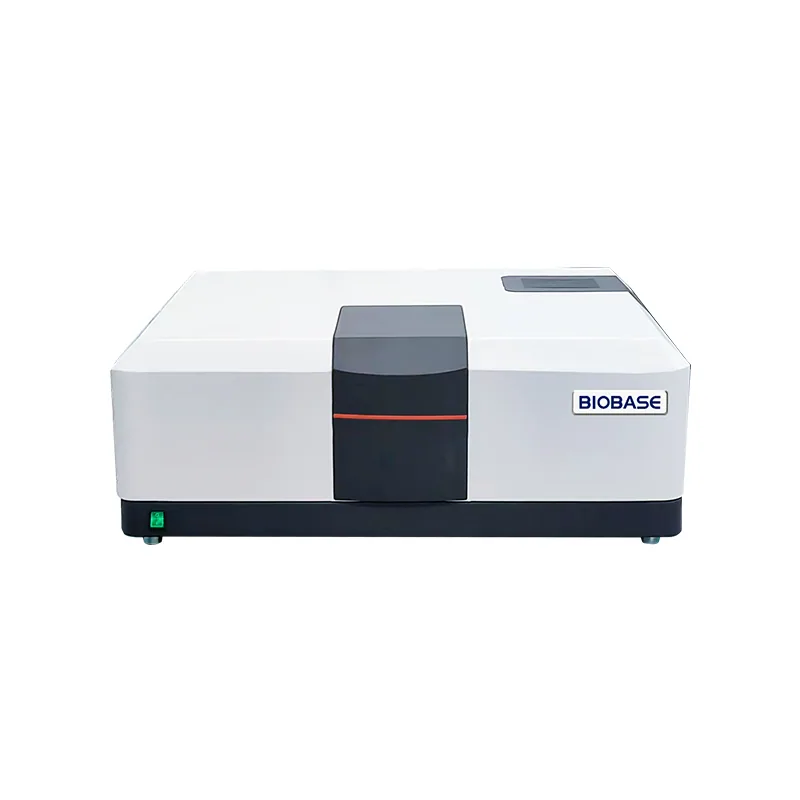

BIOBASE UV-Vis NIR Spectrophotometer BK-UN600PLUS
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE UV-Vis NIR Spectrophotometer BK-UN600PLUS is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: BK-UN600PLUS. Published details include Wavelength Range: 190~3200nm(Transmission and specular reflectance mode) 250~2500nm(Integrating sphere mode). Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-UN600PLUS |
|---|---|
| Optical System | Double beam |
| Light Source | Deuterium lamp, tungsten lamp |
| Detector | PMT, PbS |
| Optical System | Czerny-Turner |
| Wavelength Range | 190~3200nm(Transmission and specular reflectance mode) 250~2500nm(Integrating sphere mode) |
| Stability | ±0.002A/hr @500nm, 0A |
| Wavelength Accuracy | ±0.5nm(UV/Vis) ±0.4nm(NIR) |
| Wavelength Repeatability | ≤0.2nm(UV/Vis) ≤1nm(NIR) |
| Spectral Bandwidth | 0.1~7nm(UV/Vis) 0.8~20nm(NIR) |
| Operate Mode | Transmittance, absorbance, reflectivity, energy |
| Raster | Diffraction grating 1200L/mm(UV/Vis) 300L/mm(NIR) |
| Photometric Accuracy | ±0.3%T(0~100%T) |
| Photometric Repeatability | ≤0.2%T |
| Stray Light | ≤0.2%T(360nm, 420nm) |
| Sampling Interval | 0.1nm, 0.2nm, 0.5nm, 1nm, 1.5nm, 2nm, 5nm, 10nm |
| Photometric Range | 0~3A |
| Baseline Flatness | ±1%T(190~3200nm, after 30min warm-up) ±0.5%T(200~2500nm, after 30min warm-up) |
| Host Interface | USB2.0 |
| Power Supply | AC 110/220V, 50/60Hz |
| Standard Accessory | Operational software |
| Optional Accessory | Integrating sphere accessory(60/100/150mm); transmission accessory; reflection accessory(Only the 60mm integrating sphere accessory, transmission accessory, and reflection accessory are configurable simultaneously) |
| External Size(W*D*H) | 760*605*300mm |
| Package Size(W*D*H) | 870*750*505mm |
| Net Weight | 48kg |
| Gross Weight | 69kg |
Manufacturer catalogue checked 2026-09-28.
