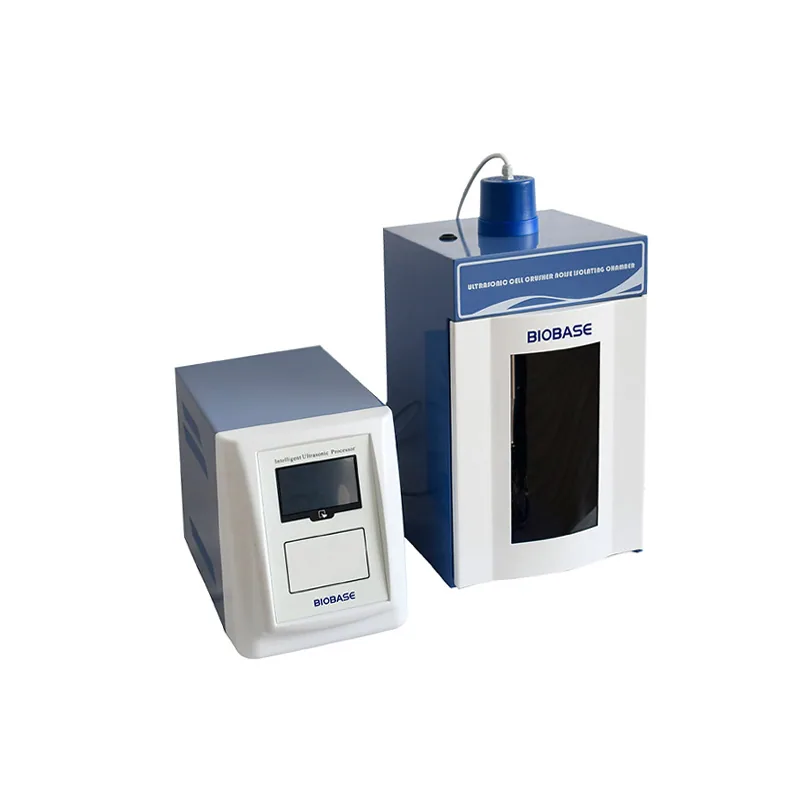

BIOBASE Ultrasonic Cell Disruptor UCD Series UCD-150 UCD-250 UCD-500 UCD-650 UCD-950 UCD-1200 UCD-1500 UCD-1800 UCD-2000
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Ultrasonic Cell Disruptor UCD Series UCD-150 UCD-250 UCD-500 UCD-650 UCD-950 UCD-1200 UCD-1500 UCD-1800 UCD-2000 is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: UCD-150, UCD-250, UCD-500, UCD-650, UCD-950, UCD-1200. Compare the remaining models in the specification tables. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | UCD-150 | UCD-250 | UCD-500 | UCD-650 | UCD-950 | UCD-1200 | UCD-1500 | UCD-1800 | UCD-2000 |
|---|---|---|---|---|---|---|---|---|---|
| Frequency(KHz) | 20~25 | 20~25 | 20~25 | 20~25 | 20~25 | 19.5~20.5 | 19.5~20.5 | 19.5~20.5 | 19.5~20.5 |
| Crushing Capacity(ml) | 0.1~150 | 0.1~300 | 0.1~400 | 0.1~500 | 0.1~700 | 1~1000 | 10~1200 | 1~1200 | 50~2000 |
| Standard Amplitude-change PoleΦ(mm) | 6 | 6 | 6 | 6 | 6 | 20 | 22 | 22 | 25 |
| Optional Amplitude-change Pole Φ(mm) | 2, 3, 6, 8,10 | 2, 3, 6, 8, 10 | 2, 3, 6, 8, 10, 12 | 2, 3, 6, 8, 10, 12 | 2, 3, 6, 8, 10, 12, 15 | 3, 6, 8，10, 15, 22, 25 | 3, 6, 8， 10, 15, 20, 22, 25 | 3, 6, 8， 10, 15, 20, 22, 25 | 6, 8, 10, 15, 20, 22 , 25 |
| Ultrasonic Power(W1-100%) | 1.5~150 | 2.5~250 | 5~500 | 6.5~650 | 10~1000 | 12~1200 | 15~1500 | 18~1800 | 20~2000 |
| Power Supply | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) |
| Package Size(W*D*H) | 350*350*550mm(Acoustic chamber) 470*305*450mm(Main body) | 350*350*550mm(Acoustic chamber) 470*305*450mm(Main body) | 350*350*550mm(Acoustic chamber) 470*305*450mm(Main body) | 350*350*550mm(Acoustic chamber) 470*305*450mm(Main body) | 350*350*550mm(Acoustic chamber) 470*305*450mm(Main body) | 350*350*550mm(Acoustic chamber) 470*305*450mm(Main body) | 350*350*550mm(Acoustic chamber) 470*305*450mm(Main body) | 350*350*550mm(Acoustic chamber) 470*305*450mm(Main body) | 350*350*550mm(Acoustic chamber) 470*305*450mm(Main body) |
| Gross Weight | 26kg | 26kg | 26kg | 26kg | 26kg | 29kg | 29kg | 29kg | 29kg |
| Size | Crushing; Capacity | Recommended; Power Ratio | Frequency(KHz) | UCD-150 | UCD-250 | UCD-500 | UCD-650 | UCD-950 | UCD-1000 | UCD-1200 | UCD-1500 | UCD-1800 | UCD-2000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| φ2mm | 0.1~5ml | 1~35% | 20~25 | √ | √ | √ | √ | √ | √ | x | x | x | x |
| φ3mm | 3~10ml | 1~45% | 20~25 | √ | √ | √ | √ | √ | √ | √ | √ | √ | x |
| φ5mm | 5~100ml | 1~60% | 20~25 | x | x | x | x | x | x | x | x | x | x |
| φ6mm | 10~100ml | 1~70% | 20~25 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| φ8mm | 20~200ml | 1~85% | 20~25 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| φ10mm | 30~300ml | 1~90% | 20~25 | v | √ | √ | √ | √ | √ | x | x | x | x |
| φ10mm | 30~300ml | 1~60% | 19.5~20.5 | x | x | x | x | x | x | √ | √ | √ | √ |
| φ12mm | 50~600ml | 10~90% | 20~25 | x | x | √ | √ | √ | √ | x | x | x | x |
| φ15mm | 200~750ml | 10~95% | 20~25 | x | x | x | x | √ | √ | x | x | x | x |
| φ15mm | 50~500ml | 5~80% | 19.5~20.5 | x | x | x | x | x | x | √ | √ | √ | √ |
| φ20mm | 100~1000ml | 10~90% | 19.5~20.5 | x | x | x | x | x | x | √ | √ | √ | √ |
| φ22mm | 200~1200ml | 20~95% | 19.5~20.5 | x | x | x | x | x | x | √ | √ | √ | √ |
| φ25mm | 300~1500ml | 30~95% | 19.5~20.5 | x | x | x | x | x | x | √ | √ | √ | √ |
Manufacturer catalogue checked 2026-09-28.
