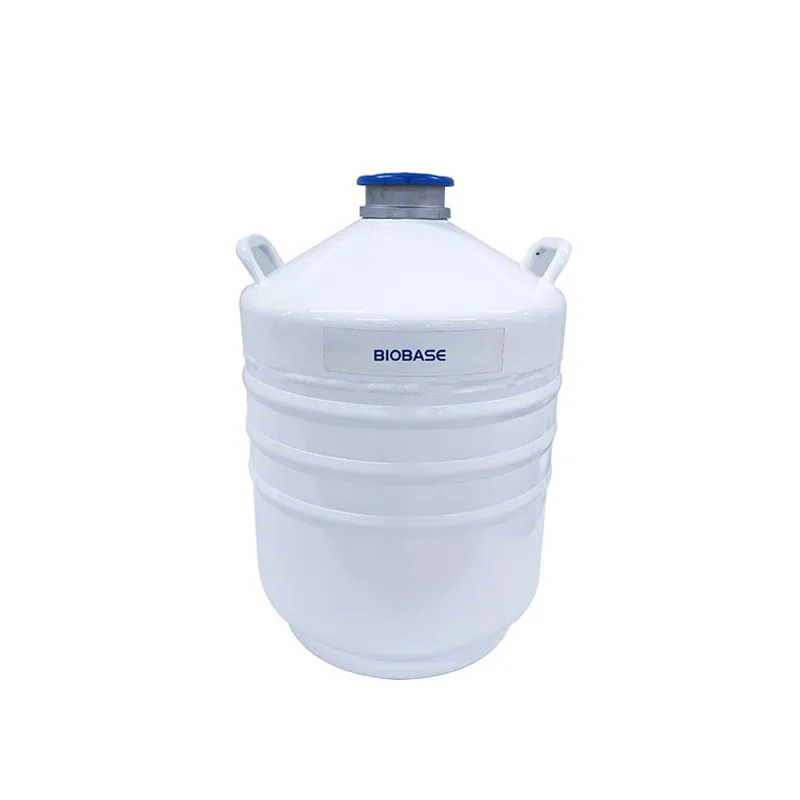

BIOBASE Transportation Liquid Nitrogen Container YDS Series
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Transportation Liquid Nitrogen Container YDS Series is listed in VVON's liquid nitrogen & cryogenic storage range for Bangladesh. Published models: YDS-20B, YDS-30B, YDS-35B-80, YDS-35B-125, YDS-35B, YDS-50B-125. Compare the remaining models in the specification tables. Match vessel capacity, neck size, sample racks and storage or transport use. For a quotation, send the vessel capacity, sample type, rack format, holding time and intended use. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | Unit | YDS-20B | YDS-20B | YDS-20B | YDS-30B | YDS-30B | YDS-30B | YDS-35B-80 | YDS-35B-80 | YDS-35B-80 | YDS-35B-125 | YDS-35B-125 | YDS-35B-125 | YDS-35B | YDS-35B | YDS-35B | YDS-50B-125 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | L | 20.1 | 20.1 | 20.1 | 31.5 | 31.5 | 31.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 50 |
| Empty Weight | kg | 12.42 | 12.42 | 12.42 | 15.6 | 15.6 | 15.6 | 17.9 | 17.9 | 17.9 | 18.3 | 18.3 | 18.3 | 17.1 | 17.1 | 17.1 | 21 |
| Caliber | mm | 50±1 | 50±1 | 50±1 | 50±1 | 50±1 | 50±1 | 80±1 | 80±1 | 80±1 | 125±1 | 125±1 | 125±1 | 50±1 | 50±1 | 50±1 | 125±1 |
| Outer Diameter | mm | 409±2 | 409±2 | 409±2 | 455±2 | 455±2 | 455±2 | 455 | 455 | 455 | 455 | 455 | 455 | 455 | 455 | 455 | 508 |
| Height | mm | 675 | 675 | 675 | 665 | 665 | 665 | 725 | 725 | 725 | 720 | 720 | 720 | 725 | 725 | 725 | 818±4 |
| Static Evaporation Loss | L/d | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.30 | ≤0.30 | ≤0.30 | ≤0.41 | ≤0.41 | ≤0.41 | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.45 |
| Static Holding Time | d | ≥101 | ≥101 | ≥101 | ≥159 | ≥159 | ≥159 | ≥119 | ≥119 | ≥119 | ≥86 | ≥86 | ≥86 | ≥179 | ≥179 | ≥179 | ≥110 |
| Canister Specification | mm | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Canister No.(Standard) | pc | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Canvas Protective Sleeve | pc | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Lockable Lid | set | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Packing Size | mm | 460*460*750 | 460*460*750 | 460*460*750 | 510*510*810 | 510*510*810 | 510*510*810 | 510*510*810 | 510*510*810 | 510*510*810 | 510*510*810 | 510*510*810 | 510*510*810 | 510*510*810 | 510*510*810 | 510*510*810 | 575*575*860 |
| Gross Weight | kg | 14.1 | 14.1 | 14.1 | 17.6 | 17.6 | 17.6 | 19.9 | 19.9 | 19.9 | 20.3 | 20.3 | 20.3 | 19.1 | 19.1 | 19.1 | 24.8 |
| Model | Unit | YDS-20B-LS(6) | YDS-20B-S(6) | YDS-30B-LS(6) | YDS-30B-S(6) | YDS-35B-80LS(6) | YDS-35B-80S(6) | YDS-35B-125-FS | YDS-35B-125LS(6) | YDS-35B-125S(6) | YDS-35B-LS(6) | YDS-35B-S(6) | YDS-50B-125-FS | YDS-50B-125LS(6) | YDS-50B-125S(6) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | L | 20.1 | 20.1 | 31.5 | 31.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 50 | 50 | 50 |
| Empty Weight | kg | 13.78 | 13.22 | 17.9 | 17.3 | 20.3 | 19.1 | 25.4 | 22.52 | 20.61 | 18.45 | 17.85 | 28.5 | 23.7 | 22 |
| Caliber | mm | 50±1 | 50±1 | 50±1 | 50±1 | 80±1 | 80±1 | 125±1 | 125±1 | 125±1 | 50±1 | 50±1 | 125±1 | 125±1 | 125±1 |
| Outer Diameter | mm | 409±2 | 409±2 | 455±2 | 455±2 | 455 | 455 | 455 | 455 | 455 | 455 | 455 | 508 | 508 | 508 |
| Height | mm | 680 | 680 | 670±4 | 670±4 | 735 | 725 | 735 | 735 | 735 | 735 | 735 | 818±4 | 818±4 | 818±4 |
| Static Evaporation Loss | L/d | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.30 | ≤0.30 | ≤0.41 | ≤0.41 | ≤0.41 | ≤0.20 | ≤0.20 | ≤0.45 | ≤0.45 | ≤0.45 |
| Static Holding Time | d | ≥101 | ≥101 | ≥159 | ≥159 | ≥119 | ≥119 | ≥86 | ≥86 | ≥86 | ≥179 | ≥179 | ≥110 | ≥110 | ≥110 |
| Canister Specification | mm | Round: Diameter φ38±1; Height 276±1 | Round: Diameter φ38±1; Height 120±1 | Round: Diameter φ38±1; Height 276±1 | Round: Diameter φ38±1; Height 120±1 | Round: Diameter φ60±1; Height 276±1 | Round: Diameter φ60±1; Height 120±1 | Square: 82*84mm. With 5*5 2ml cryobox, 750pcs cryogetic vials | Round: Diameter φ97±1; Height 276±1 | Round: Diameter φ97±1; Height 120±1 | Round: Diameter φ38; Height 276 | Round: Diameter φ38; Height 120±1 | Square: 82*84mm. With 5*5 2ml cryobox, 900pcs cryogetic vials | Round: Diameter φ97±1; Height 276±1 | Round: Diameter φ97±1; Height 120±1 |
| Canister No(Standard) | pc | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Canvas Protective Sleeve | pc | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | NO | NO | NO |
| Lockable Lid | set | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Packing Size | mm | 460*460*750 | 460*460*750 | 510*510*810 | 510*510*810 | 510*510*810 | 510*510*810 | 510*510*810 | 510*510*810 | 510*510*810 | 510*510*810 | 510*510*810 | 575*575*860 | 575*575*860 | 575*575*860 |
| Gross Weight | kg | 15.5 | 15 | 20.1 | 19.3 | 22.3 | 21.8 | 28.1 | 24.7 | 22.7 | 20.1 | 19.8 | 32.3 | 27.5 | 25.5 |
Manufacturer catalogue checked 2026-09-28.
