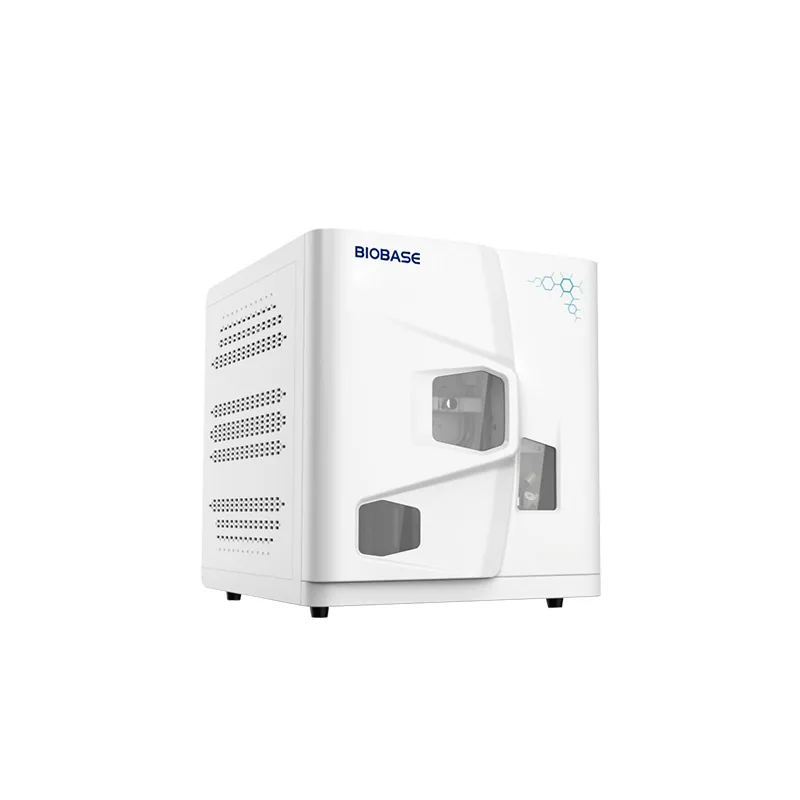

BIOBASE Total Organic Carbon Analyzer BK-TOC5000RN
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Total Organic Carbon Analyzer BK-TOC5000RN is listed in VVON's ph conductivity & water analysis range for Bangladesh. Published models: BK-TOC5000RN, BK-TOC5000RD. Match measured parameters, range, probe compatibility and sample conditions. For a quotation, send the water or sample type, parameters, range, probe and calibration requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-TOC5000RN | BK-TOC5000RD |
|---|---|---|
| Measurement Method | High temperature catalytic combustion | High temperature catalytic combustion |
| Detector | NDIR | NDIR |
| Analysis Parameter | TC, TIC, TOC, NPOC | TC, TIC, TOC, NPOC |
| Control Mode | PC software controlled | PC software controlled |
| Gas Requirement | Oxygen, purity≥99.995% | Oxygen, purity≥99.995% |
| Sample Type | Liquid sample(AS-W20 is optional) Solid sample(AS-S200 is a mandatory option.) | Liquid sample(AS-W20 is optional) Solid sample(AS-S200 is a mandatory option.) |
| Measurement Range | 0~1000mg/L, can extend to 0~100,000mg/L(Manually dilution) | 0~1000mg/l, can extend to 0~100,000mg/L(Automatically dilution) |
| Limit of Detection | TC: 50μg/L IC: 20μg/L | TC: 50μg/L IC: 20μg/L |
| Measuring Time | TC: around 4min IC: around 3min | TC: around 4min IC: around 3min |
| Max. Permissible Error | TOC: ±5% IC: ±4% | TOC: ±5% IC: ±4% |
| Repeatability | ≤3% | ≤3% |
| Injection Volume | TC: 100~500μl IC: 100~2000μl | TC: 100~500μl IC: 100~2000μl |
| Optional Accessories | Autosampler for liquid sample or solid sample Enhanced halogen removal device Enhanced halogen removal device-Metal wire mesh | Autosampler for liquid sample or solid sample Enhanced halogen removal device Enhanced halogen removal device-Metal wire mesh |
| Power Supply | AC220V±10%, 50/60Hz(Standard); 110V±10%, 50/60Hz(Optional) | AC220V±10%, 50/60Hz(Standard); 110V±10%, 50/60Hz(Optional) |
| Consumption | 700W | 700W |
| Package Size(W*D*H) | Main Machine: 780*710*610mm Accessories: 710*230*600mm | Main Machine: 780*710*610mm Accessories: 710*230*600mm |
| Gross Weight | Main Machine: 59kg Accessories: 7kg | Main Machine: 63kg Accessories: 8kg |
Manufacturer catalogue checked 2026-09-28.
