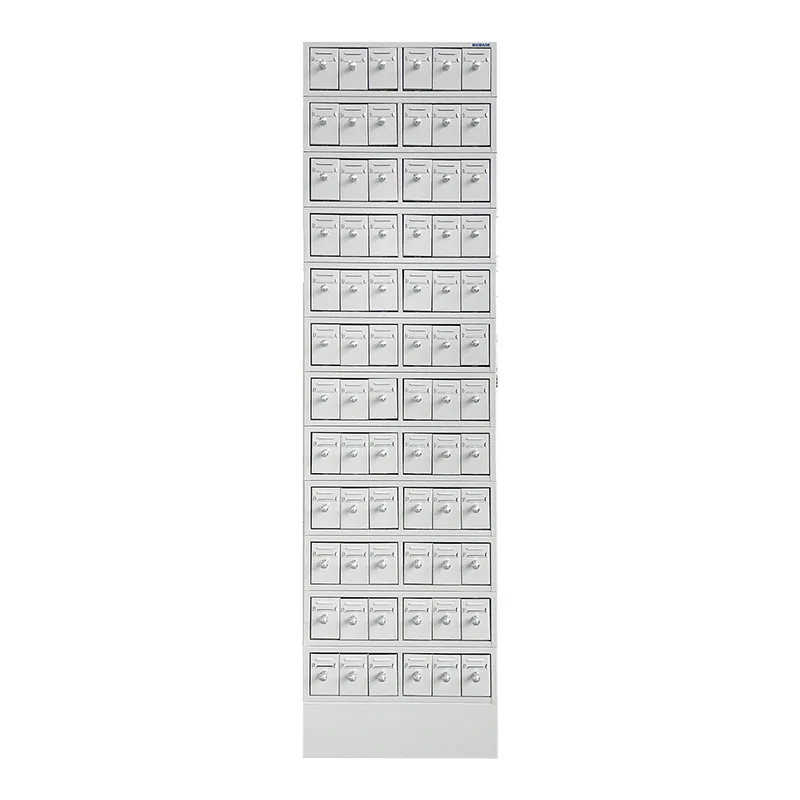

BIOBASE Slides Cabinet/Paraffin Block Cabinet/Slide Storage Cabinet/Slide & Paraffin Block Cabinet
Brand: BIOBASE | Category: Medical Equipment
BIOBASE Slides Cabinet/Paraffin Block Cabinet/Slide Storage Cabinet/Slide & Paraffin Block Cabinet is listed in VVON's histology & pathology equipment range for Bangladesh. Published models: BKC-E1-1, BKC-E2-1, BKC-E2-4, BKC-E3, BKC-E3-4, BKC-SP2. Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Name | Slides Cabinet | Paraffin Block Cabinet | Paraffin Block Cabinet |
|---|---|---|---|
| Model | BKC-E1-1 | BKC-E2-1 | BKC-E2-4 |
| Capacity | 72 drawers Loading: 64800pcs glass slides | 18 drawers Loading: 12000pcs paraffin block | 24drawers Loading: 16000pcs paraffin block |
| Material / Cabinet | Cold-rolled steel plate Surface treatment: degreasing and oil removal, surface conditioning, zinc-based phosphating, passivation, powder coating | Cold-rolled steel plate Surface treatment: degreasing and oil removal, surface conditioning, zinc-based phosphating, passivation, powder coating | Cold-rolled steel plate Surface treatment: degreasing and oil removal, surface conditioning, zinc-based phosphating, passivation, powder coating |
| Material / Drawer | Cold-rolled steel plate | Cold-rolled steel plate | Cold-rolled steel plate |
| Material / Slot | Special slot for metal die opening | Special slot for metal die opening | Special slot for metal die opening |
| Material / Marking Groove | Integral stamping forming | Integral stamping forming | Integral stamping forming |
| External Size(W*D*H) | 403*478*1625mm | 450*478*1295mm | 450*478*1625mm |
| Package Size(W*D*H) | 470*550*430mm*3 470*550*555mm*1 | 505*535*445mm*2 505*535*570mm*1 | 505*535*445mm*3 505*535*570mm*1 |
| Net Weight | 21.6kg*3 23.52kg*1 | 22.2kg*2 24.21kg*1 | 22.2kg*3 24.21kg*1 |
| Gross Weight | 23.26kg*3 25.18kg*1 | 23.38kg*2 25.39kg*1 | 23.38kg*3 25.39kg*1 |
| Name | Slide Storage Cabinet | Slide Storage Cabinet | Slide Storage Cabinet | Slide & Paraffin Block Cabinet |
|---|---|---|---|---|
| Model | BKC-E3 | BKC-E3-4 | ; | BKC-SP2 |
| Capacity | 18 drawers Loading: 9000pcs glass slides | 24 drawers Loading: 12000pcs glass slides | 24 drawers Loading: 12000pcs glass slides | Slide Cabinet: 14 drawers, 5600pcs glass slides; Paraffin Block Cabinet: 14 drawers, 900pcs paraffin block |
| Material / Cabinet | Cold-rolled steel plate Surface treatment: degreasing and oil removal, surface conditioning, zinc-based phosphating, passivation, powder coating | Cold-rolled steel plate Surface treatment: degreasing and oil removal, surface conditioning, zinc-based phosphating, passivation, powder coating | Cold-rolled steel plate Surface treatment: degreasing and oil removal, surface conditioning, zinc-based phosphating, passivation, powder coating | Cold-rolled steel plate Surface treatment: degreasing and oil removal, surface conditioning, zinc-based phosphating, passivation, powder coating |
| Material / Drawer | Cold-rolled steel plate | Cold-rolled steel plate | Cold-rolled steel plate | Cold-rolled steel plate |
| Material / Slot | Special slot for metal die opening | Special slot for metal die opening | Special slot for metal die opening | Special slot for metal die opening |
| Material / Marking Groove | Integral stamping forming | Integral stamping forming | Integral stamping forming | Integral stamping forming |
| External Size(W*D*H) | 450*478*1295mm | 450*478*1625mm | 450*478*1625mm | 485*480*334mm |
| Package Size(W*D*H) | 505*535*445mm*2 505*535*570mm*1 | 505*535*445mm*3 505*535*570mm*1 | 505*535*445mm*3 505*535*570mm*1 | 510*540*115mm*1 520*550*175mm*1; 495*490*30mm*1 495*490*85mm*1 ; |
| Net Weight | 20.5kg*2 22.51kg*1 | 20.5kg*3 22.51kg*1 | 20.5kg*3 22.51kg*1 | 9.2kg*1, 12.2kg*1 1.9kg*1, 1.5kg*1 |
| Gross Weight | 22.21kg*2 24.22kg*1 | 22.21kg*3 24.22kg*1 | 22.21kg*3 24.22kg*1 | 9.64kg*1, 13.14kg*1 2.21kg*1, 1.62kg*1 |
Manufacturer catalogue checked 2026-09-28.
