Brand: BIOBASE | Category: Scientific & Laboratory Equipment

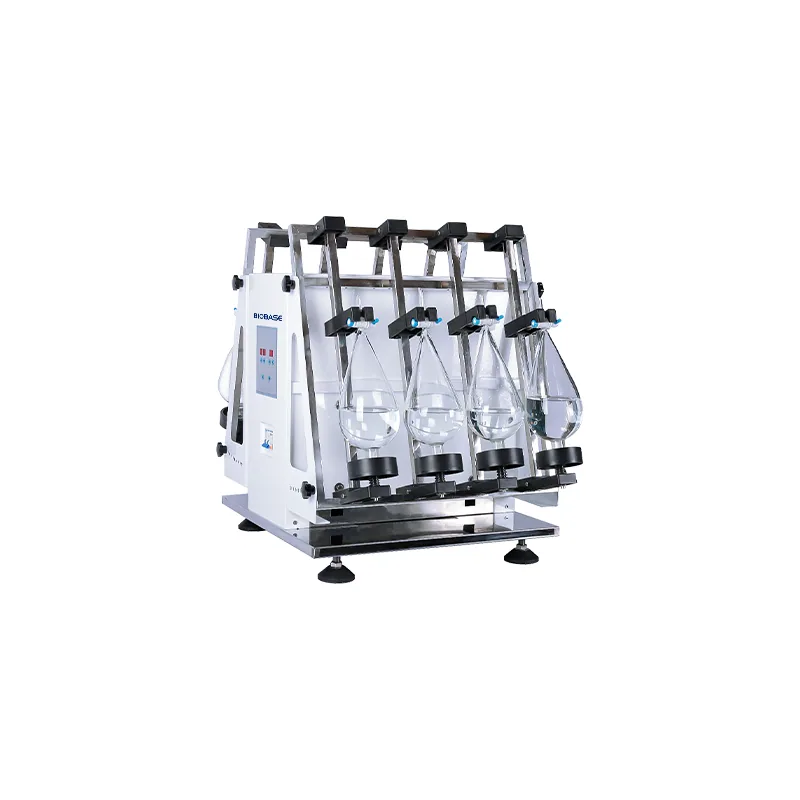

BIOBASE Separatory Funnel Shaker is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: BK-VS06, BK-VS08, BK-VS10. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-VS06 | BK-VS08 | BK-VS10 |
|---|---|---|---|
| Sample Capacity | 6pcs | 8pcs | 10pcs |
| Shaking Method | Vertical Shake(tilt angle 0~20° adjustable) | Vertical Shake(tilt angle 0~20° adjustable) | Vertical Shake(tilt angle 0~20° adjustable) |
| Shaking Amplitude | ≥40mm | ≥40mm | ≥40mm |
| Shaking Frequency | 100~300 times/min adjustable | 100~300 times/min adjustable | 100~300 times/min adjustable |
| Frequency Control | Infinitely variable speeds | Infinitely variable speeds | Infinitely variable speeds |
| Operation Mode | Continuous operation, interval operation, curve operation | Continuous operation, interval operation, curve operation | Continuous operation, interval operation, curve operation |
| Timing Range | Max 15 minutes(count down applied) | Max 15 minutes(count down applied) | Max 15 minutes(count down applied) |
| Applied Vessel | 50ml~2000ml separating funnel, 100ml and 250ml conical flask, 100ml measuring cylinder with stopper, 100ml colorimetric tube with stopper, 100ml volumetric flask with stopper, etc., no need to change the fixture | 50ml~2000ml separating funnel, 100ml and 250ml conical flask, 100ml measuring cylinder with stopper, 100ml colorimetric tube with stopper, 100ml volumetric flask with stopper, etc., no need to change the fixture | 50ml~2000ml separating funnel, 100ml and 250ml conical flask, 100ml measuring cylinder with stopper, 100ml colorimetric tube with stopper, 100ml volumetric flask with stopper, etc., no need to change the fixture |
| Extraction Efficiency | 95~110% | 95~110% | 95~110% |
| Rated Load | Bilateral symmetry 11kg | Bilateral symmetry 11kg | Bilateral symmetry 11kg |
| Power Supply | AC220±10%, 50/60Hz(Standard); 110V, 60Hz(Optional, External transformer) | AC220±10%, 50/60Hz(Standard); 110V, 60Hz(Optional, External transformer) | AC220±10%, 50/60Hz(Standard); 110V, 60Hz(Optional, External transformer) |
| Packing Size | 810*710*1080mm | 810*710*1080mm | 810*710*1080mm |
| Net Weight | 120kg | 122kg | 124kg |
| Gross Weight | 148kg | 152kg | 154kg |
Manufacturer catalogue checked 2026-09-28.
