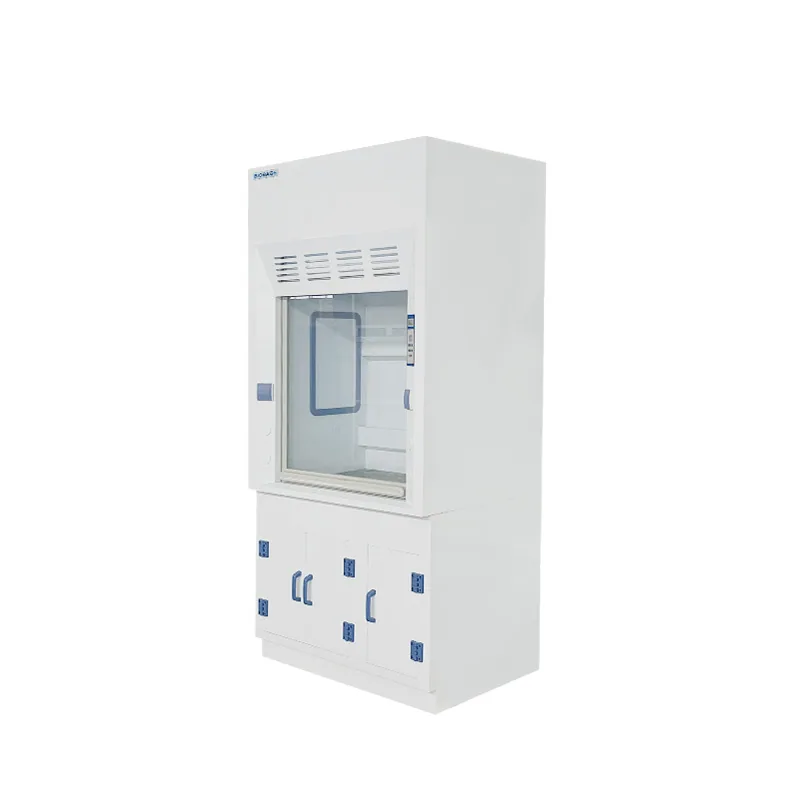

BIOBASE PP Spray Fume Hood FH1000(PL) FH1200(PL) FH1500(PL) FH1800(PL)
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE PP Spray Fume Hood FH1000(PL) FH1200(PL) FH1500(PL) FH1800(PL) is listed in VVON's fume hoods & laboratory ventilation range for Bangladesh. Published models: FH1000(PL), FH1200(PL), FH1500(PL), FH1800(PL). Check chemical compatibility, extraction method, working space and ducting needs. For a quotation, send the chemicals, process, hood width, extraction route and room utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | FH1000(PL) | FH1200(PL) | FH1500(PL) | FH1800(PL) |
|---|---|---|---|---|
| External Size(W*D*H) | 1047*800*2675mm | 1247*800*2675mm | 1547*800*2675mm | 1847*800*2675mm |
| Internal Size(W*D*H) | 787*470*700mm | 987*470*700mm | 1287*470*700mm | 1587*470*700mm |
| Work Surface Height | 820mm | 820mm | 820mm | 820mm |
| Max. Opening | 740mm | 740mm | 740mm | 740mm |
| Material | Main Body: Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion Work Table: Solid core physical and chemical board | Main Body: Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion Work Table: Solid core physical and chemical board | Main Body: Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion Work Table: Solid core physical and chemical board | Main Body: Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion Work Table: Solid core physical and chemical board |
| Airflow Velocity | 0.3~0.8m/s | 0.3~0.8m/s | 0.3~0.8m/s | 0.3~0.8m/s |
| Exhaust volume | 560m³/h | 700m³/h | 920m³/h | 1130m³/h |
| Consumption | 400W+370W(Pump) | 400W+370W(Pump) | 500W+370W(Pump) | 700W+370W(Pump) |
| Waterproof Socket | Two, total load≤500W | Two, total load≤500W | Two, total load≤500W | Two, total load≤500W |
| Noise | ≤68dB(A) | ≤68dB(A) | ≤68dB(A) | ≤68dB(A) |
| Illumination | ≥400lx | ≥400lx | ≥400lx | ≥400lx |
| LED Lamp | 24W | 24W | 30W | 38W |
| Blower | Built-in PP centrifugal blower(2 blowers for FH1800(P) only); Speed adjustable; 300W | Built-in PP centrifugal blower(2 blowers for FH1800(P) only); Speed adjustable; 300W | Built-in PP centrifugal blower(2 blowers for FH1800(P) only); Speed adjustable; 300W | Built-in PP centrifugal blower(2 blowers for FH1800(P) only); Speed adjustable; 300W |
| Front Window | Resistant to acid and alkali, Manual, 5mm toughened glass, height adjustable | Resistant to acid and alkali, Manual, 5mm toughened glass, height adjustable | Resistant to acid and alkali, Manual, 5mm toughened glass, height adjustable | Resistant to acid and alkali, Manual, 5mm toughened glass, height adjustable |
| Operators | 1~2 | 1~2 | 2~3 | 2~3 |
| Standard Accessory | LED light; Work table: Chemical resistant phenolic resin; 5 meters PVC duct (2 pcs of 5 meters PVC dust for FH1800(P) only), Diameter: 250mm; Pipe strap*2(4pcs for FH1800(P) only); Base cabinet; PP centrifugal blower*1(2 for FH1800(P) only) Waterproof socket*2; Water tap(PP); Gas tap(PP); Water sink | LED light; Work table: Chemical resistant phenolic resin; 5 meters PVC duct (2 pcs of 5 meters PVC dust for FH1800(P) only), Diameter: 250mm; Pipe strap*2(4pcs for FH1800(P) only); Base cabinet; PP centrifugal blower*1(2 for FH1800(P) only) Waterproof socket*2; Water tap(PP); Gas tap(PP); Water sink | LED light; Work table: Chemical resistant phenolic resin; 5 meters PVC duct (2 pcs of 5 meters PVC dust for FH1800(P) only), Diameter: 250mm; Pipe strap*2(4pcs for FH1800(P) only); Base cabinet; PP centrifugal blower*1(2 for FH1800(P) only) Waterproof socket*2; Water tap(PP); Gas tap(PP); Water sink | LED light; Work table: Chemical resistant phenolic resin; 5 meters PVC duct (2 pcs of 5 meters PVC dust for FH1800(P) only), Diameter: 250mm; Pipe strap*2(4pcs for FH1800(P) only); Base cabinet; PP centrifugal blower*1(2 for FH1800(P) only) Waterproof socket*2; Water tap(PP); Gas tap(PP); Water sink |
| Optional Accessory | PP work table, epoxy resin board or ceramic board; UV lamp; Electric glass door | PP work table, epoxy resin board or ceramic board; UV lamp; Electric glass door | PP work table, epoxy resin board or ceramic board; UV lamp; Electric glass door | PP work table, epoxy resin board or ceramic board; UV lamp; Electric glass door |
| Power Supply | 220V, 50/60Hz(Standard); 110V, 60Hz(Optional) | 220V, 50/60Hz(Standard); 110V, 60Hz(Optional) | 220V, 50/60Hz(Standard); 110V, 60Hz(Optional) | 220V, 50/60Hz(Standard); 110V, 60Hz(Optional) |
| Package Size(W*D*H) | Main Body: 1188*938*1690mm Base Cabinet: 1188*888*1000mm | Main Body: 1388*938*1690mm Base Cabinet: 1388*888*1000mm | Main Body: 1688*938*1690mm Base Cabinet: 1688*888*1000mm | Main Body: 1988*938*1690mm Base Cabinet: 1988*888*1000mm |
| Gross Weight | 137kg; 92kg | 155kg; 102kg | 180kg; 118kg | 206kg 140kg |
Manufacturer catalogue checked 2026-09-28.
