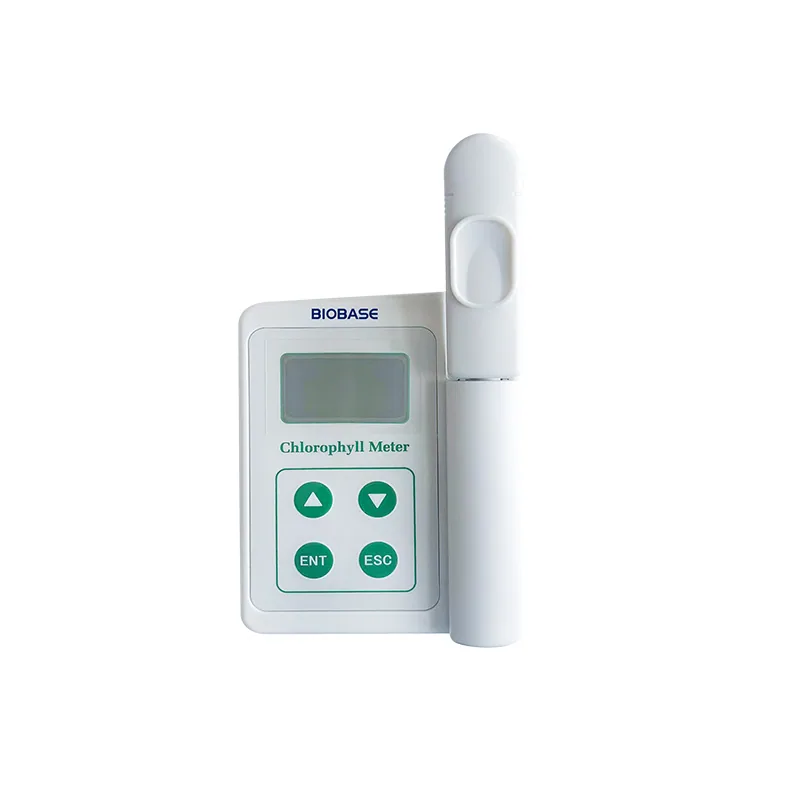

BIOBASE Portable Chlorophyll Meter PCM-A PCM-B2
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Portable Chlorophyll Meter PCM-A PCM-B2 is listed in VVON's food agriculture & feed analysis range for Bangladesh. Published models: PCM-A, PCM-B2. Match the sample matrix, analytical method, preparation and daily workload. For a quotation, send the sample matrix, target measurement, method and daily workload. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | PCM-A | PCM-B2 |
|---|---|---|
| Measurement Indexes | Chlorophyll | Chlorophyll, leaf temperature, nitrogen ; |
| Measuring Area | 10mm | 10mm |
| Measuring Mode | 2-wavelength concentration difference of optical methods | 2-wavelength concentration difference of optical methods |
| Sensors | Silicon semiconductor photodiode | Silicon semiconductor photodiode |
| Display Mode | Measuring value: 3 digits liquid crystal display Measuring times: 2 digits liquid crystal display | Measuring value: 3 digits liquid crystal display Measuring times: 2 digits liquid crystal display |
| Min Measuring Interval | < 2s | < 5s |
| Chlorophyll Range | 0.0~99.9 SPAD | 0.0~99.9 SPAD |
| Chlorophyll Accuracy | ±1.0SPAD | ±1SPAD |
| Nitrogen Range | / | Full range |
| Nitrogen Accuracy | / | ±5% |
| Leaf Temperature Range | / | 0~60°C |
| Leaf Temperature Accuracy | / | ±1°C |
| Repeat | ±0.3SPAD | ±0.3SPAD |
| Operating and Storage Environment | 0℃~50℃, 85% relative humidity | 0℃~50℃, 85% relative humidity |
| Power | 2200mAh | 2200mAh |
| Battery Life | Can maintain more than 20000 operations | Can maintain more than 20000 operations |
| Data Capacity | 2GB, SD card | 2GB, SD card |
| Packing List(W*D*H) | 300*250*150mm | 300*250*150mm |
| Gross Weight | 1.4kg | 1.5kg |
Manufacturer catalogue checked 2026-09-28.
