Brand: BIOBASE | Category: Medical Equipment

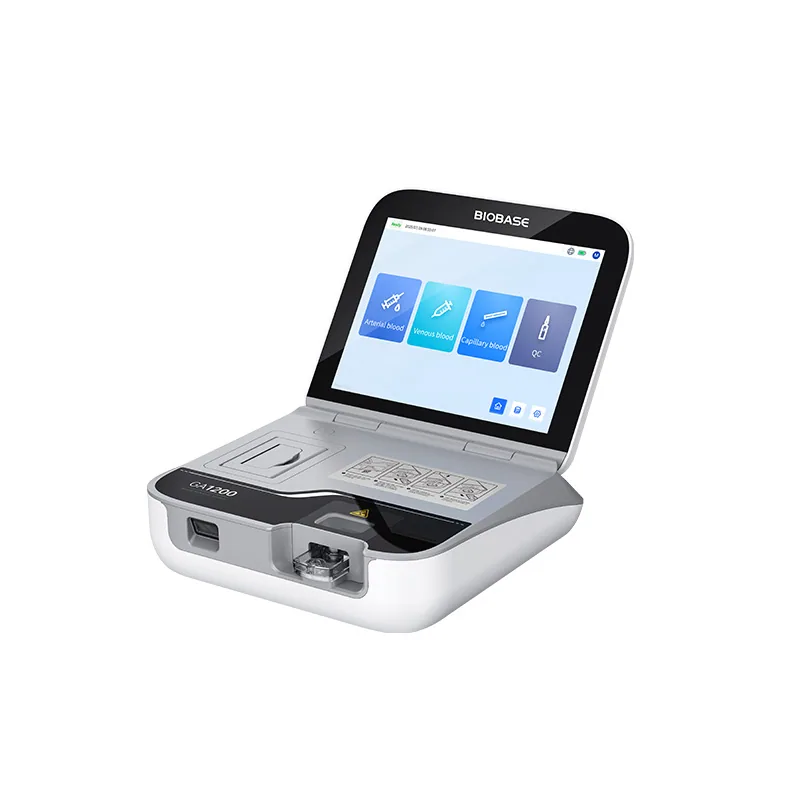

BIOBASE Portable Blood Gas and Chemistry Analyzer is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: GA1200. Published details include Sample Volume: Sample consumption volume less than 100μL，minimum 60μL; Storage Capacity: 100,000 tests. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | GA1200 |
|---|---|
| Throughput | Results in 60 seconds after sample aspiration |
| Sample Volume | Sample consumption volume less than 100μL，minimum 60μL |
| Display | 9.7 inches display |
| Battery | Built-in lithium battery supports 8.5-hour standby or 80 continuous tests |
| Barcode Scanning | Built-in barcode scanning module, external barcode scanner also supported |
| Interface | 4 USB ports, 1 Ethernet port |
| Storage Capacity | 100,000 tests |
| Communication Link | Bidirectional connectivity with data management systems such as LIS/HIS |
| Printer | Built-in thermal printer, supports external printer connection |
| Operation Environment | 10~31℃ |
| Power Supply | AC100~240V, 50/60Hz |
| Product Size(W*D*H) | 267*250*83mm |
| Net Weight | 3kg |
| Packing Size(W*D*H) | 420*410*270mm |
| Gross Weight | 5kg |
| Parameters | Measuring range | Unit |
|---|---|---|
| pH | 6.5-8.0 | - |
| pCO2 | 5-130 | mmHg |
| pO2 | 10-700 | mmHg |
| Na+ | 100-180 | mmol/L |
| K+ | 1.5-9.0 | mmol/L |
| Ca2+ | 0.25-2.5 | mmol/L |
| Cl – | 65-160 | mmol/L |
| Glu | 1.1-39 | mmol/L |
| Lac | 0.3-20.0 | mmol/L |
| Hct | 10-75 | %PCV |
| BUN | 3-140 | mg/dL |
| Crea | 0.2-20.0 | mg/dL |
| 31 calculated parameters: cH+, cH+ (T), pH(T), pCO2(T), pO2(T), HCO3- act, HCO3-std, BB(B), BE(B), BE(ecf), ctCO2, Ca++(7.4), sO2(est), AnGap, tHb(est), pO2(A-a), pO2(A-a) (T), pO2(a/A), pO2(a/A) (T), RI, RI (T), pO2/FIO2, pO2(T)/FIO2, PAO2, pO2(A,T), CaO2, ctCO2(P), pH(st), mOsm, BUN/Cr, GFR ; | 31 calculated parameters: cH+, cH+ (T), pH(T), pCO2(T), pO2(T), HCO3- act, HCO3-std, BB(B), BE(B), BE(ecf), ctCO2, Ca++(7.4), sO2(est), AnGap, tHb(est), pO2(A-a), pO2(A-a) (T), pO2(a/A), pO2(a/A) (T), RI, RI (T), pO2/FIO2, pO2(T)/FIO2, PAO2, pO2(A,T), CaO2, ctCO2(P), pH(st), mOsm, BUN/Cr, GFR ; | 31 calculated parameters: cH+, cH+ (T), pH(T), pCO2(T), pO2(T), HCO3- act, HCO3-std, BB(B), BE(B), BE(ecf), ctCO2, Ca++(7.4), sO2(est), AnGap, tHb(est), pO2(A-a), pO2(A-a) (T), pO2(a/A), pO2(a/A) (T), RI, RI (T), pO2/FIO2, pO2(T)/FIO2, PAO2, pO2(A,T), CaO2, ctCO2(P), pH(st), mOsm, BUN/Cr, GFR ; |
| NO. | Cartridge Model | Test Item | Specification |
|---|---|---|---|
| 1 | GA-3 | pH, pCO2, pO2 | 25 tests/kit |
| 2 | GA-4L | pH, pCO2, pO2, Lac | 25 tests/kit |
| 3 | GA-4H | PH,pO2,pCO2,Hct | 25 tests/kit |
| 4 | GA-4E | Na+,K+,Ca2+,Cl- | 25 tests/kit |
| 5 | GA-5 | PH,pO2,pCO2,Hct,Lac | 25 tests/kit |
| 6 | GA-6 | PH,pO2,pCO2,Hct,Lac,Glu | 25 tests/kit |
| 7 | GA-6E | pH,Hct,Na+,K+,Ca2+,Cl- | 25 tests/kit |
| 8 | GA-8 | pH,pO2,pCO2,Hct,Na+, K+,Ca2+,Cl- | 25 tests/kit |
| 9 | GA-9 | pH,pO2,pCO2,Hct,Na+, K+,Ca2+,Cl-,Lac | 25 tests/kit |
| 10 | GA-10 | pH,pO2,pCO2,Hct,Na+,K+,Ca2+,Cl-,Lac,Glu | 25 tests/kit |
| 11 | GA-12 | pH, pO2, pCO2, Hct, Na+, K+, Ca2+, Cl-, Lac, Glu, Crea, Bun | 25 tests/kit |
| Cartridge Specification | Cartridge Specification | Cartridge Specification | Cartridge Specification |
| Storage | Storage | Storage at room temperature 15~25℃ or 2~8°C | Storage at room temperature 15~25℃ or 2~8°C |
| Shelf Life | Shelf Life | Stored at room temp for 6 months, store at 2-8°C for 9-month shelf life | Stored at room temp for 6 months, store at 2-8°C for 9-month shelf life |
| Consumables | Consumables | No consumables except integrated all-in-one cartridge; no need for additional electrode, electrode membrane, or electrode card replacement | No consumables except integrated all-in-one cartridge; no need for additional electrode, electrode membrane, or electrode card replacement |
Manufacturer catalogue checked 2026-09-28.
