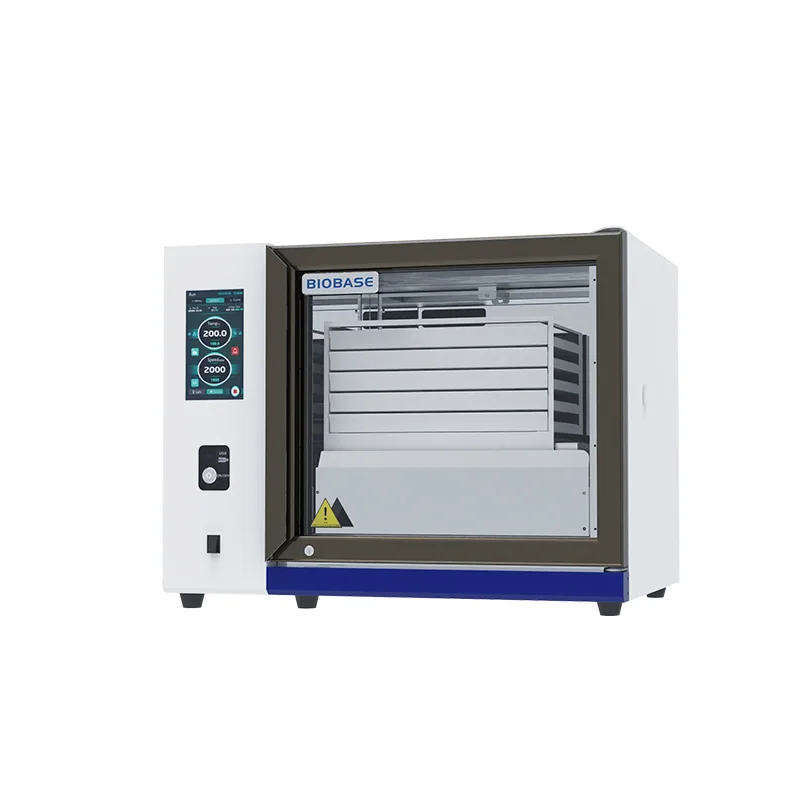

BIOBASE Platelet incubator BJPX-SP05 BJPX-SP08 BJPX-SP10 BJPX-SP18 BJPX-SP36
Brand: BIOBASE | Category: Medical Equipment
BIOBASE Platelet incubator BJPX-SP05 BJPX-SP08 BJPX-SP10 BJPX-SP18 BJPX-SP36 is listed in VVON's blood bank & transfusion equipment range for Bangladesh. Published models: BJPX-SP05, BJPX-SP08, BJPX-SP10, BJPX-SP18, BJPX-SP36. Check component type, temperature requirements, monitoring and processing capacity. For a quotation, send the blood-component type, capacity, temperature monitoring and backup requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BJPX-SP05 | BJPX-SP08 | BJPX-SP10 | BJPX-SP18 | BJPX-SP36 |
|---|---|---|---|---|---|
| Display | 7-inch LCD touch screen | 7-inch LCD touch screen | 7-inch LCD touch screen | 7-inch LCD touch screen | 7-inch LCD touch screen |
| Temperature Control Range | 22.0±2.0℃ | 22.0±2.0℃ | 22.0±2.0℃ | 22.0±2.0℃ | 22.0±2.0℃ |
| Temperature Display Resolution | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ |
| Temperature Fluctuation | ±1.0℃ | ±1.0℃ | ±1.0℃ | ±1.0℃ | ±1.0℃ |
| Temperature Uniformity | ±2.0℃ | ±2.0℃ | ±2.0℃ | ±2.0℃ | ±2.0℃ |
| Mode of Oscillation | Continuous left and right reciprocation, horizontal oscillation | Continuous left and right reciprocation, horizontal oscillation | Continuous left and right reciprocation, horizontal oscillation | Continuous left and right reciprocation, horizontal oscillation | Continuous left and right reciprocation, horizontal oscillation |
| Refrigerant | R134a, CFC free | R134a, CFC free | R134a, CFC free | R134a, CFC free | R134a, CFC free |
| Defrost | Automatic defrost | Automatic defrost | Automatic defrost | Automatic defrost | Automatic defrost |
| Alarm | Ultra-high and ultra-low temperature alarm, Oscillation device(motor) failure, Long-term door open alarm | Ultra-high and ultra-low temperature alarm, Oscillation device(motor) failure, Long-term door open alarm | Ultra-high and ultra-low temperature alarm, Oscillation device(motor) failure, Long-term door open alarm | Ultra-high and ultra-low temperature alarm, Oscillation device(motor) failure, Long-term door open alarm | Ultra-high and ultra-low temperature alarm, Oscillation device(motor) failure, Long-term door open alarm |
| Oscillation Frequency | 60±5 times/min | 60±5 times/min | 60±5 times/min | 60±5 times/min | 60±5 times/min |
| Oscillation Amplitude | 50±5mm | 50±5mm | 50±5mm | 50±5mm | 50±5mm |
| Ambient Temperature | 5~35℃ | 5~35℃ | 5~35℃ | 5~35℃ | 5~35℃ |
| Bags(200ml) | 1~10 | 1~16 | 1~20 | 1~36 | 1~72 |
| Material | External Material: Cold plate thermal spraying; Internal Material: 304 stainless steel | External Material: Cold plate thermal spraying; Internal Material: 304 stainless steel | External Material: Cold plate thermal spraying; Internal Material: 304 stainless steel | External Material: Cold plate thermal spraying; Internal Material: 304 stainless steel | External Material: Cold plate thermal spraying; Internal Material: 304 stainless steel |
| Consumption | 1200W | 950W | 1300W | 950W | 1500W |
| Power Supply | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer) | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer) |
| Standard Accessory | USB interface, LED lamp, UV lamp | USB interface, LED lamp, UV lamp | USB interface, LED lamp, UV lamp | USB interface, LED lamp, UV lamp | USB interface, LED lamp, UV lamp |
| Optional Accessory | Printer | Printer | Printer | Printer | Printer |
| Internal Size(W*D*H) | 500*310*460mm | 485*310*569mm | 498*450*578mm | 500*337*970mm | 1018*343*895mm |
| External Size(W*D*H) | 832*610*660mm | 632*600*1225mm | 645*730*1225mm | 632*620*1600mm | 1140*612*1600mm |
| Package Size(W*D*H) | 930*710*810mm | 740*853*1360mm | 740*853*1375mm | 726*706*1755mm | 1235*706*1755mm |
| Net Weight | 80kg | 110kg | 138kg | 135kg | 215kg |
| Gross Weight | 95kg | 132kg | 160kg | 160kg | 255kg |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
