Brand: BIOBASE | Category: Scientific & Laboratory Equipment

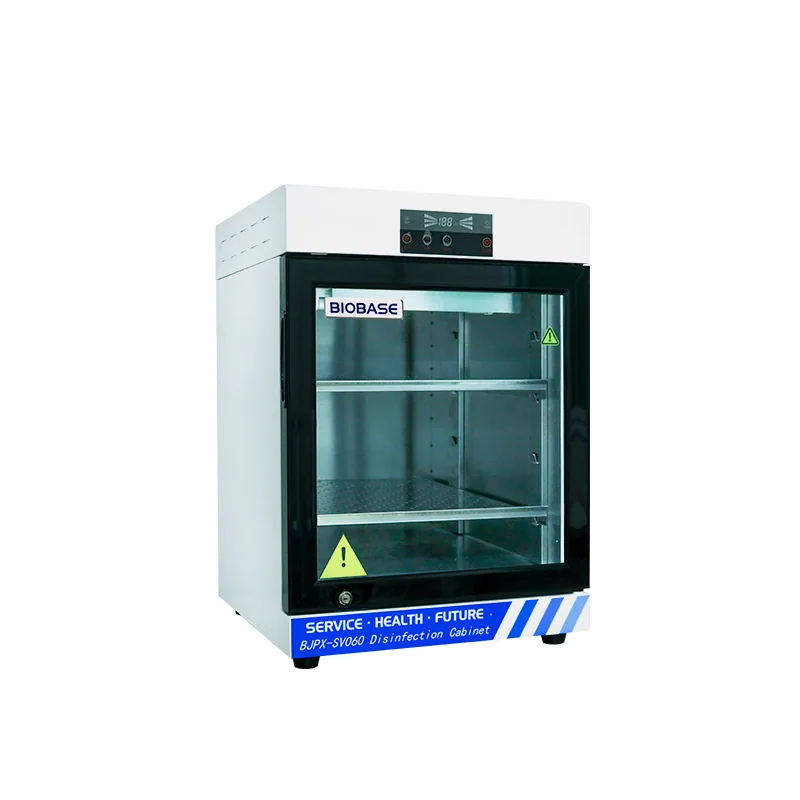

BIOBASE Ozone UV Sterilization Cabinet BJPX-SVO60 BJPX-SVO80 is listed in VVON's autoclaves & sterilisation equipment range for Bangladesh. Published models: BJPX-SVO60, BJPX-SVO80. Match chamber size, load type, cycle requirements and available utilities. For a quotation, send the load type, chamber capacity, cycle requirements and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BJPX-SVO60 | BJPX-SVO80 |
|---|---|---|
| Capacity | 70L | 90L |
| Sterilization Method | Ozone+UV lamp | Ozone+UV lamp |
| Ozone Concentration | 620mg/m^(3) | 620mg/m^(3) |
| Ozone Leakage | ≤0.1mg/m^(3) | ≤0.1mg/m^(3) |
| Indicator Bacteria | Staphylococcus aureus, candida albicans, pseudomonas aeruginosa, natural bacteria | Staphylococcus aureus, candida albicans, pseudomonas aeruginosa, natural bacteria |
| Index | Each point of the log kill value should be＞3.00 | Each point of the log kill value should be＞3.00 |
| Control System | PID | PID |
| Working Condition | (a) Ambient temperature range 5~40℃ (b) Relative humidity is not more than 85% (c) Atmospheric pressure 70Kpa~106Kpa (d) No flammable, corrosive gas or conductive dust around | (a) Ambient temperature range 5~40℃ (b) Relative humidity is not more than 85% (c) Atmospheric pressure 70Kpa~106Kpa (d) No flammable, corrosive gas or conductive dust around |
| Material | Work Zone: 201 stainless steel, 1.0mm thick Main Body: Cold-rolled steel with coating | Work Zone: 201 stainless steel, 1.0mm thick Main Body: Cold-rolled steel with coating |
| Altitude | ＜2000m | ＜2000m |
| Shelf(W*L) | 386*394mm, standard 2pcs, can be optional | 478*394mm, standard 2pcs, can be optional |
| Standard Accessories | Shelf*2, UV lamp*1 | Shelf*2, UV lamp*1 |
| Consumption | 8W | 8W |
| Power Supply | AC220V, 50/60Hz (Standard); AC110V,50/60Hz (Optional, external transformer) | AC220V, 50/60Hz (Standard); AC110V,50/60Hz (Optional, external transformer) |
| Internal Size(W*D*H) | 398*398*452mm | 398*498*452mm |
| External Size(W*D*H) | 495*501*760mm | 495*601*760mm |
| Net Weight | 35kg | 40kg |
| Package Size(W*D*H) | 620*620*860mm | 726*620*860mm |
| Gross Weight | 50kg | 55kg |
Manufacturer catalogue checked 2026-09-28.
