Brand: BIOBASE | Category: Scientific & Laboratory Equipment

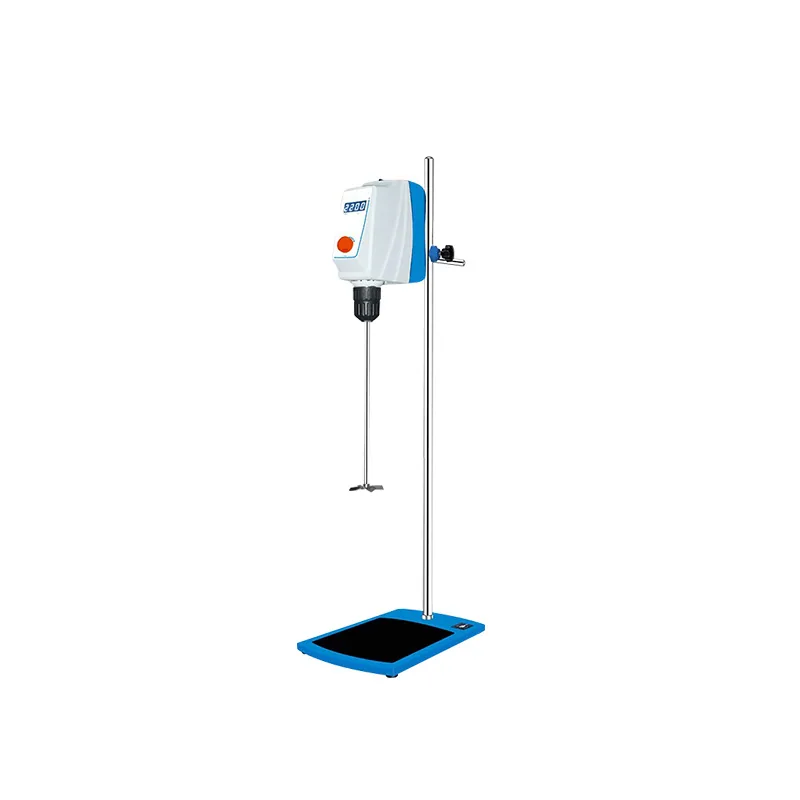

BIOBASE Overhead Stirrer OS40-H OS60-H OS100-H is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: OS40-H, OS60-H, OS100-H. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | OS40-H | OS60-H | OS100-H |
|---|---|---|---|
| Set No | 1003002002 | 1003003002 | 1003014005 |
| Input Voltage | 100~240 | 100~240 | 100~240 |
| Output Voltage(V) | 24 | 24 | 36 |
| Frequency(Hz) | 50~60 | 50~60 | 50~60 |
| Capacity(L) | 40 | 60 | 100 |
| Speed Range(rpm) | 30~2200 | 30~2200 | 30~1600 |
| Speed Display | LCD | LCD | LCD |
| Speed Accuracy(rpm) | ±1 | ±1 | ±1 |
| Adjust Mode | Coarse and fine tuning | Coarse and fine tuning | Coarse and fine tuning |
| Timer Range(min) | 1~9999 | 1~9999 | 1~9999 |
| Time Display | LCD | LCD | LCD |
| Max Torque(N.cm) | 60 | 80 | 100 |
| Max Viscosity(mpas) | 50000 | 80000 | 100000 |
| Input Power(W) | 120 | 160 | 400 |
| Output Power(W) | 100 | 150 | 200 |
| Protect Class | IP42 | IP42 | IP42 |
| Motor Protection | Display failure automatic stop | Display failure automatic stop | Display failure automatic stop |
| Overload Protection | Display failure automatic stop | Display failure automatic stop | Display failure automatic stop |
| Safety Protection | Chuck Protector+Anti-Slip Pad | Chuck Protector+Anti-Slip Pad | Chuck Protector+Anti-Slip Pad |
| Ambient Temperature(°C) | 5~40 | 5~40 | 5~40 |
| Ambient Humidity(%) | 80 | 80 | 80 |
| Package Size(mm) | 803*400*140 | 803*400*140 | 803*400*140 |
| Gross Weight(kg) | 12.5 | 12.5 | 13.1 |
| Remarks | 1003002002 OS40-H set includes: 1. OS40-H host 1003002001 2. Tablet stand set 20030130(single hole square fixed head) 3. Four-blade stainless steel mixing paddle 20030001 | 1003003002 OS60-H set includes: 1. OS60-H host 1003003002 2. Tablet stand set 20030130(single hole square fixed head) 3. Four-blade stainless steel mixing paddle 20030001 | 1003014005 OS100-H set includes: 1. OS100-H host 1003014001 2. Tablet stand set 20030130(single hole square fixed head) 3. Four-blade stainless steel mixing paddle 20030001 |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
