Brand: BIOBASE | Category: Scientific & Laboratory Equipment

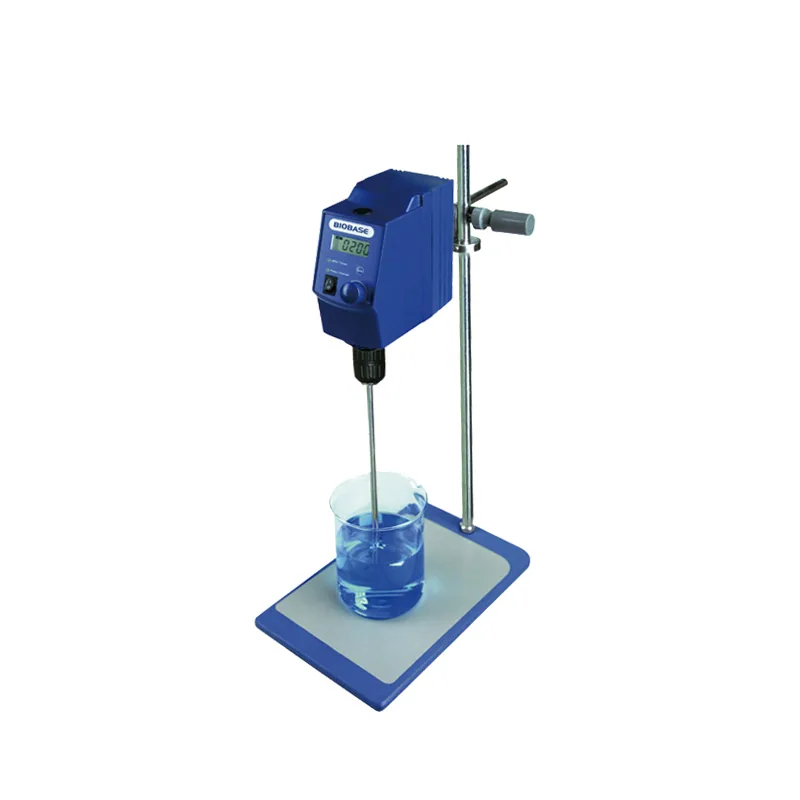

BIOBASE Overhead Stirrer is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: OS40-S, OS20-S, OS40-Pro, OS20-Pro. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | OS40-S | OS20-S | OS40-Pro | OS20-Pro | OS20-Pro |
|---|---|---|---|---|---|
| Item No. | 8013200200+18900071 | 8013100200+18900071 | 8013200100+18900071+18900605 | 8013100100+18900071+18900605 | 8013100100+18900071+18900605 |
| Max. Stirring Capacity | 40L | 20L | 40L | 20L | 20L |
| Motor Input | 120W | 60W | 120W | 60W | 60W |
| Motor Output | 100W | 50W | 100W | 50W | 50W |
| Speed Range | 50~2200rpm | 50~2200rpm | 50~2200rpm | 50~2200rpm | 50~2200rpm |
| Speed Control Accuracy | / | / | ±3rpm | ±3rpm | ±3rpm |
| Time settings range | / | / | 0-99h59min | 0-99h59min | 0-99h59min |
| Speed Display | LED | LED | LCD | LCD | LCD |
| Max. Torque | 60N·m | 40N·cm | 60N·cm | 60N·cm | 40N·cm |
| Torque Display | / | / | LCD | LCD | LCD |
| Overload Protection | Visual alarm, motor automatic stop | Visual alarm, motor automatic stop | Visual alarm, motor automatic stop | Visual alarm, motor automatic stop | Visual alarm, motor automatic stop |
| Overload Protection Display | / | / | LCD | LCD | LCD |
| Max. Viscosity | 50000mPa·s | 10000mPa·s | 50000mPa·s | 10000mPa·s | 10000mPa·s |
| Chuck Diameter Range | 0.5~10mm | 0.5~10mm | 0.5~10mm | 0.5~10mm | 0.5~10mm |
| Protection Type | IP21 | IP21 | IP21 | IP21 | IP21 |
| Working Environment | 5~40°C, 80%RH | 5~40°C, 80%RH | 5~40°C, 80%RH | 5~40°C, 80%RH | 5~40°C, 80%RH |
| Interface | / | / | RS232 | RS232 | RS232 |
| Power Consumption | 130W | 70W | 130W | 130W | 70W |
| Power Supply | AC110/220V±10%, 50/60Hz(Customizable) | AC110/220V±10%, 50/60Hz(Customizable) | AC110/220V±10%, 50/60Hz(Customizable) | AC110/220V±10%, 50/60Hz(Customizable) | AC110/220V±10%, 50/60Hz(Customizable) |
| Standard Accessory | Propeller stirrer 18900071 | Propeller stirrer 18900071 | Universal plate stand 18900605, Propeller stirrer 18900071 | Universal plate stand 18900605, Propeller stirrer 18900071 | Universal plate stand 18900605, Propeller stirrer 18900071 |
| External Size(W*D*H) | 83*186*220mm | 83*186*220mm | 83*186*220mm | 83*186*220mm | 83*186*220mm |
| Package Size(W*D*H) | Main body&stirrer: 480*380*450mm | Main body&stirrer: 480*380*450mm | Main body&stirrer: 480*380*450mm Universal plate stand: 800*360*130mm | Main body&stirrer: 480*380*450mm Universal plate stand: 800*360*130mm | Main body&stirrer: 480*380*450mm Universal plate stand: 800*360*130mm |
| Gross Weight | Main body&stirrer: 6kg | Main body&stirrer: 6kg | Main body&stirrer: 6kg Universal plate stand: 8kg | Main body&stirrer: 6kg Universal plate stand: 8kg | Main body&stirrer: 6kg Universal plate stand: 8kg |
Manufacturer catalogue checked 2026-09-28.
