Brand: BIOBASE | Category: Scientific & Laboratory Equipment

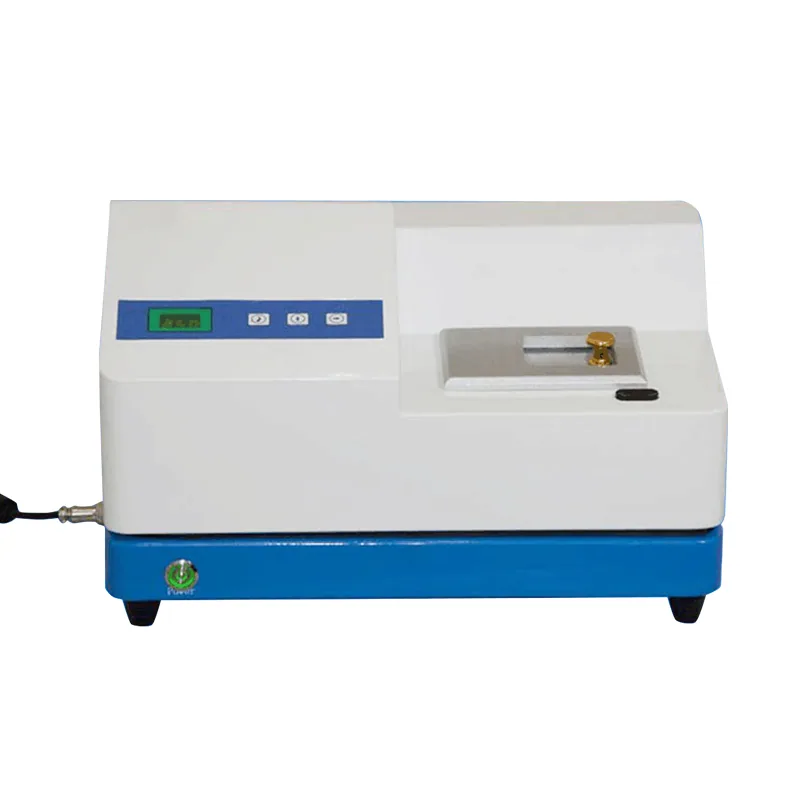

BIOBASE Nanoparticle Size Analyzer (Customized) is listed in VVON's particle size rheology & physical analysis range for Bangladesh. Published models: BPSA-N9. Published details include Temperature Range: 8~45°C(temperature accurate to 0.1°C). Match the material, property, measurement range and sample-preparation method. For a quotation, send the material, property to measure, measurement range and sample preparation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BPSA-N9 |
|---|---|
| Test Range | 1~10000nm(Related to the sample) |
| Concentration Range | 0.1mg/L~100mg/L |
| Accuracy Error | <1%(National standard sample average particle size) |
| Repeatability Error | <1%(National standard sample average particle size) |
| Laser | λ=532nm,LD pump laser(Unique with temperature control protection) |
| Detector | HAMAMATSU photomultiplier tube(PMT),Using single-mode polarization-maintaining fiber |
| Scattering Angle | 90° |
| Digital Correlator | High-speed photon correlator developed by ASlC, physical channel: 512. Equivalent channel:10000,baseline channel: 8. Sampling and delay time: 1us~200us dynamically adjustable Minimum resolution: 6ns |
| Sample Cell | 10mm*10mm, 4ml(With temperature control protection, with automatic induction sliding door) |
| Cell Placement Window | With automatic sensor sliding door |
| Data Processing | The best fitting cumulative analysis method and improved normalization algorithm can give the average particle size and particle size distribution curve |
| Software Function | One-click measurement, automatic optimization of measurement parameters, particle size distribution table, etc |
| Qutput Item | Average particle size, polydispersity coefficient, particle size distribution curve, particle size distribution table, etc. |
| Temperature Range | 8~45°C(temperature accurate to 0.1°C) |
| Temperature Display | Instrument real-time temperature display |
| Temperature Regulation | External direct temperature adjustment, no need to open the case |
| Test Speed | <1Min/time(excluding sample dispersion time) |
| Power Supply | AC100~260V, 50/60Hz, maximum power 80W |
| Use Environment | Temperature: 15~40℃, humidity 20~70%, no condensation |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
