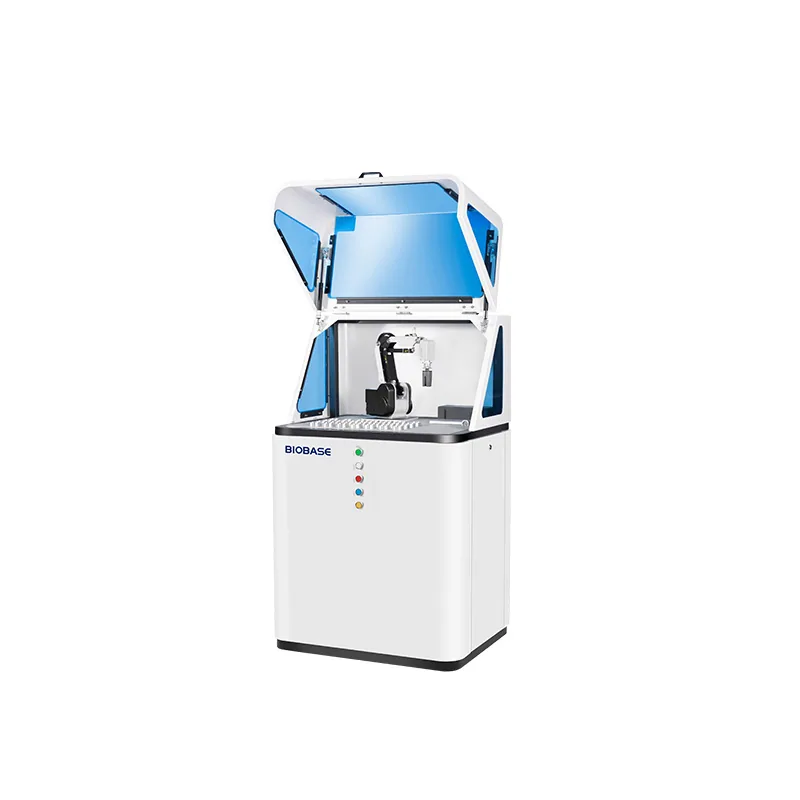

BIOBASE Multi Sample Spin Energy Dispersive X-ray Fluorescence Spectrometer
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Multi Sample Spin Energy Dispersive X-ray Fluorescence Spectrometer is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: BK-XRF6. Published details include Work Environment / Temperature Range: 5~30℃. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-XRF6 |
|---|---|
| Detectors / Typical Resolution | 123ev |
| Detectors / Output Count Rate | 1500KCPS |
| Detectors / Peak-to-back Ratio | ≥25000:1 |
| Detectors / Peak-to-tail Ratio | > 1800 |
| Detectors / Features of the Window | The ultra-thin window with 1μm carbon window increases the signal acquisition intensity of light elements. |
| Detectors / Processor | Original imported multi-channel data acquisition system |
| X-Ray Tube / High Voltage | 0-50Kv continuously adjustable |
| X-Ray Tube / Current | 0-4000uA continuously adjustable |
| X-Ray Tube / Power | 50W |
| X-Ray Tube / Stability | 0.2% after 8 hours |
| High Voltage Generator / Input Voltage | Ø24VDC |
| High Voltage Generator / Input Current | 4A |
| High Voltage Generator / Output Voltage | Ø50Kv, 0-4MA |
| High Voltage Generator / Maximum Power | 50W |
| High Voltage Generator / Stability | 8 hours 0.05% |
| Spectral Analysis System Control and Data Processing System | 16 bit analog-to-digital converter 24-inch display Brand computer 512G solid-state drive Multifunctional standard keyboard Laser printer |
| Power Supply | 220V±10% 50Hz |
| Work Environment / Temperature Range | 5~30℃ |
| Work Environment / Relative Humidity | ≤ 80% |
| Dimension / External Size(L*W*H) | 800*700*1400mm |
| Dimension / Net Weight | 150kg |
| Dimension / Package Size(L*W*H) ＆Gross Weight | Main Machine Box: 1070*870*1700mm, 200kg Accessory Box: 890*640*790mm, 70kg Power Supply Box: 630*490*850mm, 113kg |
Manufacturer catalogue checked 2026-09-28.
