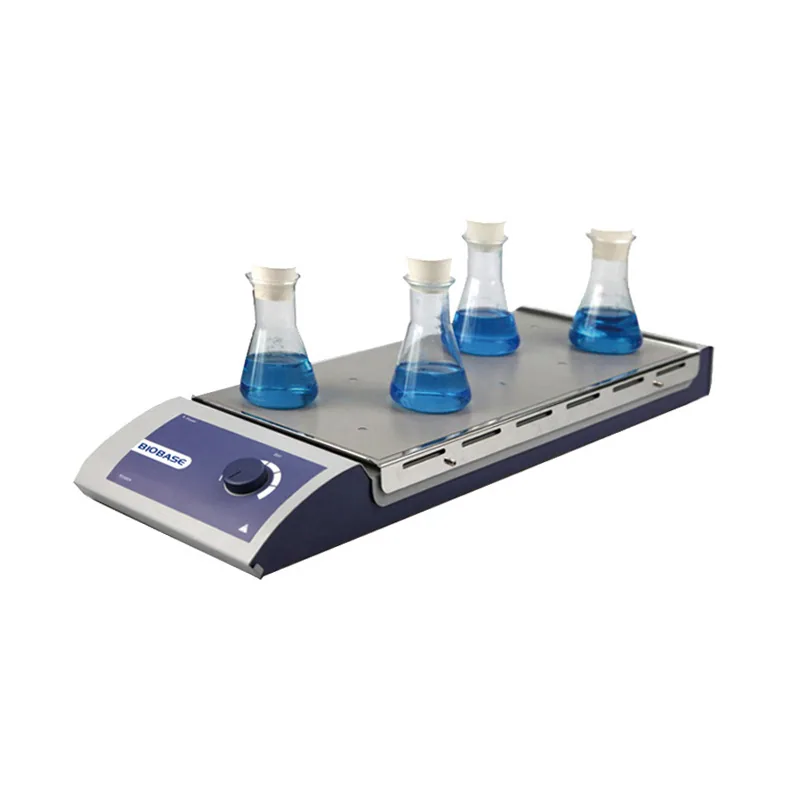

BIOBASE Multi-Position Magnetic Stirrer
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Multi-Position Magnetic Stirrer is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: MS-M-S10(8030140013), MS-H-S10(8030140000), 84-1(4 positions), 84-1(6 positions), 524G, H01-1D. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MS-M-S10(8030140013) | MS-H-S10(8030140000) | 84-1(4 positions) | 84-1(6 positions) | 524G | H01-1D |
|---|---|---|---|---|---|---|
| Work Plate Size | 180*450mm | 180*450mm | 290*280mm | 420*300mm | ∅145mm | ∅145mm |
| Work Plate Material | Stainless steel with silicone coating | Stainless steel covered with silicone cushion | Stainless steel | Stainless steel | Aluminum alloy | Stainless steel |
| Max. Stirring Capacity | 0.4L*10 | 0.4L*10 | 1.5L*4 | 1.5L*6 | 3L*4 | 3L*6 |
| Motor Type | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor |
| Speed Range | 0~1100rpm | 0~1100rpm | 0~1500rpm | 0~1500rpm | 0~1400rpm | 0~1500rpm |
| Digital Display | / | / | Speed | Speed | Speed, Temperature, Time | Speed, Temperature, Time |
| Control | Scale | Scale | Knob | Knob | Button | Knob |
| Heating Output | / | 470W | / | / | 4*600W | 6*360W |
| Heating Temp. Range | / | RT~120°C | / | / | RT~150°C | RT~150°C |
| Working Environment | 5~40°C, 80%RH | 5~40°C, 80%RH | 5~40°C, 80%RH | 5~40°C, 80%RH | 5~40°C, 80%RH | 5~40°C, 80%RH |
| Power Supply | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz | 220V, 50Hz | 220V, 50Hz | 220V, 50Hz | 220V, 50Hz |
| External Size(W*D*H) | 622*205*65mm | 182*622*65mm | 290*280*80mm | 420*300*80mm | 380*380*145mm | 1005*230*130mm |
| Package Size(W*D*H) | 700*420*270mm | 700*420*270mm | 540*350*180mm | 670*380*180mm | 520*520*240mm | 1130*400*270mm |
| Gross Weight | 7.5kg | 7.5kg | 8kg | 12kg | 15kg | 35kg |
Manufacturer catalogue checked 2026-09-28.
