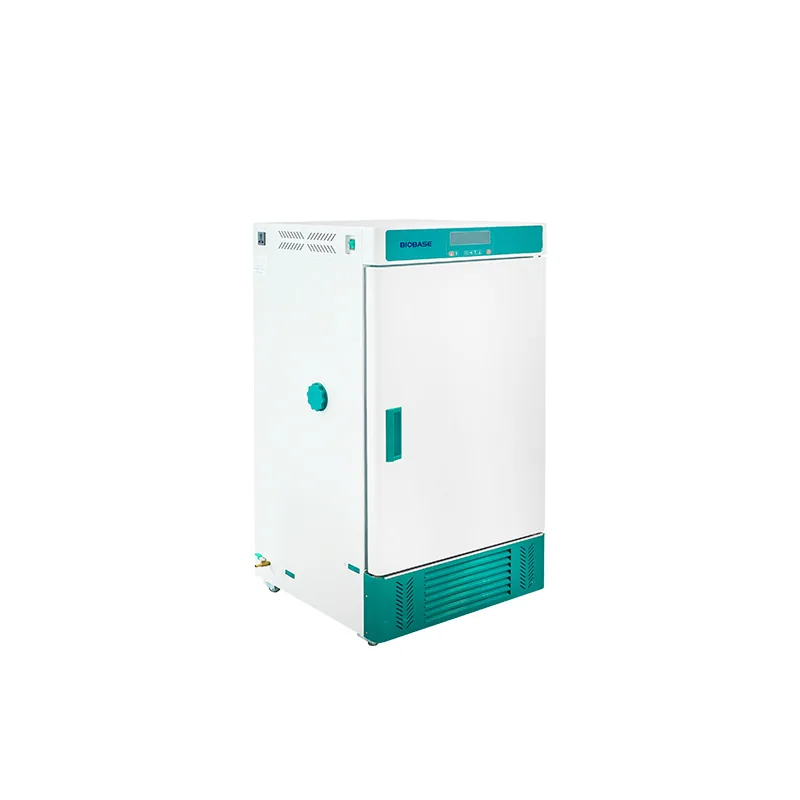

BIOBASE Mould Incubator BJPX-M70PF BJPX-M150PF BJPX-M250PF
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Mould Incubator BJPX-M70PF BJPX-M150PF BJPX-M250PF is listed in VVON's laboratory incubators & growth chambers range for Bangladesh. Published models: BJPX-M70PF, BJPX-M150PF, BJPX-M250PF. Compare chamber capacity and required temperature, atmosphere, humidity or agitation. For a quotation, send the application, working volume, temperature and atmosphere requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BJPX-M70PF | BJPX-M150PF | BJPX-M250PF |
|---|---|---|---|
| Cycle Mode | Forced convection | Forced convection | Forced convection |
| Temp. Range | No humidification: 0~65℃; Humidification: 10~65℃ | No humidification: 0~65℃; Humidification: 10~65℃ | No humidification: 0~65℃; Humidification: 10~65℃ |
| Temp. Resolution Ratio | 0.1℃ | 0.1℃ | 0.1℃ |
| Temp. Motion | High Temp.: ±0.5℃ Low Temp.: ±1℃ | High Temp.: ±0.5℃ Low Temp.: ±1℃ | High Temp.: ±0.5℃ Low Temp.: ±1℃ |
| Temp. Uniformity | ±1℃ | ±1℃ | ±1℃ |
| Humidity Range | 45%~95%RH | 45%~95%RH | 45%~95%RH |
| Humidity Stability | ±5%RH | ±5%RH | ±5%RH |
| Inner Chamber | Mirror stainless steel | Mirror stainless steel | Mirror stainless steel |
| Outer Shell | Cold rolling steel electrostatic spraying exterior | Cold rolling steel electrostatic spraying exterior | Cold rolling steel electrostatic spraying exterior |
| Insulation Layer | Polyurethane | Polyurethane | Polyurethane |
| Heater | Stainless steel heater | Stainless steel heater | Stainless steel heater |
| Consumption | 1.8KW | 2KW | 2.2KW |
| Compressor | Air cooled hermetic compressor | Air cooled hermetic compressor | Air cooled hermetic compressor |
| Cryogen | R134a | R134a | R134a |
| Defrost Structure | Automatic control intelligent defrosting | Automatic control intelligent defrosting | Automatic control intelligent defrosting |
| Humidifying Method | External | External | External |
| Test Hole | Plastic test hole Ф43mm | Plastic test hole Ф43mm | Plastic test hole Ф43mm |
| Sterilizing Lamp | Standard ozone-free type | Standard ozone-free type | Standard ozone-free type |
| Controlled External Power Supply | Universal socket(one) | Universal socket(one) | Universal socket(one) |
| Temp. Control Mode | 30 segment lcd program | 30 segment lcd program | 30 segment lcd program |
| Temp. Setting Mode | Touch button setting | Touch button setting | Touch button setting |
| Temp. Display Mode | Measuring temperature: LCD upper row Setting temperature: the lower row | Measuring temperature: LCD upper row Setting temperature: the lower row | Measuring temperature: LCD upper row Setting temperature: the lower row |
| Humidity Control Mode | Auto | Auto | Auto |
| Timer | 0~99.9h*30 segment(with timing wait function) | 0~99.9h*30 segment(with timing wait function) | 0~99.9h*30 segment(with timing wait function) |
| Operation Function | Fixed value operation, timing function, auto stop, program operation | Fixed value operation, timing function, auto stop, program operation | Fixed value operation, timing function, auto stop, program operation |
| Sensor | PT100 | PT100 | PT100 |
| Humidity Sensor | High precision anti-condensation | High precision anti-condensation | High precision anti-condensation |
| Additional Function | Deviation correction, Menu key lock Power failure parameter memory Additional character: UV light, loop self diagnosis | Deviation correction, Menu key lock Power failure parameter memory Additional character: UV light, loop self diagnosis | Deviation correction, Menu key lock Power failure parameter memory Additional character: UV light, loop self diagnosis |
| Safety Device | Over temperature alarm, over humidity alarm, water shortage alarm | Over temperature alarm, over humidity alarm, water shortage alarm | Over temperature alarm, over humidity alarm, water shortage alarm |
| Volume | 70L | 150L | 250L |
| Load Per Rack(kg) | 15 | 15 | 15 |
| Shell Number | 5 | 9 | 12 |
| Shell Space | 35mm | 35mm | 35mm |
| Supply(50/60Hz) Current Rating | AC220V/8.2A | AC220V/9.1A | AC220V/10A |
| Shell | 2 | 2 | 2 |
| Shelf Rack | 4 | 4 | 4 |
| Optional Accessories | Spare shell, Touche screen controller, RS485 interface USB interface and software, Printer, Recorder, Remote control, U-disk storage | Spare shell, Touche screen controller, RS485 interface USB interface and software, Printer, Recorder, Remote control, U-disk storage | Spare shell, Touche screen controller, RS485 interface USB interface and software, Printer, Recorder, Remote control, U-disk storage |
| Inner Chamber Size(W*L*H)(mm) | 415*350*500 | 490*400*750 | 500*515*950 |
| Exterior Size(W*L*H(mm) | 571*591*1051 | 646*641*1301 | 656*741*1501 |
| Packing Size(W*L*H(mm) | 680*676*1235 | 751*730*1490 | 761*830*1690 |
| Net Weight(kg) | 69 | 86 | 100 |
| Gross Weight(kg) | 92 | 114 | 139 |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
