Brand: BIOBASE | Category: Medical Equipment

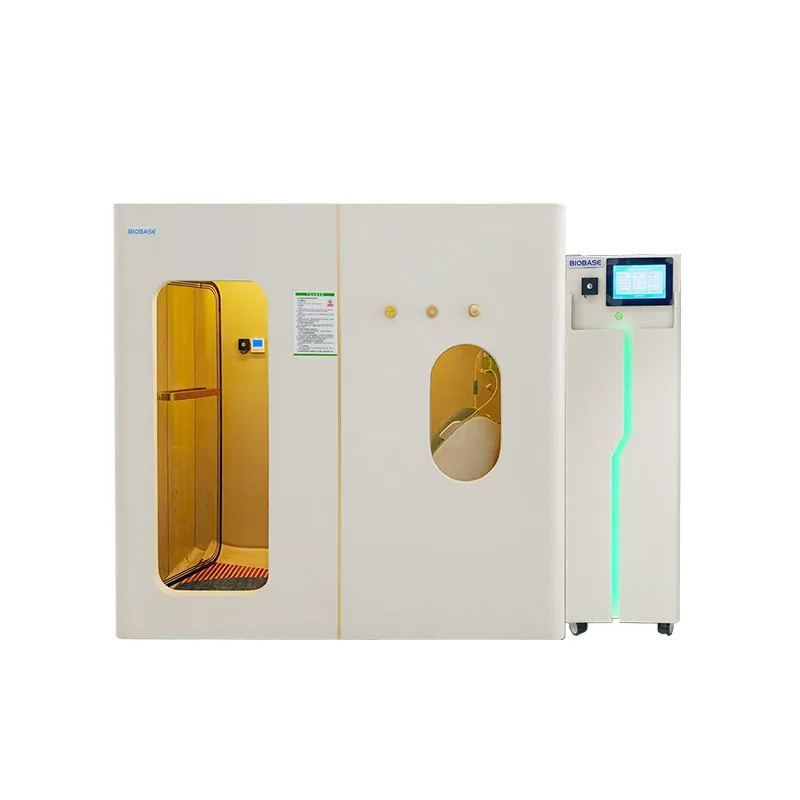

BIOBASE Micro Hyperbaric Oxygen Chamber is listed in VVON's rehabilitation & care equipment range for Bangladesh. Published models: BK-WGY-YT01, BK-WGY-YT02, ; BK-WGY-YT04;, BK-WGY-YT04-H. Match the care application, user requirements, dimensions and accessories. For a quotation, send the care application, user requirements, dimensions and quantity. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-WGY-YT01 | BK-WGY-YT02 | ; BK-WGY-YT04; | BK-WGY-YT04-H |
|---|---|---|---|---|
| Chamber Material | Q235B pressure vessel steel | Q235B pressure vessel steel | Q235B pressure vessel steel | Q235B pressure vessel steel |
| Pressurized Oxygen Generator Power | 1200W | 1900W | 1900W | 1900W |
| Chamber Working Pressure | 1.1~1.3ATM | 1.1~1.3ATM | 1.1~1.3ATM | 1.1~1.3ATM |
| Diffuse Oxygen Concentration | ≤25% | ≤25% | ≤25% | ≤25% |
| Main Unit Control | Intelligent UI touch control system (Internal and external dual control) | Intelligent UI touch control system (Internal and external dual control) | Intelligent UI touch control system (Internal and external dual control) | Intelligent UI touch control system (Internal and external dual control) |
| Oxygen Generation Function | Custom molecular sieves (SPA) | Custom molecular sieves (SPA) | Custom molecular sieves (SPA) | Custom molecular sieves (SPA) |
| Compressor Performance | Oil-free compressor air delivery system | Oil-free compressor air delivery system | Oil-free compressor air delivery system | Oil-free compressor air delivery system |
| Oxygen Concentration | 90±3% | 90±3% | 90±3% | 90±3% |
| Security Configuration | Automatic safety valve, manual two-way safety valve, solenoid valve | Automatic safety valve, manual two-way safety valve, solenoid valve | Automatic safety valve, manual two-way safety valve, solenoid valve | Automatic safety valve, manual two-way safety valve, solenoid valve |
| Power Supply | Standard: AC220V 50/60Hz; optional: AC110V 50/60Hz | Standard: AC220V 50/60Hz; optional: AC110V 50/60Hz | Standard: AC220V 50/60Hz; optional: AC110V 50/60Hz | Standard: AC220V 50/60Hz; optional: AC110V 50/60Hz |
| External Size | 2200*1200*2000mm | 2200*1800*2000mm | 2800*1900*2000mm | 3400*1900*2000mm |
| Packing Size | 2400*1500*2240mm | 2400*2150*2240mm | / | / |
| Gross Weight | 1300kg | 1800kg | / | / |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Rehabilitation & Care Equipment by BIOBASE. Match the care application, user requirements, dimensions and accessories.
Loading Capacity: 120kg. Match the care application, user requirements, dimensions and accessories.
