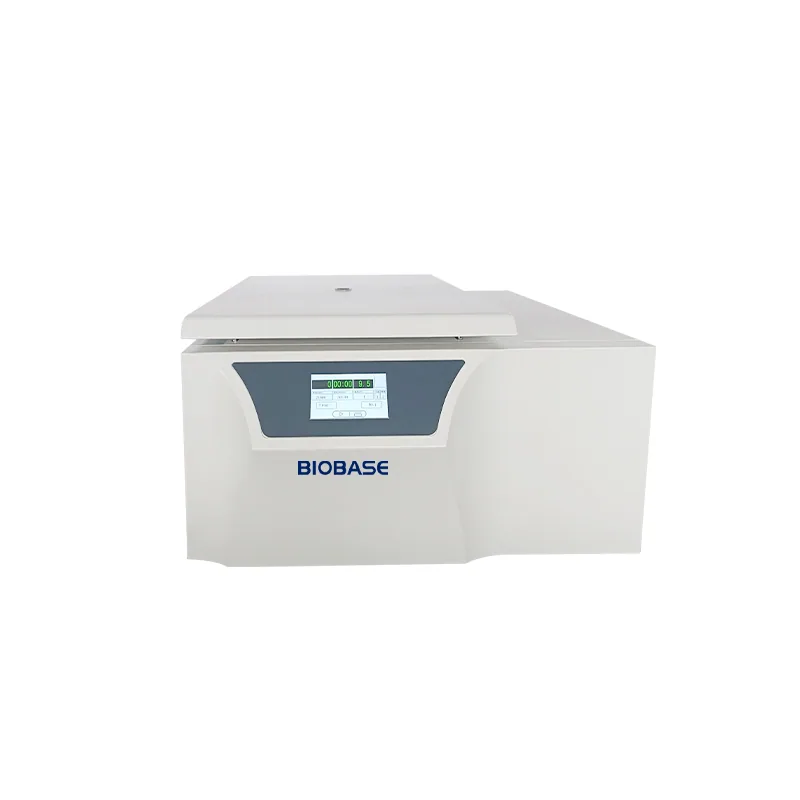

BIOBASE Low Speed Large Capacity Refrigerated Centrifuge BKC-TL5RL BKC-VL6RLII
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Low Speed Large Capacity Refrigerated Centrifuge BKC-TL5RL BKC-VL6RLII is listed in VVON's laboratory centrifuges range for Bangladesh. Published models: BKC-TL5RL, BKC-VL6RLII. Compare RCF, rotor format, sample capacity and temperature control. For a quotation, send the sample type, tube sizes, required RCF, rotor and refrigeration needs. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BKC-TL5RL | BKC-VL6RLII |
|---|---|---|
| Max. Capacity | 4*750ml | 6*1000ml |
| Max. Speed | 5500rpm | 6000rpm |
| Max. RCF | 4390xg | 6680xg |
| Speed Precision | ±30rpm | ±20rpm |
| Temp. Range | -20~40°C | -20~40°C |
| Temp. Accuracy | ±1°C | ±1°C |
| Timing Range | 0~99h59min59s | 0~99h59min59s |
| Noise | ≤60dB | ≤58dB |
| Consumption | 1.2KW | 3KW |
| Power Supply | AC220±22V 50/60Hz (Standard); AC110V 60Hz (Optional) | AC220±22V 50/60Hz (Standard); AC110V 60Hz (Optional) |
| External Size(W*D*H) mm | 703*710*400 | 725*940*970 |
| Packing Size(W*D*H) mm | 910*825*570 | 870*1040*1380 |
| Net Weight(kg) | 110 | 280 |
| Gross Weight(kg) | 130 | 330 |
| No. | Rotor | Max. Speed(rpm) | RCF (xg) | capacity | Dimension of Tube (mm) |
|---|---|---|---|---|---|
| NO.1 | Angle Rotor | 5500 | 4390 | 12*10ml | Φ16*83 |
| NO.2 | Angle Rotor | 5500 | 4390 | 12*15ml | Φ17*121 |
| NO.3 | Swing Rotor | / | / | Support | / |
| NO.3 | Tube Rack | 4000 ; | 2810 | 4*100ml | Φ38*116 |
| NO.3 | Tube Rack | 4000 ; | 2810 | 4*2*100ml | Φ38*116 |
| NO.3 | Tube Rack | 4000 ; | 2810 | 4*4*10ml | Φ16*106 |
| NO.3 | Tube Rack | 4000 ; | 2810 | 4*6*10ml | Φ16*106 |
| NO.3 | Tube Rack | 4000 ; | 2810 | 4*8*10ml | Φ16*106 |
| NO.3 | Tube Rack | 4000 ; | 2810 | 4*4*15ml(▲/●) | Φ16*120 |
| NO.3 | Tube Rack | 4000 ; | 2810 | 4*6*15ml(▲/●) | Φ16*120 |
| NO.3 | Tube Rack | 4000 ; | 2810 | 4*8*15ml(▲/●) | Φ16*120 |
| NO.3 | Tube Rack | 4000 ; | 2810 | 4*50ml(▲/●) | Φ29*116 |
| NO.3 | Tube Rack | 4000 ; | 2810 | 4*2*50ml(▲/●) | Φ29*116 |
| NO.4 | Swing Rotor ; | 4200 | 3500 | 4*250ml | Φ62*126 |
| NO.4 | Adapter | 4200 | 3500 | 4*8*5ml | / |
| NO.4 | Adapter | 4200 | 3500 | 4*8*7ml | / |
| NO.4 | Adapter | 4200 | 3500 | 4*7*10ml | / |
| NO.4 | Adapter | 4200 | 3500 | 4*6*15ml | / |
| NO.4 | Adapter | 4200 | 3500 | 4*2*50ml(●) | / |
| NO.4 | Adapter | 4200 | 3500 | 4*1*50ml(▲) | / |
| NO.4 | Adapter | 4200 | 3500 | 4*100ml | / |
| NO.5 | Swing Rotor | 4000 | 3040 | 4*500ml | Φ80*137 |
| NO.5 | Adapter | 4000 | 3040 | 4*15*5ml | / |
| NO.5 | Adapter | 4000 | 3040 | 4*15*7ml | / |
| NO.5 | Adapter | 4000 | 3040 | 4*12*10ml | / |
| NO.5 | Adapter | 4000 | 3040 | 4*8*15ml(▲) | / |
| NO.5 | Adapter | 4000 | 3040 | 4*4*50ml(▲/●) | / |
| NO.5 | Adapter | 4000 | 3040 | 4*2*100ml | / |
| NO.5 | Adapter | 4000 | 3040 | 4*250ml | / |
| NO.6 | Swing Rotor | 4000 | 3180 | 4*750ml | Φ99*137 |
| NO.7 | Swing Rotor | 4200 | 3500 | 4*12*7/5ml | Φ13*110/90 |
| NO.8 | Swing Rotor | 4200 | 3500 | 4*18*7/5ml | Φ13*110/90 |
| NO.9 | Swing Rotor | 4000 | 3040 | 4*24*7/5ml | Φ13*110/90 |
| NO.10 | Microplate Rotor | 4000 | 2000 | 2*2*48well | ; Microplate |
| NO.11 | Microplate Rotor | 4200 | 2360 | 2*2*96well | ; Microplate |
| No. | Rotor | Max. Speed(rpm) | RCF(xg) | Capacity | Dimension of Bottle (mm) |
|---|---|---|---|---|---|
| No.1 | Angle Rotor | 6000 | 5650 | 6*300ml | Φ63*157 |
| No.2 | Angle Rotor | 6000 | 6680 | 6*500ml | Φ74*168 |
| No.3 | Swing Rotor (round cup) | 4200 | 5030 | 6*1000ml | Φ100*175 |
| No.4 | Swing Rotor (square cup) | 4200 | 5030 | 6*1000ml | / |
Manufacturer catalogue checked 2026-09-28.
