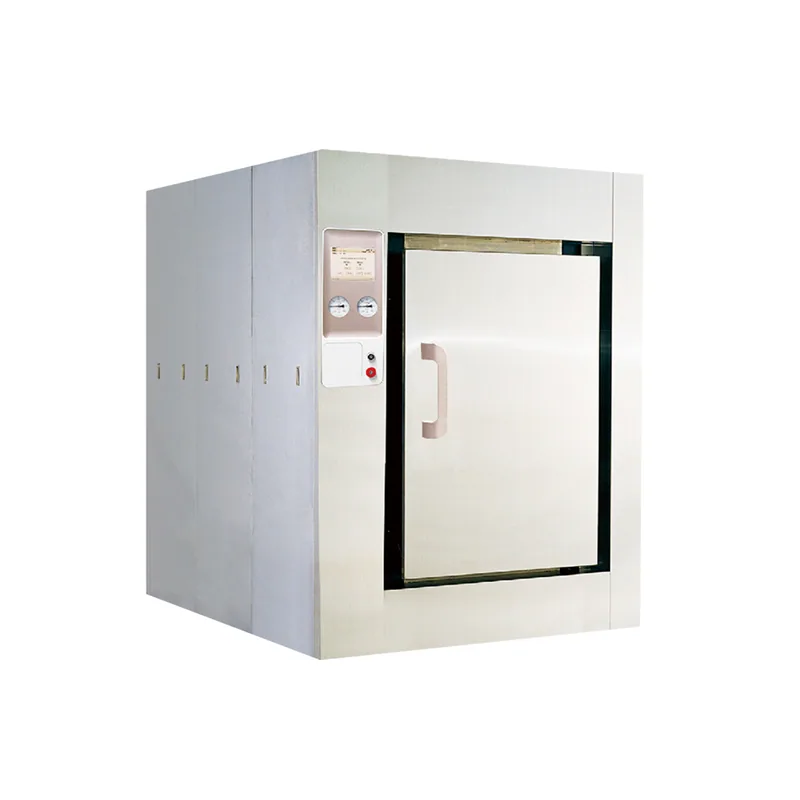

BIOBASE Large Steam Autoclave Medical Sterilizing Machine
Brand: BIOBASE | Category: Medical Equipment
BIOBASE Large Steam Autoclave Medical Sterilizing Machine is listed in VVON's medical sterilisation & reprocessing range for Bangladesh. Published models: BKQ-140D-A, BKQ-140DD-A, BKQ-140S-A, BKQ-140SD-A, BKQ-240D-A, BKQ-240DD-A. Compare the remaining models in the specification tables. Match instrument loads, processing cycles, capacity and site utilities. For a quotation, send the instrument load, processing method, cycle requirements, capacity and site utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Item | Chamber | Jacket |
|---|---|---|
| Design Pressure Mpa | -0.1/0.3 | 0.3 |
| Design Temperature(℃) | 144 | 144 |
| Working Pressure (Mpa) | -0.1/0.25 | 0.25 |
| Max Working Temperature(℃) | 139 | 139 |
| Safety Valve Open Pressure | 0.28 | 0.28 |
| Model | Volume | Chamber size (W*D*H) | External size (W*D*H) | Net weight | Power consumption | Power supply |
|---|---|---|---|---|---|---|
| BKQ-140D-A | 146L | 420*420*830mm | 1290*1680*1050mm | 425 Kg | 2.5KW | 380V,50Hz |
| BKQ-140DD-A | 146L | 420*420*830mm | 1290*1680*1050mm | 525 Kg | 18KW | 380V,50Hz |
| BKQ-140S-A | 146L | 420*420*830mm | 1290*1680*1100mm | 510 Kg | 2.5KW | 380V,50Hz |
| BKQ-140SD-A | 146L | 420*420*830mm | 1290*1680*1100mm | 610 Kg | 18KW | 380V,50Hz |
| BKQ-240D-A | 241L | 600*600*670mm | 1370*1880*950mm | 580 Kg | 2.5KW | 380V,50Hz |
| BKQ-240DD-A | 241L | 600*600*670mm | 1370*1880*950mm | 660 Kg | 24KW | 380V,50Hz |
| BKQ-240S-A | 241L | 600*600*670mm | 1370*1880*1000mm | 660 Kg | 2.5KW | 380V,50Hz |
| BKQ-240SD-A | 241L | 600*600*670mm | 1370*1880*1000mm | 720 Kg | 24KW | 380V,50Hz |
| BKQ-350D-A | 352L | 600*600*980mm | 1215*1880*1190mm | 780 Kg | 2.5KW | 380V,50Hz |
| BKQ-350DD-A | 352L | 600*600*980mm | 1215*1880*1190mm | 880 Kg | 24KW | 380V,50Hz |
| BKQ-350S-A | 352L | 600*600*980mm | 1215*1880*1240mm | 860 Kg | 2.5KW | 380V,50Hz |
| BKQ-350SD-A | 352L | 600*600*980mm | 1215*1880*1240mm | 960 Kg | 24KW | 380V,50Hz |
| BKQ-350D-B | 352L | 600*600*980mm | 1215*1880*1190mm | 880 Kg | 2.5KW | 380V,50Hz |
| BKQ-350DD-B | 352L | 600*600*980mm | 1215*1880*1190mm | 1000 Kg | 24KW | 380V,50Hz |
| BKQ-350S-B | 352L | 600*600*980mm | 1215*1880*1240mm | 960 Kg | 2.5KW | 380V,50Hz |
| BKQ-350SD-B | 352L | 600*600*980mm | 1215*1880*1240mm | 1080 Kg | 24KW | 380V,50Hz |
| BKQ-650D-B | 655L | 610*910*1180mm | 1310*2070*1370mm | 1170 Kg | 4KW | 380V,50Hz |
| BKQ-650DD-B | 655L | 610*910*1180mm | 1310*2070*1370mm | 1270 Kg | 46KW | 380V,50Hz |
| BKQ-650S-B | 655L | 610*910*1180mm | 1310*2070*1420mm | 1270 Kg | 4KW | 380V,50Hz |
| BKQ-650SD-B | 655L | 610*910*1180mm | 1310*2070*1420mm | 1370 Kg | 46KW | 380V,50Hz |
| BKQ-810D-B | 810L | 610*910*1460mm | 1310*2070*1650mm | 1260 Kg | 4KW | 380V,50Hz |
| BKQ-810DD-B | 810L | 610*910*1460mm | 1310*2070*1650mm | 1360 Kg | 61KW | 380V,50Hz |
| BKQ-810S-B | 810L | 610*910*1460mm | 1310*2070*1700mm | 1360 Kg | 4KW | 380V,50Hz |
| BKQ-810SD-B | 810L | 610*910*1460mm | 1310*2070*1700mm | 1460 Kg | 61KW | 380V,50Hz |
| BKQ-990D-B | 999L | 610*910*1800mm | 1310*2070*1990mm | 1300 Kg | 4KW | 380V,50Hz |
| BKQ-990DD-B | 999L | 610*910*1800mm | 1310*2070*1990mm | 1400 Kg | 61KW | 380V,50Hz |
| BKQ-990S-B | 999L | 610*910*1800mm | 1310*2070*2040mm | 1400 Kg | 4KW | 380V,50Hz |
| BKQ-990SD-B | 999L | 610*910*1800mm | 1310*2070*2040mm | 1500 Kg | 61KW | 380V,50Hz |
| BKQ-1200D-B | 1203L | 680*1180*1500mm | 1450*1990*1710mm | 1950 Kg | 5KW | 380V,50Hz |
| BKQ-1200S-B | 1203L | 680*1180*1500mm | 1450*1990*1760mm | 2050 Kg | 5KW | 380V,50Hz |
| BKQ-1500D-B | 1500L | 680*1180*1870mm | 1450*1990*2080mm | 2111 Kg | 5KW | 380V,50Hz |
| BKQ-1500S-B | 1500L | 680*1180*1870mm | 1450*1990*2130mm | 2211 Kg | 5KW | 380V,50Hz |
Manufacturer catalogue checked 2026-09-28.
