Brand: BIOBASE | Category: Scientific & Laboratory Equipment

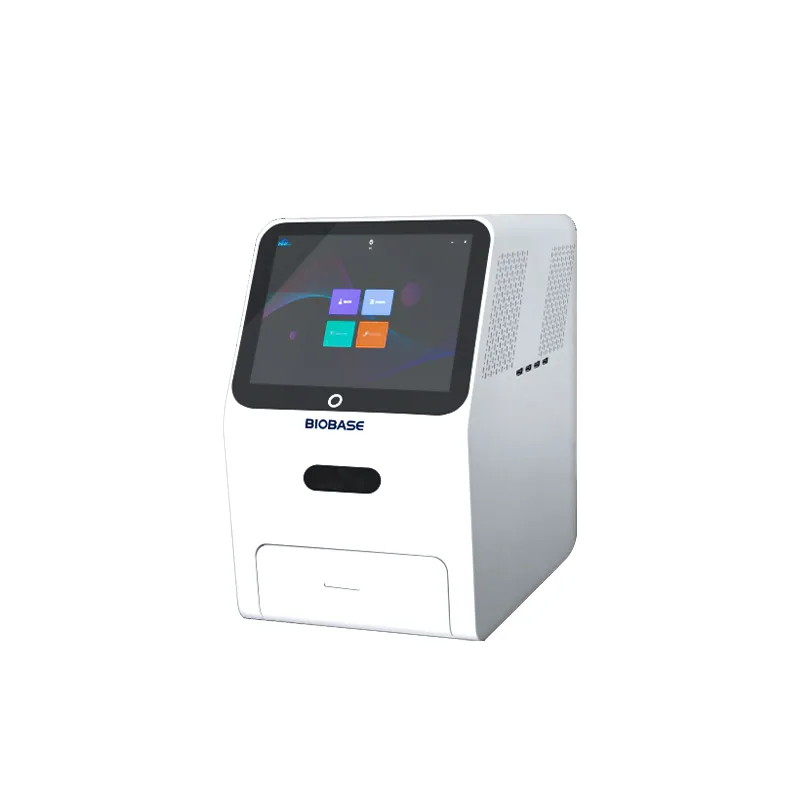

BIOBASE Integrated Automatic Gel Imaging System BK-AGX3 is listed in VVON's electrophoresis & gel imaging range for Bangladesh. Published models: BK-AGX3. Match gel format, sample capacity, power supply and imaging method. For a quotation, send the gel type, sample count, detection method and imaging requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-AGX3 |
|---|---|
| Camera Resolution | 6.0MP |
| Photosensitive Efficiency | ≥79% |
| Exposure Time | 1ms~5000ms |
| Pixel Density | 16 Bits(0~65535) |
| OD | ≥4.8OD |
| Lens | Large aperture autofocus lens, 20 million auto focus lens |
| UV Transmission | 302nm, optional other transmitted blue light |
| White Light Reflection | LED reflection(cold light) |
| White Light Transmission | White light emitting panel |
| Filter | Standard 590nm, other optional |
| Shooting Area | 21*21cm |
| Timer Shut Down | 1~60min |
| Touch System | 12.5-inch touch system |
| Power Supply | 110~240V, 50/60Hz |
| Packing Size | 450*462*666mm |
| Gross Weight | 22.3kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
