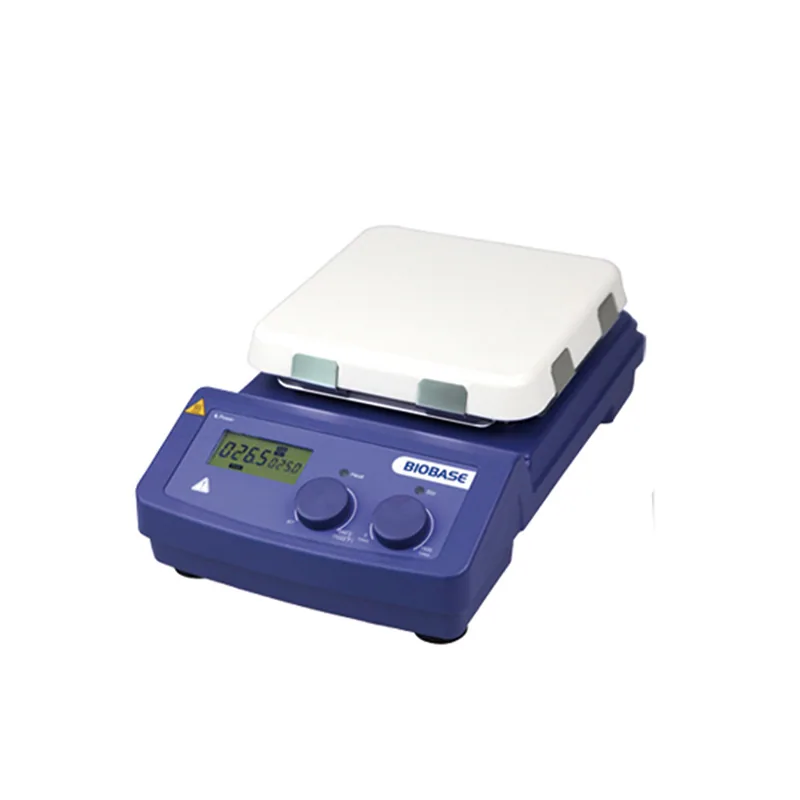

BIOBASE Hotplate Magnetic Stirrer MS Series
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Hotplate Magnetic Stirrer MS Series is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: MS7-H550-Pro, MS7-H550-S, MS-H-ProA, MS-H-Prot, MS-H-S, MS-H280-Pro. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MS7-H550-Pro | MS7-H550-S | MS-H-ProA | MS-H-Prot | MS-H-S | MS-H280-Pro |
|---|---|---|---|---|---|---|
| Item No. | 8030122111 | 8030122211 | 8060221110 | 8030201110 | 8030211010 | 8030101212 |
| Work Plate Size | 184*184mm(7 inch) | 184*184mm(7 inch) | φ135mm(5 inch) | φ135mm(5 inch) | φ135mm(5 inch) | φ135mm(5 inch) |
| Work Plate Material | Glass ceramic | Glass ceramic | Aluminum | Stainless steel with ceramic coated | Stainless steel with ceramic coated | Stainless steel with ceramic coated |
| Max. Stirring Capacity | 20L | 10L | 20L | 20L | 20L | 3L |
| Motor Type | Brushless DC motor | Shaded pole motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor |
| Motor Input | 18W | 15W | 18W | 18W | 18W | 5W |
| Motor Output | 10W | 1.5W | 10W | 10W | 10W | 3W |
| Speed Range | 100~1500rpm | 0~1500rpm | 100~1500rpm | 100~1500rpm | 0~1500rpm | 200~1500rpm |
| Speed Display | LCD | Scale | LCD | LCD | Scale | LED |
| Speed Display Accuracy | ±1rpm | / | ±1rpm | ±1rpm | /; | /; |
| Heating Output | 1000W | 1000W | 600W | 500W | 500W | 500W |
| Heating Temp. Range | RT-550°C, increment 1°C | RT-550°C, increment 5°C | RT-340°C, increment 1°C | RT-340°C, increment 1°C | RT-340°C | RT-280°C, increment 1°C |
| Control Temp. Accuracy | ±1°C(<100°C) ±1%(>100°C) | ±10°C | ±1°C(<100°C) ±1%(>100°C) | ±1°C(<100°C) ±1%(>100°C) | / | ±1°C(<100°C) ±1%(>100°C) |
| Overheating Protection | 580°C | 580°C | 420°C | 420°C | 420°C | 320°C |
| Temp. Display | LCD | LED | LCD | LCD | Scale | LED |
| Display Temp. Accuracy | ±0.1 °C | ±1°C | ±0.1 °C | ±0.1 °C | / | ±1°C |
| Timing Range | / | / | 1~99h59min | 1~99h59min | / | / |
| Optional Accessory | PT1000(accuracy ±0.2°C) | PT1000(accuracy ±0.2°C) | PT1000(accuracy ±0.2°C) | PT1000(accuracy ±0.2°C) | / | PT1000(accuracy ±0.2°C) |
| Residual Heat Warning | 50°C | 50°C | 50°C | 50°C | / | 50°C |
| Max. Stirrer Bar Length | 80mm | 80mm | 80mm | 80mm | 80mm | 50mm |
| Interface | RS232 | / | RS232 | / | / | / |
| Protection Type | IP21 | IP21 | IP21 | IP21 | IP21 | IP42 |
| Working Environment | 5~40°C, 80%RH | 5~40°C, 80%RH | 5~40°C, 80%RH | 5~40°C, 80%RH | 5~40°C, 80%RH | 5~40°C, 80%RH |
| Power Consumption | 1050W | 1030W | 720W | 550W | 530W | 515W |
| Power Supply | AC110/220V±10%, 50/60Hz(Customizable) | AC110/220V±10%, 50/60Hz(Customizable) | AC110/220V±10%, 50/60Hz(Customizable) | AC110/220V±10%, 50/60Hz(Customizable) | AC110/220V±10%, 50/60Hz(Customizable) | AC110/220V±10%, 50/60Hz(Customizable) |
| External Size(W*D*H) | 215*360*112mm | 215*360*112mm | 160*280*100mm | 160*280*100mm | 160*280*100mm | 160*280*100mm |
| Package Size(W*D*H) | 490*350*260mm | 490*350*260mm | 470*250*240mm | 470*250*240mm | 470*250*240mm | 300*240*220mm |
| Gross Weight | 7kg | 7kg | 4kg | 4kg | 3.5kg | 3kg |
Manufacturer catalogue checked 2026-09-28.
