Brand: BIOBASE | Category: Scientific & Laboratory Equipment

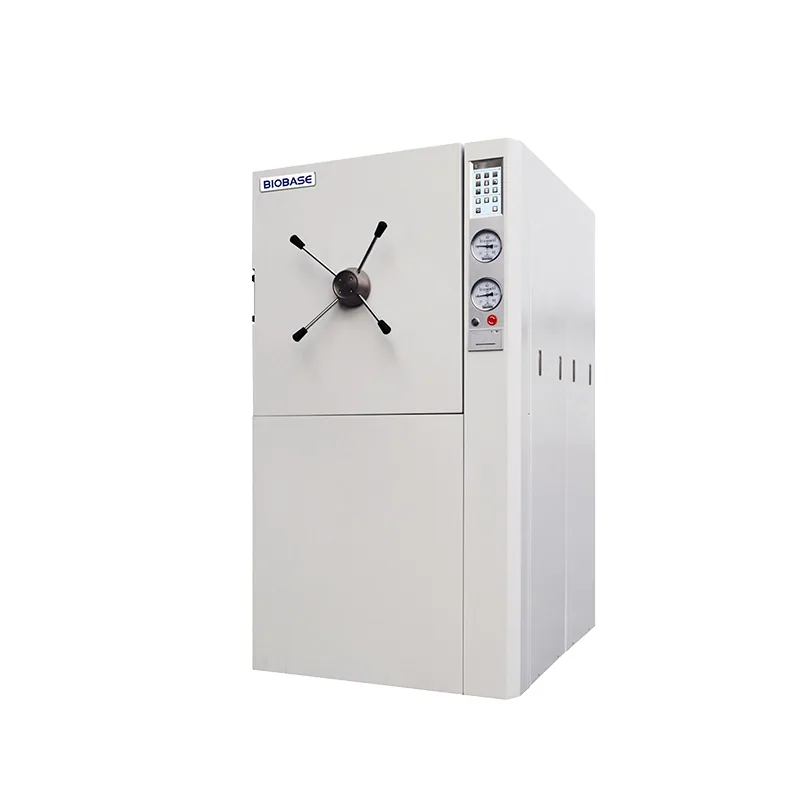

BIOBASE Horizontal Pulse Vacuum Autoclave is listed in VVON's autoclaves & sterilisation equipment range for Bangladesh. Published models: BKQ-Z150H, BKQ-Z200H, BKQ-Z300H, BKQ-Z360H. Match chamber size, load type, cycle requirements and available utilities. For a quotation, send the load type, chamber capacity, cycle requirements and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BKQ-Z150H | BKQ-Z200H | BKQ-Z300H | BKQ-Z360H |
|---|---|---|---|---|
| Capacity | 150L | 200L | 300L | 360L |
| Door | Manual | Manual | Manual | Manual |
| Display | 7-inch LCD touch screen | 7-inch LCD touch screen | 7-inch LCD touch screen | 7-inch LCD touch screen |
| Designed Pressure | -0.1/0.3MPa | -0.1/0.3MPa | -0.1/0.3MPa | -0.1/0.3MPa |
| Working Pressure | 0.23MPa | 0.23MPa | 0.23MPa | 0.23MPa |
| Working Temp. | 105~134℃ | 105~134℃ | 105~134℃ | 105~134℃ |
| Temp. Precision | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ |
| Sterilization Time | 0~99min | 0~99min | 0~99min | 0~99min |
| Drying Time | 0~99min | 0~99min | 0~99min | 0~99min |
| Vacuum system | Water circulating vacuum pump | Water circulating vacuum pump | Water circulating vacuum pump | Water circulating vacuum pump |
| Chamber Material | S30408 | S30408 | S30408 | S30408 |
| Chamber Size | φ500*780mm | φ500*1020mm | φ650*980mm | φ650*1130mm |
| Altitude | ≤2000m; could be customized@2000~3000m | ≤2000m; could be customized@2000~3000m | ≤2000m; could be customized@2000~3000m | ≤2000m; could be customized@2000~3000m |
| Rack | 1 mesh frame with 1 cover | 1 mesh frame with 1 cover | 1 mesh frame with 1 cover | 1 mesh frame with 1 cover |
| Standard Accessories | Stainless steel frame with cover, mobile sensor, printer | Stainless steel frame with cover, mobile sensor, printer | Stainless steel frame with cover, mobile sensor, printer | Stainless steel frame with cover, mobile sensor, printer |
| Consumption | 20kVA | 20kVA | 20kVA | 20kVA |
| Power Supply | AC380V, 50Hz(Standard); AC380V, 60Hz(Optional); AC220V, 50/60Hz(Three phase, Optional); Wiring Method: Air switch | AC380V, 50Hz(Standard); AC380V, 60Hz(Optional); AC220V, 50/60Hz(Three phase, Optional); Wiring Method: Air switch | AC380V, 50Hz(Standard); AC380V, 60Hz(Optional); AC220V, 50/60Hz(Three phase, Optional); Wiring Method: Air switch | AC380V, 50Hz(Standard); AC380V, 60Hz(Optional); AC220V, 50/60Hz(Three phase, Optional); Wiring Method: Air switch |
| External Size(W*D*H) | 940*1190*1780mm | 940*1400*1780mm | 1170*1570*1980mm | 1170*1570*1980mm |
| Net Weight | 400kg | 450kg | 590kg | 605kg |
| Package Size(W*D*H) | 1110*1385*2080mm | 1110*1585*2080mm | 1330*1755*2270mm | 1330*1755*2270mm |
| Gross Weight | 520kg | 600kg | 755kg | 770kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
