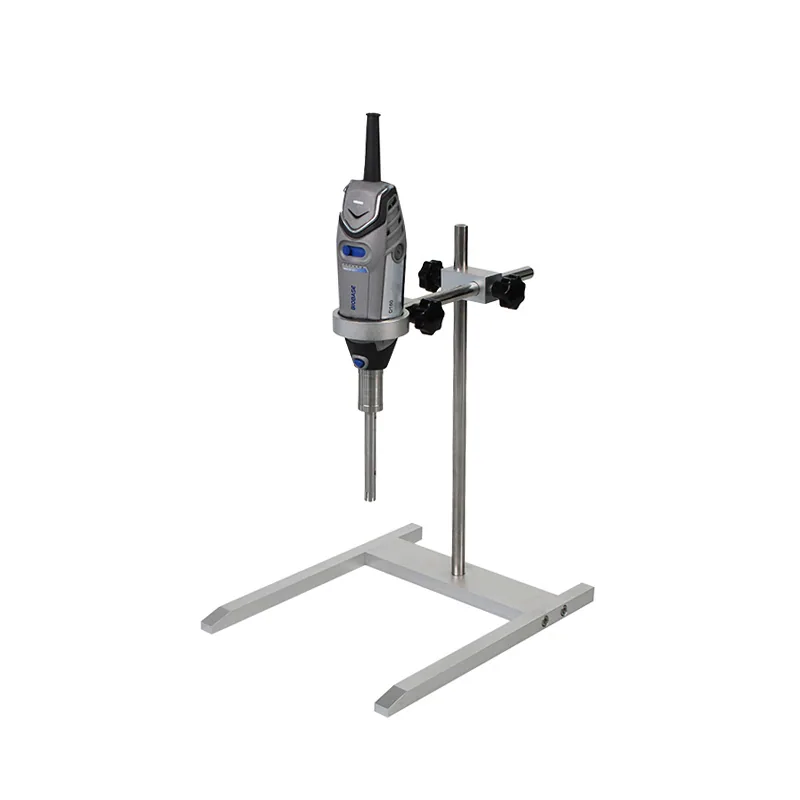

BIOBASE Homogenizer D-160
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Homogenizer D-160 is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: D-160/5, D-160/10. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | D-160/5 | D-160/10 | D-160/10 |
|---|---|---|---|
| Item No. | 8014111000 | 8014121000 | 8014121000 |
| Recommended Configuration | D160 drive, H370 stand, DS-160/5 shaft, volumes from 0.1~50ml | D160 drive, H370 stand, DS-160/10 shaft, volumes from 1~250ml | D160 drive, H370 stand, DS-160/10 shaft, volumes from 1~250ml |
| Speed Range | 8000~32000rpm | 8000~32000rpm | 8000~32000rpm |
| Max. Circum. Speed | 6.3~14m/s | 6.3~14m/s | 6.3~14m/s |
| Speed Control | 10 stage | 10 stage | 10 stage |
| Working Volume(H2O) | 0.1~50ml(Dispersing shaft DS-160/5) | 0.1~50ml(Dispersing shaft DS-160/5) | 1~250ml(Dispersing shaft DS-160/10) |
| Max. Viscosity | 5000mPa·s | 5000mPa·s | 5000mPa·s |
| Material of Dispersing Shaft | SS316&PTFE seal ring | SS316&PTFE seal ring | SS316&PTFE seal ring |
| Noise | ≤72dB | ≤72dB | ≤72dB |
| Ambient Temp. | 0~40°C | 0~40°C | 0~40°C |
| Relative Humidity | 85%RH | 85%RH | 85%RH |
| Protection Type | IP20 | IP20 | IP20 |
| Consumption | 160W | 160W | 160W |
| Motor Type | AC carbon brush motor | AC carbon brush motor | AC carbon brush motor |
| Power Supply | AC110/220V±10%, 50/60Hz(Customizable) | AC110/220V±10%, 50/60Hz(Customizable) | AC110/220V±10%, 50/60Hz(Customizable) |
| Standard Accessory | Base stand+DS-160/5 dispersing shaft | Base stand+DS-160/5 dispersing shaft | Base stand+DS-160/10 dispersing shaft |
| External Size(W*D*H) | 45*55*190mm | 45*55*190mm | 45*55*190mm |
| Package Size(W*D*H) | 470*240*250mm | 470*240*250mm | 470*240*250mm |
| Gross Weight | 4kg | 4kg | 4kg |
| Cat. No. | Combination Stator+Rotor | Model | Working Volume(ml) | Diameter of Stator | Diameter of Rotor | Min./Max. Immersion Depth | Application |
|---|---|---|---|---|---|---|---|
| 18900543 | DS-160/5 | D-160/5 | 0.1~50 | 5mm | 3mm | 7/50mm | Small amounts of solid-liquid mixtures |
| 18900544 | DS-160/10 | D-160/10 | 1~250 | 10mm | 6mm | 10/120mm | Small amounts of solid-liquid mixtures |
Manufacturer catalogue checked 2026-09-28.
