Brand: BIOBASE | Category: Scientific & Laboratory Equipment

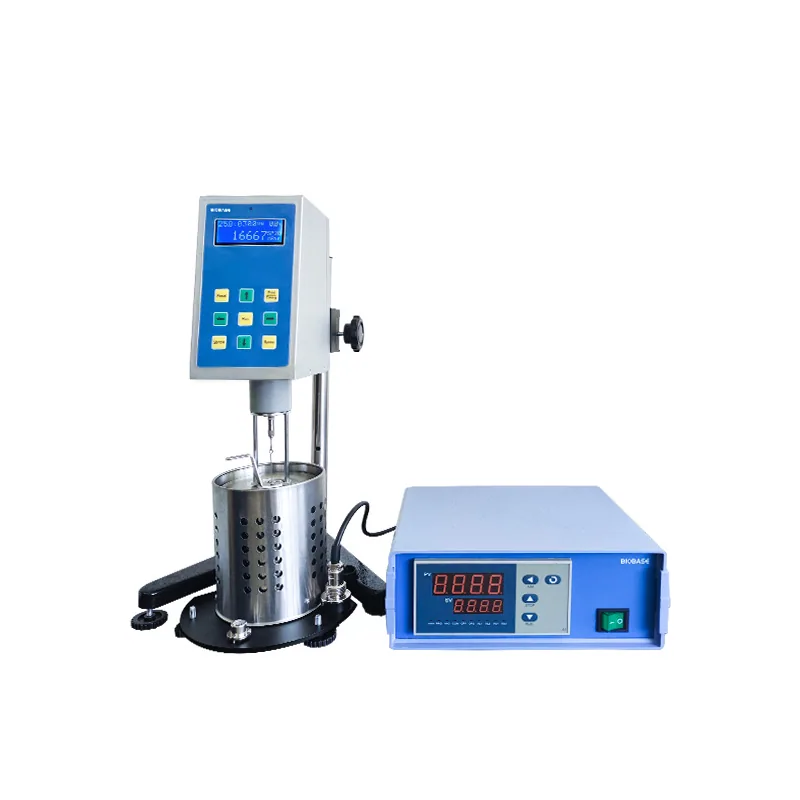

BIOBASE High-temperature Viscometer is listed in VVON's particle size rheology & physical analysis range for Bangladesh. Published models: BDV-1H, BDV-1HB, BDV-1L, BDV-2H, BDV-2HB, BDV-2L. Match the material, property, measurement range and sample-preparation method. For a quotation, send the material, property to measure, measurement range and sample preparation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BDV-1H | BDV-1HB | BDV-1L | BDV-2H | BDV-2H | BDV-2HB | BDV-2L |
|---|---|---|---|---|---|---|---|
| Measuring Range(mPa·s) | 100~10,000,000 | 800~80,000,000 | 10~1,000,000 | 50~10,000,000 | 50~10,000,000 | 400~80,000,000 | 5~1,000,000 |
| Rotating Speed(RPM) | 0.1~99.9(Stepless Gear) | 0.1~99.9(Stepless Gear) | 0.1~99.9(Stepless Gear) | 0.1~200(Stepless Gear) | 0.1~200(Stepless Gear) | 0.1~200(Stepless Gear) | 0.1~200(Stepless Gear) |
| Number of Spindles | Spindles(21, 27, 28, 29) are equipped with the product | Spindles(21, 27, 28, 29) are equipped with the product | Spindles(21, 27, 28, 29) are equipped with the product | Spindles(21, 27, 28, 29) are equipped with the product | Spindles(21, 27, 28, 29) are equipped with the product | Spindles(21, 27, 28, 29) are equipped with the product | Spindles(21, 27, 28, 29) are equipped with the product |
| Measurement Accuracy | ±1% full scale range in use | ±1% full scale range in use | ±1% full scale range in use | ±1% full scale range in use | ±1% full scale range in use | ±1% full scale range in use | ±1% full scale range in use |
| Repeatability | ±0.5% full scale range in use | ±0.5% full scale range in use | ±0.5% full scale range in use | ±0.5% full scale range in use | ±0.5% full scale range in use | ±0.5% full scale range in use | ±0.5% full scale range in use |
| Sample Capacity(mL) | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 |
| Temperature Control Range | 10℃ above ambient~300℃ | 10℃ above ambient~300℃ | 10℃ above ambient~300℃ | 10℃ above ambient~300℃ | 10℃ above ambient~300℃ | 10℃ above ambient~300℃ | 10℃ above ambient~300℃ |
| Power Supply / Viscometer | AC110~220V, 50/60Hz | AC110~220V, 50/60Hz | AC110~220V, 50/60Hz | AC110~220V, 50/60Hz | AC110~220V, 50/60Hz | AC110~220V, 50/60Hz | AC110~220V, 50/60Hz |
| Power Supply / Heating Furnace | AC220V, 50/60Hz; 110V, 60Hz(Optional) | AC220V, 50/60Hz; 110V, 60Hz(Optional) | AC220V, 50/60Hz; 110V, 60Hz(Optional) | AC220V, 50/60Hz; 110V, 60Hz(Optional) | AC220V, 50/60Hz; 110V, 60Hz(Optional) | AC220V, 50/60Hz; 110V, 60Hz(Optional) | AC220V, 50/60Hz; 110V, 60Hz(Optional) |
| LCD Display / Viscometer | The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value | The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value | The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value | The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value | The LCD screen can display the viscosity, speed, torque spindle, temperature，shear rate, shear force and the maximum viscosity can be measured in the current spindle speed value | The LCD screen can display the viscosity, speed, torque spindle, temperature，shear rate, shear force and the maximum viscosity can be measured in the current spindle speed value | The LCD screen can display the viscosity, speed, torque spindle, temperature，shear rate, shear force and the maximum viscosity can be measured in the current spindle speed value |
| LCD Display / Temperature Controller | Display setting temperature and actual measuring temperature | Display setting temperature and actual measuring temperature | Display setting temperature and actual measuring temperature | Display setting temperature and actual measuring temperature | Display setting temperature and actual measuring temperature | Display setting temperature and actual measuring temperature | Display setting temperature and actual measuring temperature |
| Standard Accessories | Spindles(21, 27, 28, 29), temperature controller, heating furnace, RTD temperature probe | Spindles(21, 27, 28, 29), temperature controller, heating furnace, RTD temperature probe | Spindles(21, 27, 28, 29), temperature controller, heating furnace, RTD temperature probe | Spindles(21, 27, 28, 29), temperature controller, heating furnace, RTD temperature probe | Spindles(21, 27, 28, 29), temperature controller, heating furnace, RTD temperature probe | Spindles(21, 27, 28, 29), temperature controller, heating furnace, RTD temperature probe | Spindles(21, 27, 28, 29), temperature controller, heating furnace, RTD temperature probe |
| Optional Accessories | Ultra-low viscosity adapter, spindles(L0, R1, R2, R3, R4, R5, R6, R7)(For BDV-1H, BDV-1HB, BDV-2H, BDV-2HB), spindles (L0, L1, L2, L3, L4, L5) (For BDV-1L, BDV-2L), data acquisition, analysis, and plotting software, DV programmable download software, constant temperature bath, standard solution(25℃), WR1401 viscometer wireless remote control | Ultra-low viscosity adapter, spindles(L0, R1, R2, R3, R4, R5, R6, R7)(For BDV-1H, BDV-1HB, BDV-2H, BDV-2HB), spindles (L0, L1, L2, L3, L4, L5) (For BDV-1L, BDV-2L), data acquisition, analysis, and plotting software, DV programmable download software, constant temperature bath, standard solution(25℃), WR1401 viscometer wireless remote control | Ultra-low viscosity adapter, spindles(L0, R1, R2, R3, R4, R5, R6, R7)(For BDV-1H, BDV-1HB, BDV-2H, BDV-2HB), spindles (L0, L1, L2, L3, L4, L5) (For BDV-1L, BDV-2L), data acquisition, analysis, and plotting software, DV programmable download software, constant temperature bath, standard solution(25℃), WR1401 viscometer wireless remote control | Ultra-low viscosity adapter, spindles(L0, R1, R2, R3, R4, R5, R6, R7)(For BDV-1H, BDV-1HB, BDV-2H, BDV-2HB), spindles (L0, L1, L2, L3, L4, L5) (For BDV-1L, BDV-2L), data acquisition, analysis, and plotting software, DV programmable download software, constant temperature bath, standard solution(25℃), WR1401 viscometer wireless remote control | Ultra-low viscosity adapter, spindles(L0, R1, R2, R3, R4, R5, R6, R7)(For BDV-1H, BDV-1HB, BDV-2H, BDV-2HB), spindles (L0, L1, L2, L3, L4, L5) (For BDV-1L, BDV-2L), data acquisition, analysis, and plotting software, DV programmable download software, constant temperature bath, standard solution(25℃), WR1401 viscometer wireless remote control | Ultra-low viscosity adapter, spindles(L0, R1, R2, R3, R4, R5, R6, R7)(For BDV-1H, BDV-1HB, BDV-2H, BDV-2HB), spindles (L0, L1, L2, L3, L4, L5) (For BDV-1L, BDV-2L), data acquisition, analysis, and plotting software, DV programmable download software, constant temperature bath, standard solution(25℃), WR1401 viscometer wireless remote control | Ultra-low viscosity adapter, spindles(L0, R1, R2, R3, R4, R5, R6, R7)(For BDV-1H, BDV-1HB, BDV-2H, BDV-2HB), spindles (L0, L1, L2, L3, L4, L5) (For BDV-1L, BDV-2L), data acquisition, analysis, and plotting software, DV programmable download software, constant temperature bath, standard solution(25℃), WR1401 viscometer wireless remote control |
| Packing Size(L*W*H) / Viscometer | 400*350*560mm | 400*350*560mm | 400*350*560mm | 400*350*560mm | 400*350*560mm | 400*350*560mm | 400*350*560mm |
| Packing Size(L*W*H) / Temperature Controller | 400*350*380mm | 400*350*380mm | 400*350*380mm | 400*350*380mm | 400*350*380mm | 400*350*380mm | 400*350*380mm |
| Gross Weight | 15kg | 15kg | 15kg | 15kg | 15kg | 15kg | 15kg |
Manufacturer catalogue checked 2026-09-28.
