Brand: BIOBASE | Category: Scientific & Laboratory Equipment

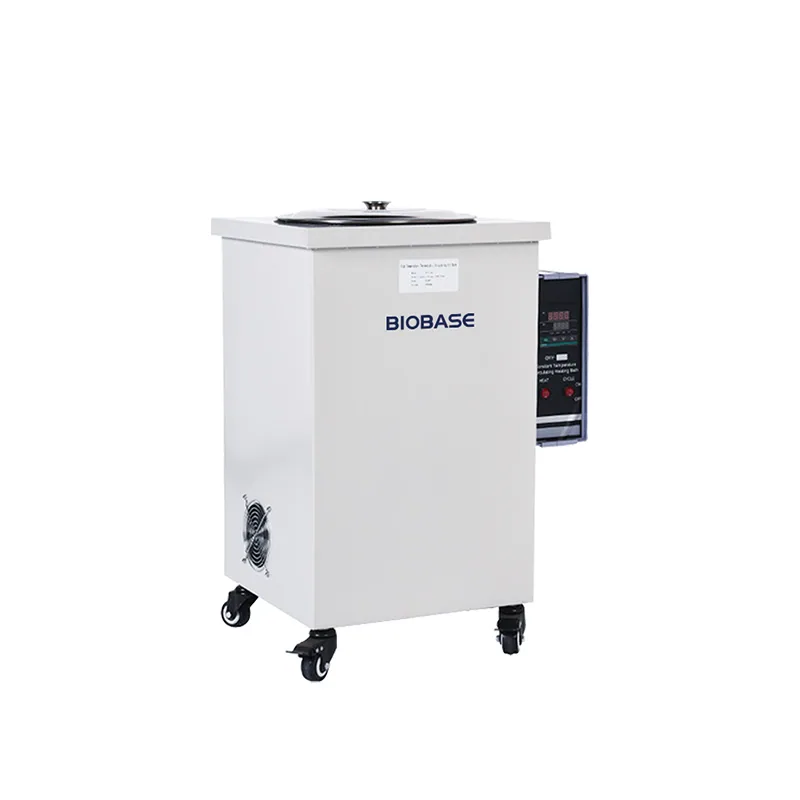

BIOBASE High Temperature Thermostatic Circulating Oil/Water Bath is listed in VVON's water baths chillers & dry blocks range for Bangladesh. Published models: OB-5L, OB-10L, OB-20L, OB-30L, OB-50L, OB-100L. Match temperature range, stability, sample format and circulation requirements. For a quotation, send the temperature range, working volume, sample format and connected equipment. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | OB-5L | OB-10L | OB-20L | OB-30L | OB-50L | OB-100L |
|---|---|---|---|---|---|---|
| Liquid Storage Volume(L) | 5 | 10 | 20 | 30 | 50 | 100 |
| No-load Max Temperature(℃) | 200 | 200 | 200 | 200 | 200 | 200 |
| Heating Power(kw) | 2 | 2.8 | 3.5 | 4 | 5 | 9 |
| Pressure | 1.45MPa | 1.45MPa | 1.45MPa | 1.45MPa | 1.45MPa | 1.45MPa |
| Cycle Way | Sealed magnetic pump cycles | Sealed magnetic pump cycles | Sealed magnetic pump cycles | Sealed magnetic pump cycles | Sealed magnetic pump cycles | Sealed magnetic pump cycles |
| Flow Rate(L/min) | 15~20 | 15~20 | 20~25 | 20~25 | 20~25 | 20~25 |
| Temperature Control Range(℃) | Water Bath: RT-100; Oil Bath: RT-200 | Water Bath: RT-100; Oil Bath: RT-200 | Water Bath: RT-100; Oil Bath: RT-200 | Water Bath: RT-100; Oil Bath: RT-200 | Water Bath: RT-100; Oil Bath: RT-200 | Water Bath: RT-100; Oil Bath: RT-200 |
| Temperature Error | ≤2.50% | ≤2.50% | ≤2.50% | ≤2.50% | ≤2.50% | ≤2.50% |
| HTF Viscosity(c℃st) | Below 500 | Below 500 | Below 500 | Below 500 | Below 500 | Below 500 |
| Optional Parts | Explosion-proof motor and electricals | Explosion-proof motor and electricals | Explosion-proof motor and electricals | Explosion-proof motor and electricals | Explosion-proof motor and electricals | Explosion-proof motor and electricals |
| No. of Heating Tube(pc) | 1 | 1 | 2 | 2 | 3 | 3 |
| Power Supply | AC220V, 50/60Hz(Standard)(Plug or air switch); AC110V, 50/60Hz(Optional); Air switch | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional); Air switch | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional); Air switch | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional); Air switch | AC380V, 50/60Hz(Standard); AC220V, 50/60Hz(Optional); Air switch | AC380V, 50/60Hz; Air switch |
| Packing Size(mm) | 530*460*800 | 580*480*740 | 530*440*870 | 550*680*850 | 670*570*910 | 740*640*1040 |
| Gross Weight(kg) | 36 | 38 | 42 | 48 | 52 | 63 |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
