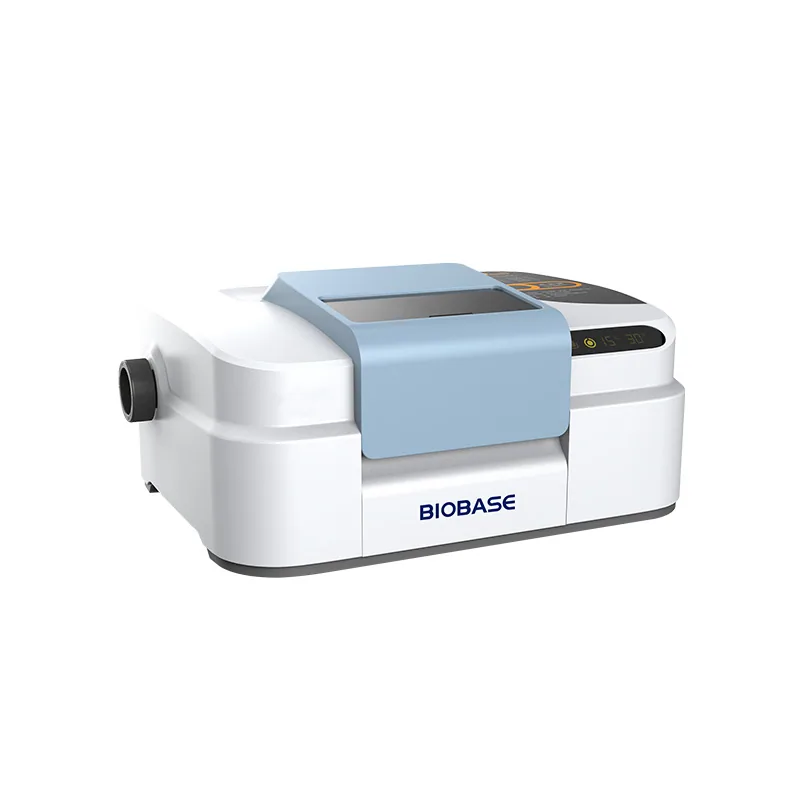

BIOBASE FT-IR Spectrometer BKFT-20
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE FT-IR Spectrometer BKFT-20 is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: BKFT-20. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BKFT-20 |
|---|---|
| Detector | DLATGS |
| Spectral Range | 7800~350cm^(-1) |
| Resolution | Better than 1cm^(-1) |
| Signal-to-noise Ratio | 30000:1 (P-P value, 4cm^(-1), 1min scan) |
| Wave Number Accuracy | Better than 0.01cm^(-1) |
| Transmission Accuracy | Better than 0.05 τ% |
| Beam Splitter | KBr substrate with germanium coating(Imported) |
| Interferometer | Non-orthogonal Michelson interferometer |
| Data Transmission Interface | High-speed USB2.0(Compatible with USB3.0) |
| Compatible Operating System | Windows XP, Windows Vista, Windows7, 8, 10, 11 |
| Environment Conditions | Temperature: 15~30℃ Humidity: 15~60% |
| Consumption | 12V24W |
| Standard Accessory | Operating software; sample holder; spare desiccant |
| Optional Accessory | FDA 21 CFR Part 11 compliance software; ZnSe crystal ATR; press; sheet mold; agate mortar; KBr spectral purity; gas pool; detachable liquid tank; fixed liquid pool; intelligent electronic moisture-proof box Among them, the electronic moisture-proof box is mandatory optional attachment |
| Power Supply | AC 100~240V, 50/60Hz |
| Sample Bin Size | 190*160mm |
| External Size(W*D*H) | 450*350*210mm |
| Package Size(W*D*H) | 750*630*590mm(Main unit + electronic moisture-proof box) |
| Net Weight | 14kg |
| Gross Weight | 60kg(Main unit + electronic moisture-proof box) |
Manufacturer catalogue checked 2026-09-28.
