Brand: BIOBASE | Category: Scientific & Laboratory Equipment

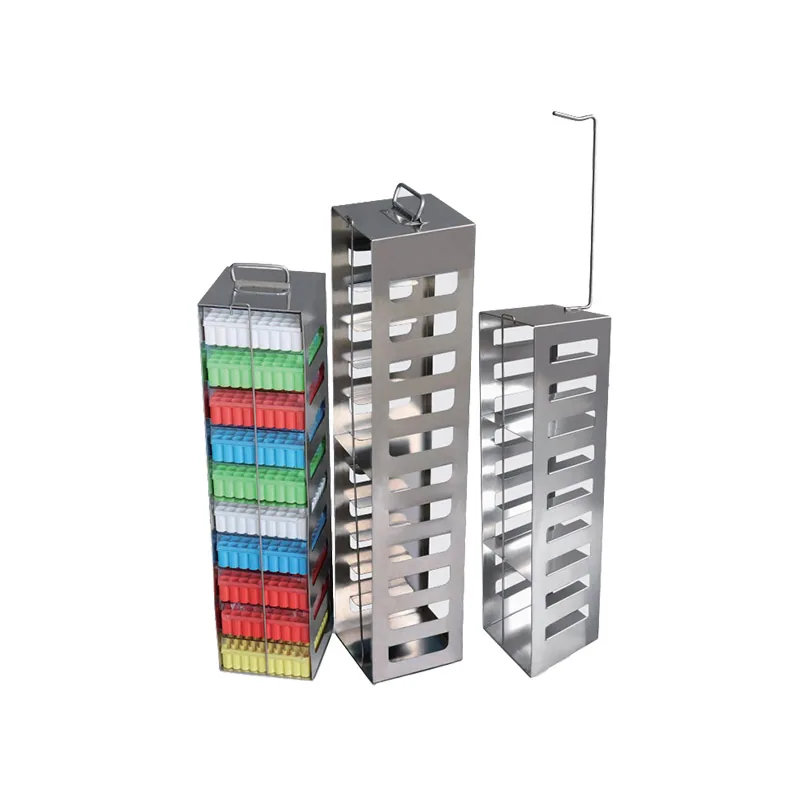

BIOBASE Freezer Racks is listed in VVON's laboratory refrigerators & freezers range for Bangladesh. Published models: BK-LD6, BK-LD8, BK-LD10, BK-LD4X3, BK-LD4X4, BK-LD5X3. Compare the remaining models in the specification tables. Compare usable capacity, temperature range, alarms and sample-storage requirements. For a quotation, send the sample type, usable capacity, temperature range and monitoring needs. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | Specification | Material | Size(W*D*H)(mm) | Freezer Box Size(mm) | Freezer Tube |
|---|---|---|---|---|---|
| BK-LD6 | 6 layers | 304 stainless steel | 142*140*344 | ≤133*133*52 | 1.5~2ml |
| BK-LD8 | 8 layers | 304 stainless steel | 142*140*455 | ≤133*133*52 | 1.5~2ml |
| BK-LD10 | 10 layers | 304 stainless steel | 142*140*568 | ≤133*133*52 | 1.5~2ml |
| BK-LD4X3 | 4 layers and 3 columns | 304 stainless steel | 420*140*242 | ≤133*133*52 | 1.5~2ml |
| BK-LD4X4 | 4 layers and 4 columns | 304 stainless steel | 560*140*242 | ≤133*133*52 | 1.5~2ml |
| BK-LD5X3 | 5 layers and 3 columns | 304 stainless steel | 420*140*290 | ≤133*133*52 | 1.5~2ml |
| BK-LD5X4 | 5 layers and 4 columns | 304 stainless steel | 560*140*295 | ≤133*133*52 | 1.5~2ml |
| BK-LD5X5 | 5 layers and 5 columns | 304 stainless steel | 685*140*295 | ≤133*133*52 | 1.5~2ml |
| BK-LD6X2 | 6 layers and 2 columns | 304 stainless steel | 290*140*348 | ≤133*133*52 | 1.5~2ml |
| BK-LD6X3 | 6 layers and 3 columns | 304 stainless steel | 420*140*348 | ≤133*133*52 | 1.5~2ml |
| BK-LD7X5 | 7 layers and 5 columns | 304 stainless steel | 685*140*406 | ≤133*133*52 | 1.5~2ml |
| Matching Model | Layer Count | Quantity Per Layer | Freezer Rack | Total Capacity |
|---|---|---|---|---|
| BDF-86H60 | 1 | 4 | BK-LD6 | 4 |
| BDF-86H128 | 1 | 6 | BK-LD10 | 6 |
| BDF-150H128 | 1 | 9 | BK-LD10 | 9 |
| BDF-150H138 | 1 | 12 | BK-LD8 | 12 |
| BDF-150H226 | 1 | 20 | BK-LD8 | 20 |
| BDF-86V58 | 1 | 2 | BK-LD6X2 | 2 |
| BDF-86V65 | 1 | 2 | BK-LD5X3 | 2 |
| BDF-86V65 | 1 | 2 | BK-LD6X3 | 2 |
| BDF-86V100 | 2 | 2 | BK-LD5X3 | 4 |
| BDF-86V108 | 2 | 3 | BK-LD4X3 | 6 |
| BDF-86V168/168T/168B/168BM | 3 | 3 | BK-LD4X3 | 9 |
| BDF-86V348/348T/348B/348BM | 4 | 3 | BK-LD4X4 | 12 |
| BDF-86V408D/418T/418BD | 4 | 4 | BK-LD4X4 | 16 |
| BDF-86V588/588D//608T/608BD | 4 | 4 | BK-LD5X5 | 16 |
| BDF-86V728 | 4 | 6 | BK-LD5X4 | 24 |
| BDF-86V838/838D | 4 | 6 | BK-LD5X5 | 24 |
| Matching Model | Freezer Box Specification | Matching Freezer Box Size(mm) | Quantity of Freezer Boxes | Quantity of Samples (100-well freezer box) |
|---|---|---|---|---|
| BDF-86H60 | 2 inches | ≤133*133*52 | 24 | 2400 |
| BDF-86H128 | 2 inches | ≤133*133*52 | 60 | 6000 |
| BDF-150H128 | 2 inches | ≤133*133*52 | 90 | 9000 |
| BDF-150H138 | 2 inches | ≤133*133*52 | 96 | 9600 |
| BDF-150H226 | 2 inches | ≤133*133*52 | 160 | 16000 |
| BDF-86V58 | 2 inches | ≤133*133*52 | 24 | 2400 |
| BDF-86V65 | 2 inches | ≤133*133*52 | 30 | 3000 |
| BDF-86V65 | 2 inches | ≤133*133*52 | 36 | 3600 |
| BDF-86V100 | 2 inches | ≤133*133*52 | 60 | 6000 |
| BDF-86V108 | 2 inches | ≤133*133*52 | 72 | 7200 |
| BDF-86V168/168T/168B/168BM | 2 inches | ≤133*133*52 | 108 | 10800 |
| BDF-86V348/348T/348B/348BM | 2 inches | ≤133*133*52 | 192 | 19200 |
| BDF-86V408D/418T/418BD | 2 inches | ≤133*133*52 | 256 | 25600 |
| BDF-86V588/588D//608T/608BD | 2 inches | ≤133*133*52 | 400 | 40000 |
| BDF-86V728 | 2 inches | ≤133*133*52 | 480 | 48000 |
| BDF-86V838/838D | 2 inches | ≤133*133*52 | 600 | 60000 |
Manufacturer catalogue checked 2026-09-28.
