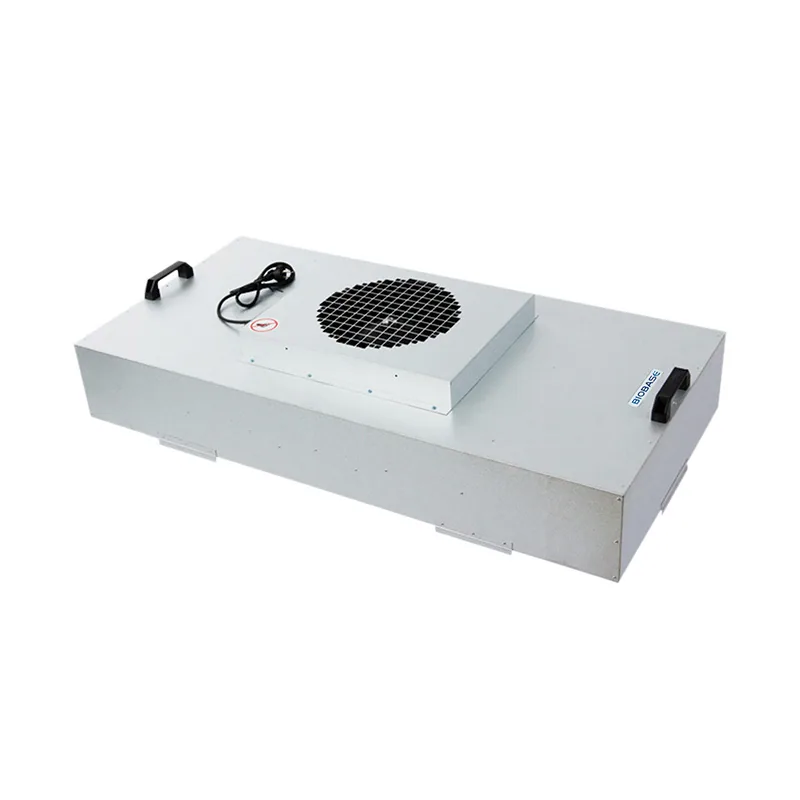

BIOBASE FFU(Fan Filter Unit)
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE FFU(Fan Filter Unit) is listed in VVON's laminar flow & clean-air equipment range for Bangladesh. Published models: FFU1000, FFU1200, FFU1500, FFU1800. Match airflow arrangement, working dimensions and cleanliness requirements to the process. For a quotation, send the process, work area, airflow requirements and room layout. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | FFU1000 | FFU1200 | FFU1500 | FFU1800 |
|---|---|---|---|---|
| External Size(W*D*H) | 975*575*380mm | 1175*575*380mm | 1475*575*380mm | 1775*575*380mm |
| Air Velocity | 0.45m/s±20% | 0.45m/s±20% | 0.45m/s±20% | 0.45m/s±20% |
| HEPA Filter | 99.999% efficiency at 0.3μm | 99.999% efficiency at 0.3μm | 99.999% efficiency at 0.3μm | 99.999% efficiency at 0.3μm |
| HEPA Filter Size(W*D*H) | 970*570*69mm | 1170*570*69mm | 1470*570*69mm | 1770*570*69mm |
| Blower | Built-in centrifugal blower | Built-in centrifugal blower | Built-in centrifugal blower | Built-in centrifugal blower |
| Noise | ≤60dB | ≤60dB | ≤60dB | ≤60dB |
| Consumption | 110W | 110W | 220W | 220W |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 50/60Hz | AC220V±10%, 50/60Hz; 110V±10%, 50/60Hz | AC220V±10%, 50/60Hz; 110V±10%, 50/60Hz | AC220V±10%, 50/60Hz; 110V±10%, 50/60Hz |
| Shell Material | Aluminium coated zinc plate | Aluminium coated zinc plate | Aluminium coated zinc plate | Aluminium coated zinc plate |
| Gross Weight | 60kg | 70kg | 90kg | 110kg |
| Package Size(W*D*H) | 1135*800*540mm | 1335*800*540mm | 1635*800*540mm | 1935*800*540mm |
Manufacturer catalogue checked 2026-09-28.
