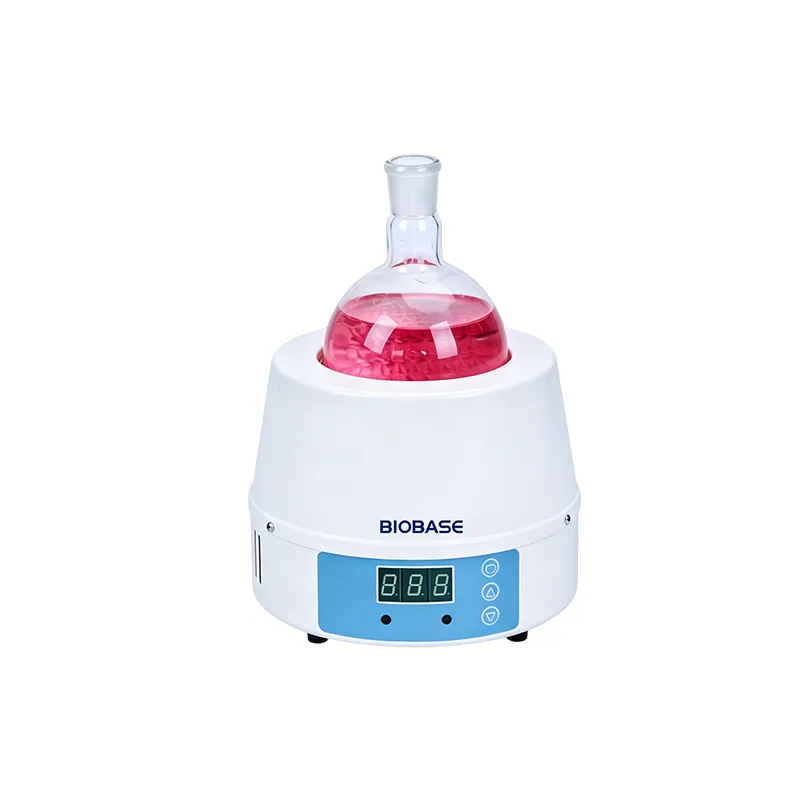

BIOBASE Electronic&Digital Heating Mantles
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Electronic&Digital Heating Mantles is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: HME-I / HMD-I(LED Display). Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | HME-I / HMD-I(LED Display) | HME-I / HMD-I(LED Display) | HME-I / HMD-I(LED Display) | HME-I / HMD-I(LED Display) | HME-I / HMD-I(LED Display) | HME-I / HMD-I(LED Display) | HME-I / HMD-I(LED Display) | HME-I / HMD-I(LED Display) | HME-I / HMD-I(LED Display) | HME-I / HMD-I(LED Display) |
|---|---|---|---|---|---|---|---|---|---|---|
| Capacity(ml) | 100 | 250 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 | 50000 |
| Max. Temp. | 380℃ | 380℃ | 380℃ | 380℃ | 380℃ | 380℃ | 380℃ | 380℃ | 380℃ | 380℃ |
| Working Time | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous |
| Consumption | 100W | 180W | 250W | 300W | 500W | 600W | 1000W | 1500W | 2500W | 6000W |
| Power Supply | AC220/110V±10%, 50/60Hz | AC220/110V±10%, 50/60Hz | AC220/110V±10%, 50/60Hz | AC220/110V±10%, 50/60Hz | AC220/110V±10%, 50/60Hz | AC220/110V±10%, 50/60Hz | AC220/110V±10%, 50/60Hz | AC220/110V±10%, 50/60Hz | AC220/110V±10%, 50/60Hz | AC220/110V±10%, 50/60Hz |
| Internal Size (mm) | Φ70*40 | Φ95*50 | Φ150*50 | Φ150*70 | Φ180*80 | Φ200*100 | Φ245*150 | Φ310*175 | Φ380*190 | Φ480*270 |
| External Size (D*H)mm | Φ195*150 | Φ195*150 | Φ195*150 | Φ240*175 | Φ280*200 | Φ289*240 | Φ354*270 | Φ414*310 | Φ489*285 | Φ690*475 |
| Packing Size (W*D*H) | 265*270*240mm | 265*270*240mm | 265*270*240mm | 320*320*260mm | 360*355*290mm | 360*360*330mm | 420*420*255mm | 470*470*330mm | 540*540*440mm | 775*775*560mm |
| Net Weight | 1.7kg | 1.8kg | 1.8kg | 2.55kg | 3.8kg | 4.2kg | 7kg | 10.2kg | 13.3kg | 53kg |
| Gross Weight | 2.5kg | 2.5kg | 2.5kg | 3.7kg | 5kg | 5.7kg | 10kg | 11.5kg | 17kg | 68kg |
Manufacturer catalogue checked 2026-09-28.
