Brand: BIOBASE | Category: Scientific & Laboratory Equipment

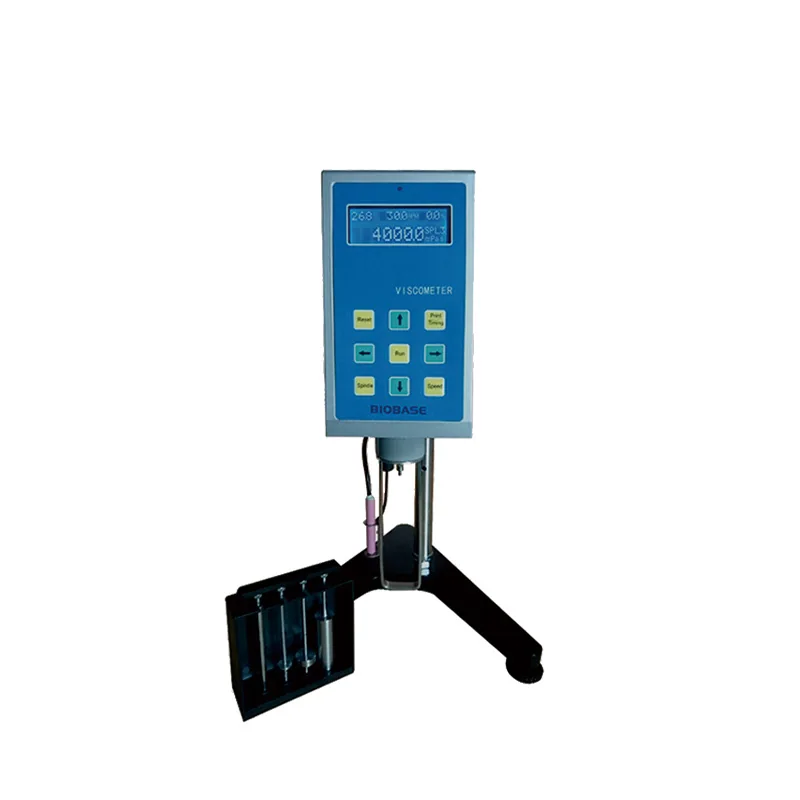

BIOBASE Digital Viscometer BDV Series is listed in VVON's particle size rheology & physical analysis range for Bangladesh. Published models: BDV-1A, BDV-1B, BDV-1C, BDV-2A, BDV-2B, BDV-2C. Match the material, property, measurement range and sample-preparation method. For a quotation, send the material, property to measure, measurement range and sample preparation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Series | BDV-1 | BDV-1 | BDV-1 | BDV-2 | BDV-2 | BDV-2 |
|---|---|---|---|---|---|---|
| Model | BDV-1A | BDV-1B | BDV-1C | BDV-2A | BDV-2B | BDV-2C |
| Measured Range(mPas) | 12~6M | 80~40M | 640~320M | 6~6M | 40~40M | 320~320M |
| Rotation Speed(rpm) | 0.1~99.9 non-polar shift | 0.1~99.9 non-polar shift | 0.1~99.9 non-polar shift | 0.1~200 non-polar shift | 0.1~200 non-polar shift | 0.1~200 non-polar shift |
| Number of Spindle | 4(L1~L4) | 6(R2~R7) | 6(R2~R7) | 4(L1~L4) | 6(R2~R7) | 6(R2~R7) |
| Measurement Accuracy | ±1%(FS)(Newtonian Fluid) | ±1%(FS)(Newtonian Fluid) | ±1%(FS)(Newtonian Fluid) | ±1%(FS)(Newtonian Fluid) | ±1%(FS)(Newtonian Fluid) | ±1%(FS)(Newtonian Fluid) |
| Repeatability | ±0.5%(FS)(Newtonian Fluid) | ±0.5%(FS)(Newtonian Fluid) | ±0.5%(FS)(Newtonian Fluid) | ±0.5%(FS)(Newtonian Fluid) | ±0.5%(FS)(Newtonian Fluid) | ±0.5%(FS)(Newtonian Fluid) |
| Power Supply | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz |
| Standard Accessory | RS232 standard output interface, RTD temperature probe | RS232 standard output interface, RTD temperature probe | RS232 standard output interface, RTD temperature probe | RS232 standard output interface, RTD temperature probe | RS232 standard output interface, RTD temperature probe | RS232 standard output interface, RTD temperature probe |
| Optional Accessory | Specially used printer | Specially used printer | Specially used printer | Specially used printer | Specially used printer | Specially used printer |
| L0 Spindle is for Option Measured Range(mPas) | 0.6~6000 | 6~60000 | 50~500000 | 0.3~6000 | 3~60000 | 25~500000 |
| R1 Spindle is for Option Measured Range(mPa.s) | / | 20~100000 | 160~800000 | / | 10~100000 | 80~800000 |
| Package Size(mm) | 420*350*380 | 410*350*560 | 410*350*560 | 420*350*380 | 410*350*560 | 410*350*560 |
| Gross Weight(kg) | 8.5 | 10.5 | 10.5 | 8.5 | 10.5 | 10.5 |
Manufacturer catalogue checked 2026-09-28.
