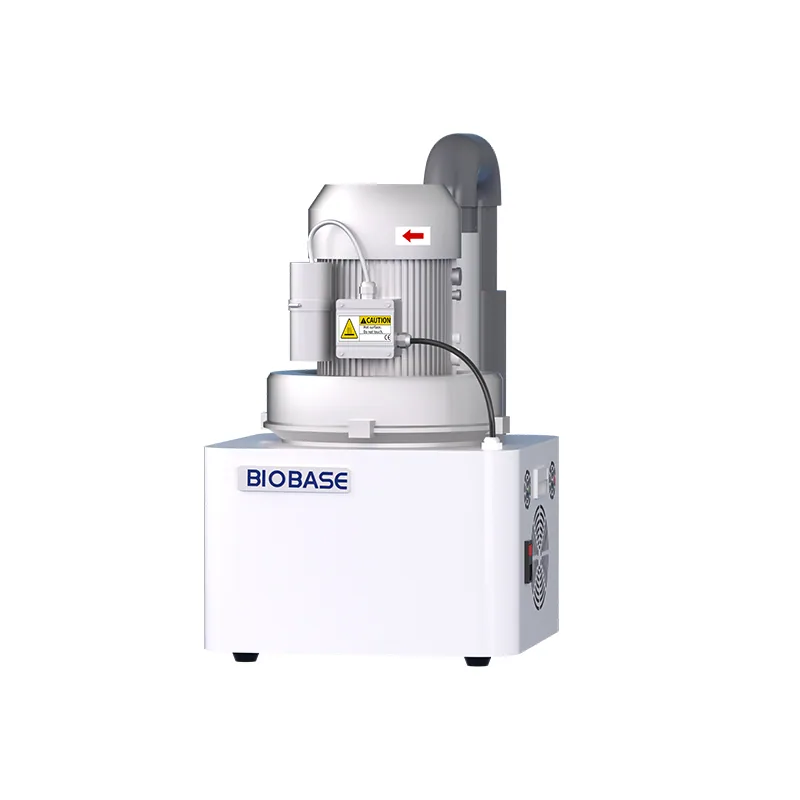

BIOBASE Dental Electric Suction System
Brand: BIOBASE | Category: Medical Equipment
BIOBASE Dental Electric Suction System is listed in VVON's dental equipment range for Bangladesh. Published models: BKX-FY02, BKX-FY03, BKX-FY05, BKX-FY07, BKX-FY10. Match treatment requirements, configuration, accessories and room utilities. For a quotation, send the treatment requirements, configuration, room utilities and accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BKX-FY02 | BKX-FY03 | BKX-FY05 | BKX-FY07 | BKX-FY10 |
|---|---|---|---|---|---|
| Number of Dental Chairs Supported | 1~3 units | 4~6 units | 6~8 units | 8~10 units | 10~15 units |
| Rated Suction Capacity | 780L/min | 900L/min | 1860L/min | 2680L/min | 3800L/min |
| Vacuum Range | -12~-17KPa | -12~-17KPa | -12~-17KPa | -12~-20KPa | -16~-25KPa |
| Noise | ≤57dB(A) | ≤60dB(A) | ≤62dB(A) | ≤63dB(A) | ≤68dB(A) |
| Power Supply | AC220V, 50Hz(Standard); AC110V/220V, 60Hz(Optional) | AC220V, 50Hz(Standard); AC110V/220V, 60Hz(Optional) | AC380V, 50Hz((Standard);; AC110V/220V/380V, 60Hz(Optional); AC220V, 50Hz(Optional) | AC380V, 50Hz((Standard);; AC110V/220V/380V, 60Hz(Optional); AC220V, 50Hz(Optional) | AC380V, 50Hz((Standard);; AC110V/220V/380V, 60Hz(Optional); AC220V, 50Hz(Optional) |
| Consumption | ≤1100W | ≤1300W | ≤2000W | ≤2900W | ≤3500W |
| External Size(W*D*H)mm | 550*500*670 | 550*500*670 | 900*600*1100 | 900*600*1100 | 900*600*1100 |
| Packing Size(W*D*H)mm | 630*630*810 | 630*630*810 | 980*680*1240 | 980*680*1240 | 980*680*1240 |
| Net Weight(kg) | 28 | 30 | 76 | 82 | 86 |
| Gross Weight (kg) | 32 | 36 | 96 | 102 | 106 |
Manufacturer catalogue checked 2026-09-28.
