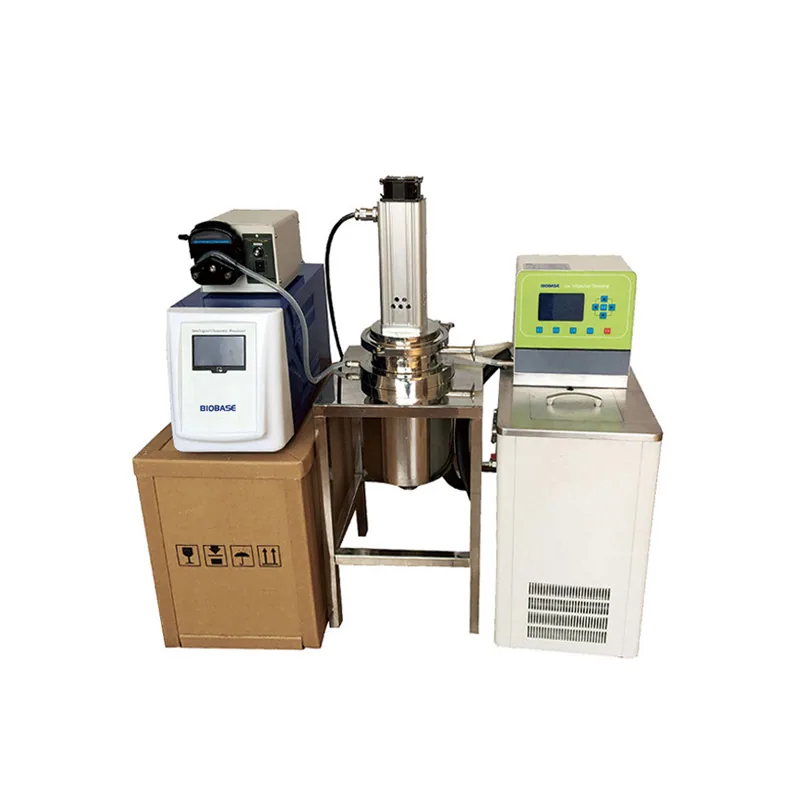

BIOBASE Continuous Flow Ultrasonic Cell Disruptor UCD-4000W-II
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Continuous Flow Ultrasonic Cell Disruptor UCD-4000W-II is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: UCD-4000W-II. Published details include Crushing Capacity/Once: 500~10000ml; Crushing Capacity/Continuously: 100L/day. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | UCD-4000W-II |
|---|---|
| Frequency | 19.5~20.5KHz |
| Standard Amplitude-change PoleΦ | Φ40*250mm or Φ40*370mm |
| Crushing Capacity/Once | 500~10000ml |
| Crushing Capacity/Continuously | 100L/day |
| Ultrasonic Power(W) | 1000~4000W, adjustable |
| Time Set | Optional: continuous/pulse |
| Max. Working Time | 99h59min59sec |
| Safety System | Over temperature; Time; Overload; No load |
| Standard Accessories | Main machine, energy converter, standard amplitude, sound proof box(or supporting frame) |
| Optional Accessories | Stainless steel reactor, peristaltic pump, low temperature water tank |
| Power Supply | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) |
| Package Size(W*D*H) | 675*305*450mm(Main body); 430*415*730mm(Soundproof box) |
| Gross Weight | 32kg |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
