Brand: BIOBASE | Category: Scientific & Laboratory Equipment

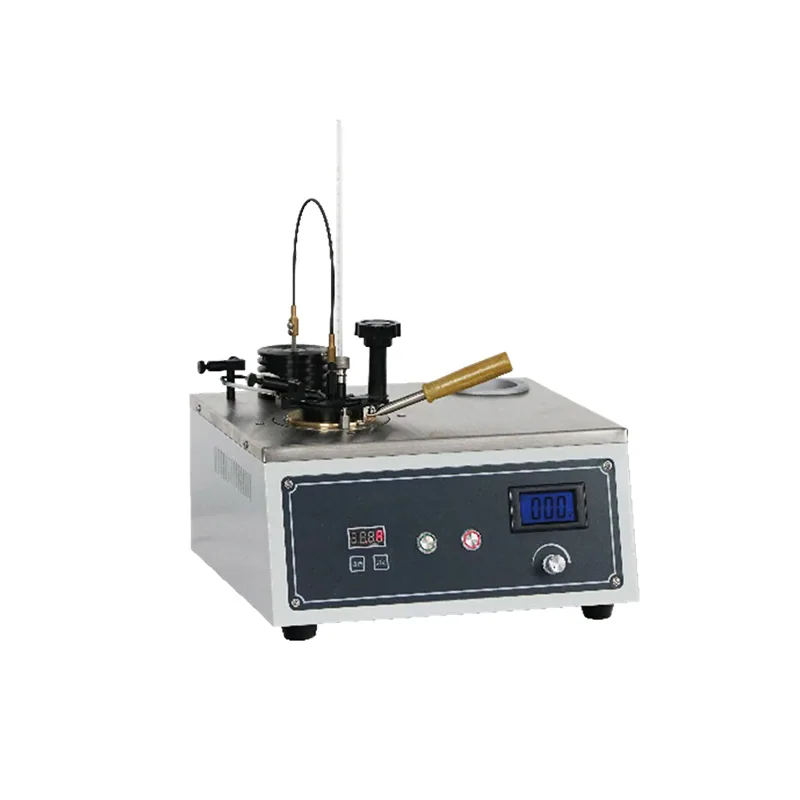

BIOBASE Closed-Cup Flash Point Tester is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: BK-FP261, BK-FP261D. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-FP261 | BK-FP261D |
|---|---|---|
| Ambient Temperature | 15~35°C | 15~35°C |
| Relative Humidity | ≤85% | ≤85% |
| Flash Point Determination | Mercury-in-glass thermometer. Specifications are as below: Scale -5°C~110°C, division 0.5°C Scale 20°C~150°C, division 1°C Scale 90°C~370°C, division 2°C | Range: ambient to 230°C Repeatability: ≤3°C Reproducibility: ≤4°C Accuracy: 0.1 °C |
| Oil Cup | Inner diameter: 50.7mm~50.8mm Depth: 55.7mm~56.0mm The scribed line depth of capacity of testing oil: 33.9mm~34.3mm. Capacity of testing oil about 70ml | Inner diameter: 50.7mm~50.8mm Depth: 55.7mm~56.0mm The scribed line depth of capacity of testing oil: 33.9mm~34.3mm. Capacity of testing oil about 70ml |
| Stirring Rate | Procedure A: (90~120)RPM, Procedure B: (250±10)RPM, Procedure C: (90～120)RPM | Procedure A: (90~120)RPM, Procedure B: (250±10)RPM, Procedure C: (90～120)RPM |
| Igniting Device | Igniting source: gas(or other civilian fuels, the same below) | Electric ignition. Diameter of Igniter: 0.7mm~0.8mm |
| Heating Device | The heating power is continuously adjustable from 0W to 600W | The heating power is continuously adjustable from 0W to 600W |
| Heating Rate | / | Procedure A: (5~6)°C/min, Procedure B: (1~1.5)°C/min, Procedure C: (3±0.5)°C/min |
| Consumption | ≤650W | ≤600W |
| Power Supply | AC 220V, 50Hz | AC 220V, 50Hz |
| External Size(W*D*H) | 370*320*300mm | 510*320*330mm |
| Package Size(W*D*H) | 650*460*360mm | 690*520*610mm |
| Gross Weight | 18kg | 35kg |
Manufacturer catalogue checked 2026-09-28.
