Brand: BIOBASE | Category: Medical Equipment

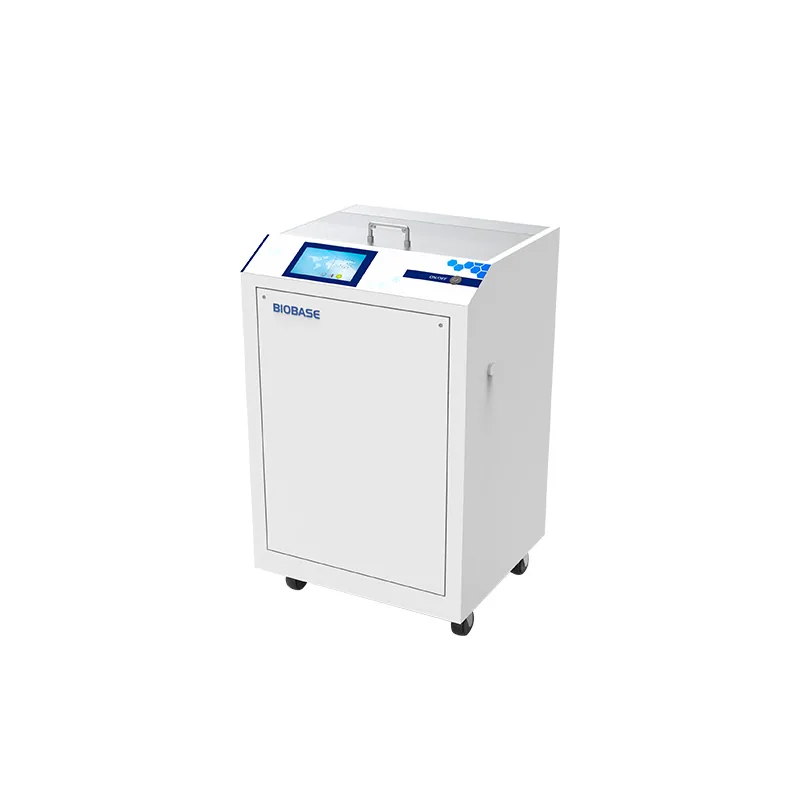

BIOBASE Blood Thaw Machine BJPX-PT6 BJPX-PT12 BJPX-PT24 is listed in VVON's blood bank & transfusion equipment range for Bangladesh. Published models: BJPX-PT6, BJPX-PT12, BJPX-PT24. Check component type, temperature requirements, monitoring and processing capacity. For a quotation, send the blood-component type, capacity, temperature monitoring and backup requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BJPX-PT6 | BJPX-PT12 | BJPX-PT24 |
|---|---|---|---|
| Thawing Type | Standard: Water bath type Optional: lsolated water type | Standard: Water bath type Optional: lsolated water type | Standard: Water bath type Optional: lsolated water type |
| Temp. Range | 37.0±3.0℃ | 37.0±3.0℃ | 37.0±3.0℃ |
| Temp. Resolution | ±0.1℃ | ±0.1℃ | ±0.1℃ |
| Water Storage Capacity | 20kg±5% | 58kg±5% | 98kg±5% |
| Max Thawing Quantity | 6pcs | 12pcs | 24pcs |
| Thawing Time | ≤16min, from -20℃ to thawing situation | ≤16min, from -20℃ to thawing situation | ≤16min, from -20℃ to thawing situation |
| Ambient Temp. | 18~30℃ | 18~30℃ | 18~30℃ |
| Consumption | 1000VA | 2000VA | 3600VA |
| Power Supply | Standard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz(External transformer) | Standard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz(External transformer) | Standard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz(External transformer) |
| External Size(W*D*H) | 550*500*470mm | 600*540*970mm | 720*600*990mm |
| Package Size(W*D*H) | 670*620*695mm | 744*714*1200mm | 860*745*1210mm |
| Net Weight | 25kg | 55kg | 80kg |
| Gross Weight | 42kg | 75kg | 105kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
