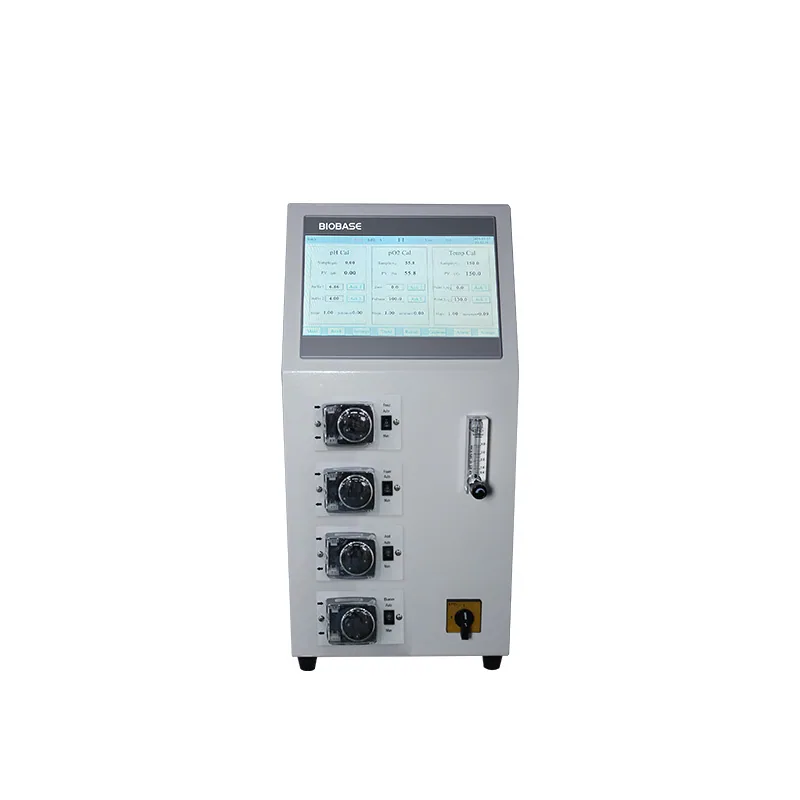

BIOBASE Biological Fermentation System BK-BR10
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Biological Fermentation System BK-BR10 is listed in VVON's microbiology & cell culture equipment range for Bangladesh. Published models: BK-BR10. Published details include Tank System / Capacity: 10L, Working volume: 70%; Stirring System / Max Speed: 1000rpm/min±5rpm. Match sample type, processing capacity and culture or sampling conditions. For a quotation, send the organism or sample type, workflow, throughput and environmental conditions. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-BR10 |
|---|---|
| Tank System / Capacity | 10L, Working volume: 70% |
| Tank System / Sterilization Method | Sterilization in off-position autoclave |
| Tank System / Tank Structure | Imported SUS316L high quality stainless steel(food hygiene grade), high strength acid and alkali corrosion resistant stainless steel tank body |
| Tank System / Aspect Ratio | 1:2(changeable) |
| Tank System / Polishing | Internal and external polishing, polishing accuracy is RA0.4, reduce the chance of infection. |
| Tank System / Tank Cover Interface | Flame ring inoculation*1, PH sensor interface*1, DO sensor interface*1, temperature sensor interface*1, spare ports *2(for feeding, defoamer and acid and alkali), sensor with foam, exhaust port with condensing device |
| Stirring System / Stirring Method | The magnetic stirring system is suspended on the strong magnetic machinery, and the magnetic stirring at the bottom of the tank without thimble is stable in speed. High performance mixing paddle, defoaming paddle, AC speed motor, stepless speed regulation |
| Stirring System / Sealing System | No mechanical seal, not easy to leak |
| Stirring System / Agitating Valve | Fermentation special standard six-blade flat paddle, the height of the blade can be adjusted, and different types of mixing paddle can be changed according to the special requirements of the fermentation process |
| Stirring System / Motor | Variable frequency and variable speed motor, speed setting controller |
| Stirring System / Stirring Shaft | The maximum stirring speed will not be lower than 980rpm during the life of the fermenter |
| Stirring System / Max Speed | 1000rpm/min±5rpm |
| Aerating System / Aerate | Rotameter manual control, according to the process requirements to adjust and control the flow of each gas |
| Aerating System / Air System | Configure primary fine filtering |
| Aerating System / Fine Filter Accuracy | 0.2μm |
| Temperature Control / Control Mode | Intelligent PID control |
| Temperature Control / Control Range | Cooling water temperature +5~65℃±0.2℃ |
| Temperature Control / Resolution | 0.1℃ |
| Pressure Control / Control Mode | Manual |
| Pressure Control / Control Range | 0~0.2MPa |
| PH Control / Control Mode | Two peristaltic pump switch control flow acid and base, automatic control, automatic metering, intelligent PID control |
| PH Control / Display Range | 0.00~14.00pH±0.01pH |
| PH Control / Control Range | 2.00~12.00pH±0.02pH |
| DO Control / Control Mode | It can be controlled with parameters such as speed, air flow, tank pressure and feeding, fermentation process sequence control(according to fermentation time, DO automatic variable control, at least 10 stages) |
| DO Control / Measuring Range | 0.1~150% |
| DO Control / Control Accuracy | ±3% |
| DO Control / Resolution | 0.1% |
| Foam Control / Detection | Electrodes automatically detect foam or liquid levels |
| Foam Control / Control Mode | Peristaltic pump automatically add defoamer or feed, and measure, automatic PID control and alarm |
| Defoaming Control / Sensitivity | 100~100000Ω |
| Defoaming Control / Detection | Automatic foam detection |
| Defoaming Control / Defoaming Method | Peristaltic pump automatically adds defoaming agent |
| Feeding system / Control Mode | Switch control, automatic flow and metering, automatic PID control, fermentation process segmentation control, the fermentation process is controlled in stages |
| Feeding system / Controller Function | Supplement quantity curve analysis, add quantity accumulation, display record, batch report analysis data saving |
| Biological Process Controller / Controls Parameter | Temperature, PH, Dissolved Oxygen, Speed, Tank Pressure, Air Flow, Foam, Liquid Level, Multiple Feed, etc |
| Biological Process Controller / Detecting Parameter | Temperature, PH, Dissolved oxygen, Speed, Tank pressure, Air flow, Exhaust, Foam, Multiple feed and other parameters |
| Biological Process Controller / Off-line Parameter | Can calculate or input the necessary indirect parameters of fermentation process, such as OUR, CER, KLA, ammonia nitrogen, residual sugar, titer, viscosity, settlement, measurement function: can be measured for feed, bubble, acid and base |
| Standard Accessories | Air compressor*1, Peristaltic pump*4, Tank*1, Rotameter*1, Inoculating loop*1, 250ml Feed bottle*2, 500ml Feed bottle*1, 1000ml Feed bottle*1, filter*6, PH buffer*2 |
| Power Supply | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) |
| Net Weight | 135kg |
| Package Size(L*W*H) | 1200*820*1300mm |
| Gross Weight | 150kg |
