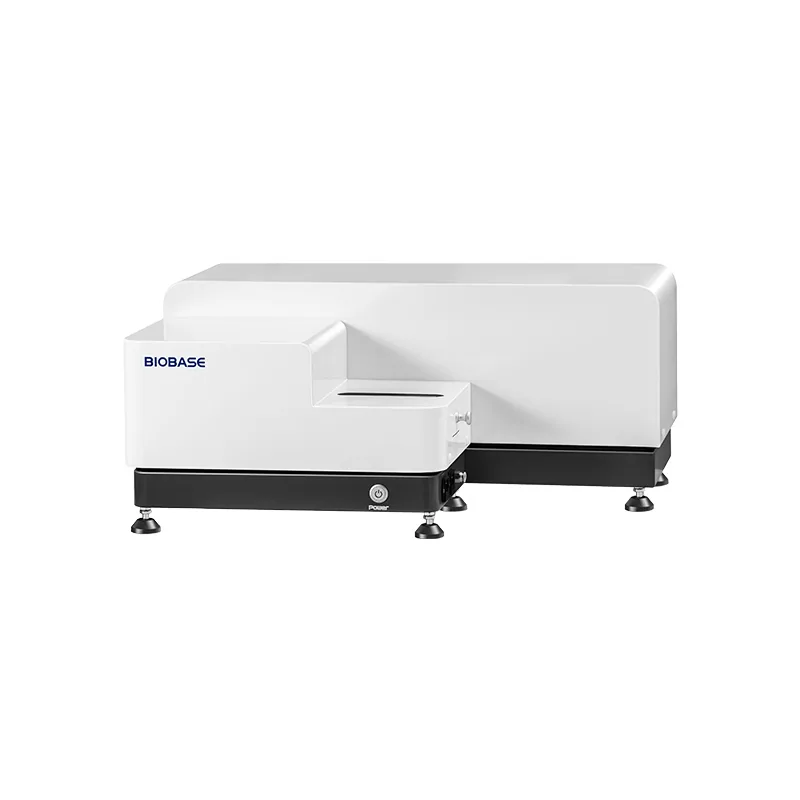

BIOBASE Automatic Laser Particle Size Analyzer
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Automatic Laser Particle Size Analyzer is listed in VVON's particle size rheology & physical analysis range for Bangladesh. Published models: BPSA-2020L, BPSA-5100H, BPSA-5200H, BPSA-6100C, BPSA-6100D. Match the material, property, measurement range and sample-preparation method. For a quotation, send the material, property to measure, measurement range and sample preparation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BPSA-2020L | BPSA-5100H | BPSA-5200H | BPSA-6100C | BPSA-6100D |
|---|---|---|---|---|---|
| Test Method | Dry method | Wet method | Wet method | Wet method | Dry and wet method |
| Test Range | 0.1~800μm | 0.1~800μm | 0.1~1000μm | 0.1~2000μm | Dry method: 0.1~1500μm; wet method: 0.01~1500μm |
| Number of Detector Channels | 87 | 76 | 86 | 96 | Dry method: 96; wet method: 127 |
| Accuracy Error | <1% (D50 value of standard sample) | <0.5% (D50 value of standard sample) | <0.5% (D50 value of standard sample) | <0.5% (D50 value of standard sample) | <0.5% (D50 value of standard sample) |
| Repeatability Error | <1% (D50 value of standard sample) | <0.5% (D50 value of standard sample) | <0.5% (D50 value of standard sample) | <0.5% (D50 value of standard sample) | <0.5% (D50 value of standard sample) |
| Dispersion | High-pressure air dispersion; mechanical stepless speed-regulating vibration feeding; oil-free silent air compressor with dust filtration function, continuously adjustable from 0.1-0.8MPa; can filter moisture from the air. | Ultrasonic frequency: f=40KHz, power: p=80W, time: adjustable; equipped with ultrasonic anti-dry-burning feature. Integrated circulation and stirring design, speed: 100~3950rpm adjustable. Rated circulation flow rate: 0~10L/min adjustable; Rated power: 25W. | Ultrasonic frequency: f=40KHz, power: p=80W, time: adjustable; equipped with ultrasonic anti-dry-burning feature. Integrated circulation and stirring design, speed: 100~3950rpm adjustable. Rated circulation flow rate: 0~10L/min adjustable; Rated power: 25W. | Ultrasonic frequency: f=40KHz, power: p=80W, time: adjustable; equipped with ultrasonic anti-dry-burning feature. Integrated circulation and stirring design, speed: 100~3950rpm adjustable. Rated circulation flow rate: 0~10L/min adjustable; Rated power: 25W. | Dry method: High-pressure air dispersion; mechanical stepless speed-regulating vibration feeding; oil-free silent air compressor with dust filtration function, continuously adjustable from 0.1-0.8MPa; can filter moisture from the air. Wet method: Ultrasonic frequency: f=40KHz, power: p=80W, time: adjustable; equipped with ultrasonic anti-dry-burning feature. Integrated circulation and stirring design, speed: 100~3950rpm adjustable. Rated circulation flow rate: 0~10L/min adjustable; Rated power: 25W. |
| Power Supply | Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz(External transformer) | Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz | Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz | Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz | Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz(External transformer) |
| Product Size(W*D*H) | 700*495*300mm | 980*410*450mm | 800*280*335mm | 800*280*335mm | 1040*505*335mm |
| Net Weight | 35kg | 30kg | 38kg | 38kg | 50kg |
| Packing Size(W*D*H) | 840*390*500mm 580*380*440mm 430*430*590mm 450*450*720mm 350*350*400mm | 940*420*520mm | 940*420*520mm | 1200*500*500mm | 1200mm*380mm*520mm 700mm*400mm*530mm 430mm*430mm*590mm 350mm*350mm*400mm 450mm*450mm*795mm |
| Gross Weight | 41kg 21kg 10kg 30kg 12kg | 45kg | 45kg | 55kg | 52kg 33kg 10kg 12kg 38kg |
Manufacturer catalogue checked 2026-09-28.
