Brand: BIOBASE | Category: Scientific & Laboratory Equipment

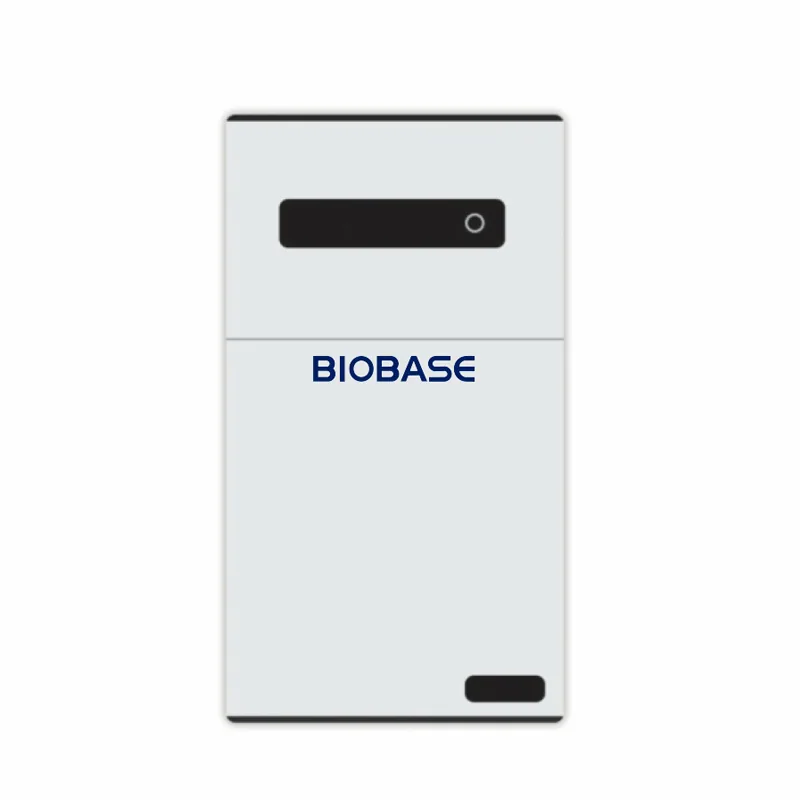

BIOBASE Automatic Gel Imaging and Analysis System BK-AG1000 BK-AG200 (Customized) is listed in VVON's electrophoresis & gel imaging range for Bangladesh. Published models: BK-AG1000, BK-AG2000. Match gel format, sample capacity, power supply and imaging method. For a quotation, send the gel type, sample count, detection method and imaging requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Mode | BK-AG1000 | BK-AG2000 |
|---|---|---|
| Pixel | 2592×1944(5.03MP) | 3000×4000(12MP) |
| Exposure Time | 1ms~3000ms | 1ms~60min |
| QE Value | High QE: >65% | High QE: >75% |
| Binning | 1×1 | 1×1, 2×2, 4×4 |
| Bit Depth | 16 bit(0-65535) | 16 bit(0-65535) |
| OD | ≥4.8OD | ≥4.8OD |
| Lens | F=1.4, 20 million auto focus lens | F=1.4, 20 million auto focus lens |
| Light Source | Trans-UV 302nm; Epi-White LED; Trans-White UV to white sample plate; Epi-UV 254nm, 302nm, 365nm for option | Trans-UV 302nm; Epi-White LED; Trans-White UV to white sample plate; Epi-UV 254nm, 302nm, 365nm for option |
| Filters | 590nm, Others for option | 590nm, Others for option |
| UV Area | 21×21cm | 21×21cm |
| Timing Off | 1~60 mins | 1~60 mins |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
