Brand: BIOBASE | Category: Scientific & Laboratory Equipment

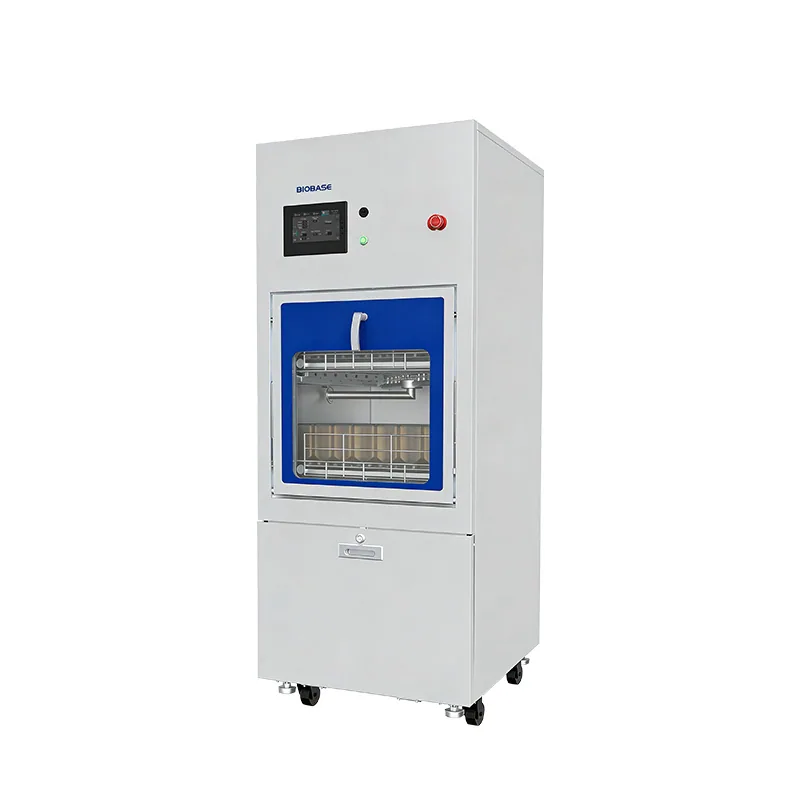

BIOBASE Automatic Drinking Bottle Washer BK-CW330 BK-CW330Z is listed in VVON's autoclaves & sterilisation equipment range for Bangladesh. Published models: BK-CW330, BK-CW330Z. Match chamber size, load type, cycle requirements and available utilities. For a quotation, send the load type, chamber capacity, cycle requirements and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-CW330 | BK-CW330Z | BK-CW330Z | BK-CW330Z |
|---|---|---|---|---|
| Capacity | 330L | 330L | 330L | 330L |
| Cleaning Volume | 200ml drinking bottle can be cleaned 180, 500ml drinking bottle can be cleaned 72 | 200ml drinking bottle can be cleaned 180, 500ml drinking bottle can be cleaned 72 | 200ml drinking bottle can be cleaned 180, 500ml drinking bottle can be cleaned 72 | 200ml drinking bottle can be cleaned 180, 500ml drinking bottle can be cleaned 72 |
| Opening Mode | Manual | Manual | Manual | Manual |
| Control System | PLC/Siemens | PLC/Siemens | PLC/Siemens | PLC/Siemens |
| Touch Screen | 7 inch | 7 inch | 7 inch | 7 inch |
| Cleaning Time | Quick cleaning program can be cleaned once in 4~6 minutes | Quick cleaning program can be cleaned once in 4~6 minutes | Quick cleaning program can be cleaned once in 4~6 minutes | Quick cleaning program can be cleaned once in 4~6 minutes |
| Cleaning Temperature | ＞60℃(Adjustable) | ＞60℃(Adjustable) | ＞60℃(Adjustable) | ＞60℃(Adjustable) |
| Rinsing Temperature | ＞82℃(Adjustable) | ＞82℃(Adjustable) | ＞82℃(Adjustable) | ＞82℃(Adjustable) |
| Drying Temperature | RT~120℃(Optional) | RT~120℃(Optional) | RT~120℃(Optional) | RT~120℃(Optional) |
| Heating Method | Electric heating | Steam heating | Steam heating | Steam heating |
| Steam source | / | Pressure: 0.3~0.5Mpa, Flow Rate: 50kg/h | Pressure: 0.3~0.5Mpa, Flow Rate: 50kg/h | Pressure: 0.3~0.5Mpa, Flow Rate: 50kg/h |
| Water Source | Softened Water: Pressure: 0.2~0.5Mpa, Flow Rate: 15L/min | Softened Water: Pressure: 0.2~0.5Mpa, Flow Rate: 15L/min | Softened Water: Pressure: 0.2~0.5Mpa, Flow Rate: 15L/min | Softened Water: Pressure: 0.2~0.5Mpa, Flow Rate: 15L/min |
| Consumption | 31KW | 31KW | 31KW | 2KW |
| Power Supply | AC380/220V, 50Hz | AC380/220V, 50Hz | AC380/220V, 50Hz | AC380/220V, 50Hz |
| Power Supply(Optional) | AC220V, 60Hz; 220V, 60Hz(Three phase); 380V, 60Hz; 110V, 50/60Hz | AC220V, 60Hz; 220V, 60Hz(Three phase); 380V, 60Hz; 110V, 50/60Hz | AC220V, 60Hz; 220V, 60Hz(Three phase); 380V, 60Hz; 110V, 50/60Hz | AC220V, 60Hz; 220V, 60Hz(Three phase); 380V, 60Hz; 110V, 50/60Hz |
| External Size(W*D*H) | 690*790*1950mm | 690*790*1950mm | 690*790*1950mm | 690*790*1950mm |
| Net Weight | 240kg | 240kg | 240kg | 240kg |
| Package Size(W*D*H) | 810*990*2185mm | 810*990*2185mm | 810*990*2185mm | 810*990*2185mm |
| Gross Weight | 320kg | 320kg | 320kg | 320kg |
Manufacturer catalogue checked 2026-09-28.
