Brand: BIOBASE | Category: Medical Equipment

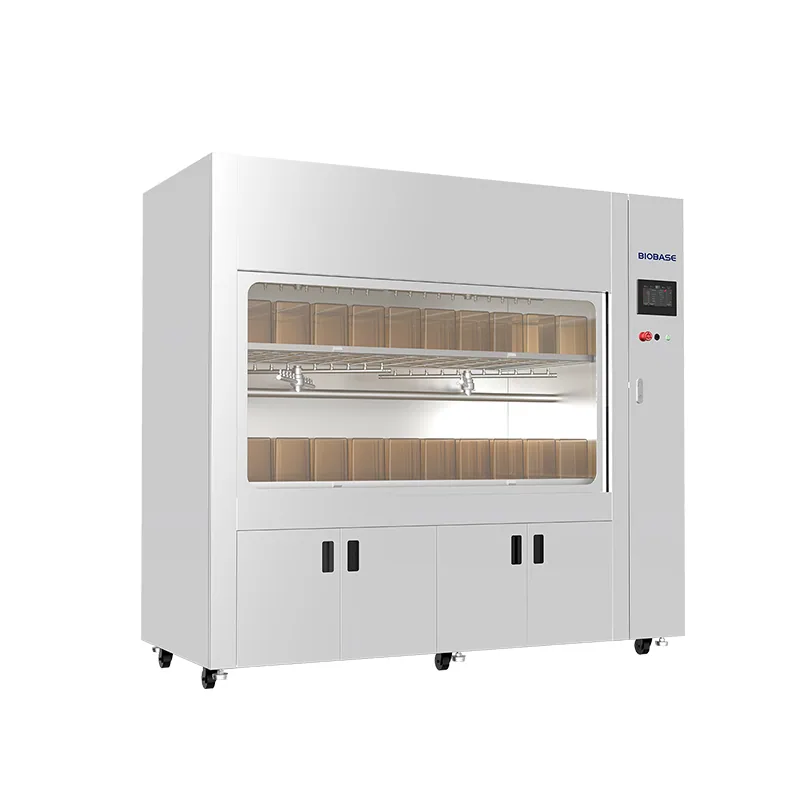

BIOBASE Automatic Animal Cage Washer BKCW-1500 BKCW-1500Z is listed in VVON's veterinary laboratory equipment range for Bangladesh. Published models: BKCW-1500, BKCW-1500Z. Check supported species, sample type, test menu and consumable compatibility. For a quotation, send the species, sample type, expected workload and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BKCW-1500 | BKCW-1500Z | BKCW-1500Z | BKCW-1500Z |
|---|---|---|---|---|
| Capacity(L) | 1500L | 1500L | 1500L | 1500L |
| Cleaning Volume | Up to 40 mouse IVC cages can be cleaned | Up to 40 mouse IVC cages can be cleaned | Up to 40 mouse IVC cages can be cleaned | Up to 40 mouse IVC cages can be cleaned |
| Opening Mode | Automatic | Automatic | Automatic | Automatic |
| Control System | PLC/Siemens | PLC/Siemens | PLC/Siemens | PLC/Siemens |
| Touch Screen | 7 Inch | 7 Inch | 7 Inch | 7 Inch |
| Cleaning Time | Quick cleaning program can be cleaned once in 4~6 minutes | Quick cleaning program can be cleaned once in 4~6 minutes | Quick cleaning program can be cleaned once in 4~6 minutes | Quick cleaning program can be cleaned once in 4~6 minutes |
| Cleaning Temperature | ＞60°C (Adjustable) | ＞60°C (Adjustable) | ＞60°C (Adjustable) | ＞60°C (Adjustable) |
| Rinsing Temperature | ＞82°C (Adjustable) | ＞82°C (Adjustable) | ＞82°C (Adjustable) | ＞82°C (Adjustable) |
| Drying Temperature | RT~120℃(Optional) | RT~120℃(Optional) | RT~120℃(Optional) | RT~120℃(Optional) |
| Heating Method | Electric Heating | Steam Heating | Steam Heating | Steam Heating |
| Steam Source | / | Pressure:0.3~0.5Mpa,Flow Rate: 50Kg/h | Pressure:0.3~0.5Mpa,Flow Rate: 50Kg/h | Pressure:0.3~0.5Mpa,Flow Rate: 50Kg/h |
| Water Source | Softened Water:Pressure:0.2~0.5Mpa,Flow Rate: 25L/min | Softened Water:Pressure:0.2~0.5Mpa,Flow Rate: 25L/min | Softened Water:Pressure:0.2~0.5Mpa,Flow Rate: 25L/min | Softened Water:Pressure:0.2~0.5Mpa,Flow Rate: 25L/min |
| Compressed Air Source | Pressure: 0.5~0.7Mpa,Flow Rate: 100L/min | Pressure: 0.5~0.7Mpa,Flow Rate: 100L/min | Pressure: 0.5~0.7Mpa,Flow Rate: 100L/min | Pressure: 0.5~0.7Mpa,Flow Rate: 100L/min |
| Consumption | 34KW | 34KW | 34KW | 4KW |
| Power Supply | AC380, 50Hz | AC380, 50Hz | AC380, 50Hz | AC380, 50Hz |
| Power Supply(Optional) | AC220V, 60Hz(Three phase); 380V, 60Hz | AC220V, 60Hz(Three phase); 380V, 60Hz | AC220V, 60Hz(Three phase); 380V, 60Hz | AC220V, 60Hz(Three phase); 380V, 60Hz |
| External Size(W*D*H) | 2140*925*1950mm | 2140*925*1950mm | 2140*925*1950mm | 2140*925*1950mm |
| Net Weight | 420kg | 420kg | 420kg | 420kg |
| Package Size(W*D*H) | 2250*1050*2160mm | 2250*1050*2160mm | 2250*1050*2160mm | 2250*1050*2160mm |
| Gross Weight | 500kg | 500kg | 500kg | 500kg |
Manufacturer catalogue checked 2026-09-28.
