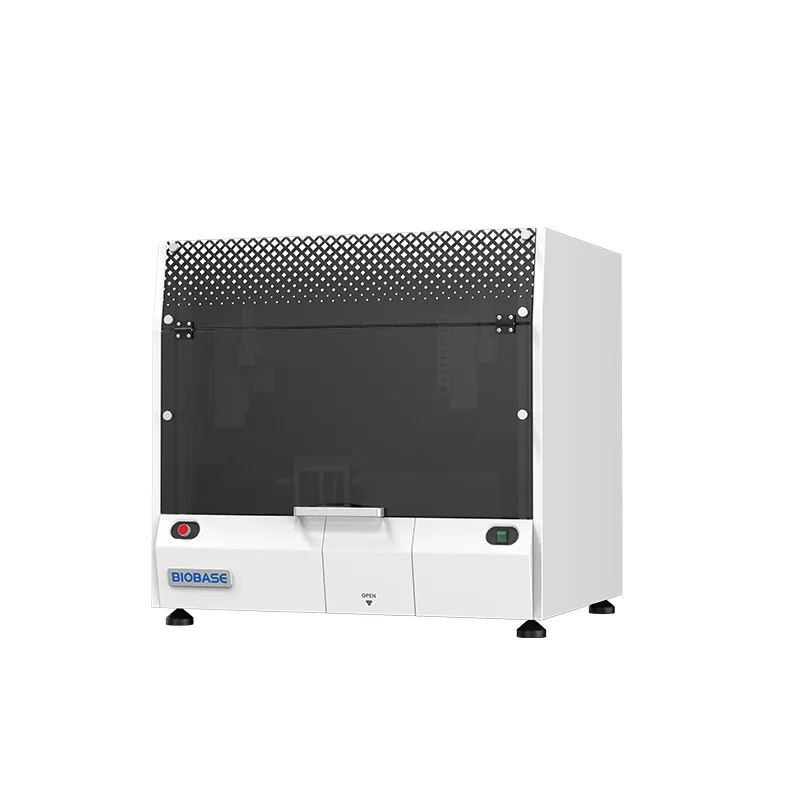

BIOBASE Auto ELISA Processor BIOBASE1001
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Auto ELISA Processor BIOBASE1001 is listed in VVON's microplate readers & washers range for Bangladesh. Published models: BIOBASE1001. Compare assay format, wavelength requirements, plate compatibility and data handling. For a quotation, send the assay type, plate format, wavelengths and daily workload. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BIOBASE1001 | BIOBASE1001 |
|---|---|---|
| Sample&Reagent Unit | Sample Racks | 6*20 push-pull sample rack |
| Sample&Reagent Unit | Sampling Channel | 1 channel |
| Sample&Reagent Unit | Liquid Level Detection | Air pressure level detection, clot detection function |
| Sample&Reagent Unit | Tip | 1000μl, 2 tip racks |
| Sample&Reagent Unit | Pipetting | 10μl~1000μl |
| Sample&Reagent Unit | Pipetting Precision | 100μl: CV≤1%, Accuracy≤2.5% 1000μl: CV≤0.5%, Accuracy≤1% |
| Sample&Reagent Unit | Reagent Position | 2 reagent racks |
| Sample&Reagent Unit | Dilution Plate Position | 1 dilution plate position with incubation and shaking |
| Washing Unit | Washer | 1 unit |
| Washing Unit | Washing Head | 16-channel(32-pin), double row cleaning, hanging installation, with leakage recovery |
| Washing Unit | Injection Uniformity | CV<1.5% |
| Washing Unit | Washing Residual | <2μl |
| Reading Unit | Reading Channels | 8 independent photometric channels, mono and dichromatic reading |
| Reading Unit | Absorbance Range | 0.000~4.000Abs |
| Reading Unit | Linear Range | 0.000~3.000Abs |
| Reading Unit | Repeatability | CV≤1.0% |
| Reading Unit | Stability | ≤±0.003Abs |
| Reading Unit | Spectral Range | 400~700nm |
| Reading Unit | Optical Filters | 4 standard filters(405, 450, 492, 630nm) Total 10 filters positions |
| Reading Unit | Reading Accuracy | ≤±0.02Abs from 0.0 to 1.0 OD ≤±0.03Abs from 1.0 to 2.0 OD |
| Reading Unit | Sensitivity | ≥0.01mg/L |
| Reading Unit | Channel Difference | ≤0.02Abs |
| Incubation Unit | Incubators | 2 shaking incubators |
| Incubation Unit | Cover Position | 1(2 covers) |
| Incubation Unit | Heating Method | Dry heating with cover |
| Incubation Unit | Shaking Function | Horizontal circular oscillation, 1~3 levels adjustable, amplitude 2.5mm |
| Incubation Unit | Temperature Range | RT to 60 °C |
| Incubation Unit | Temperature Uniformity | ±0.5℃ |
| Incubation Unit | Temperature Fluctuation | ±0.5℃ |
| Data Management | Software | Above Windows 7 system |
| Data Management | LIS System | Bi-direction, support HL7 protocol |
| Data Management | Results | Absorbance and results reviewable by software |
| Data Management | Printer | External optional |
| Data Management | Built-in Scanner | Optional |
| Other Function | Biosafety Protection | Optional(Negative pressure working zone, HEPA filter) |
| Other Function | Disinfection | UV lamp |
| Other Function | Lighting | LED |
| Other Function | IAP Function | Firmware can be upgraded online at any time |
| Working Condition | Power Supply | AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional) |
| Working Condition | Temperature | 10~40℃ |
| Working Condition | Humidity | 30~80% |
| Size&Weight | External Size(W*D*H) | 870*680*870; 465*475*700mm |
| Size&Weight | Net Weight | 155kg; 55kg |
| Size&Weight | Package Size(W*D*H) | 1050*850*1150mm 1100*820*750mm |
| Size&Weight | Gross Weight | 210kg; 105kg |
Manufacturer catalogue checked 2026-09-28.
