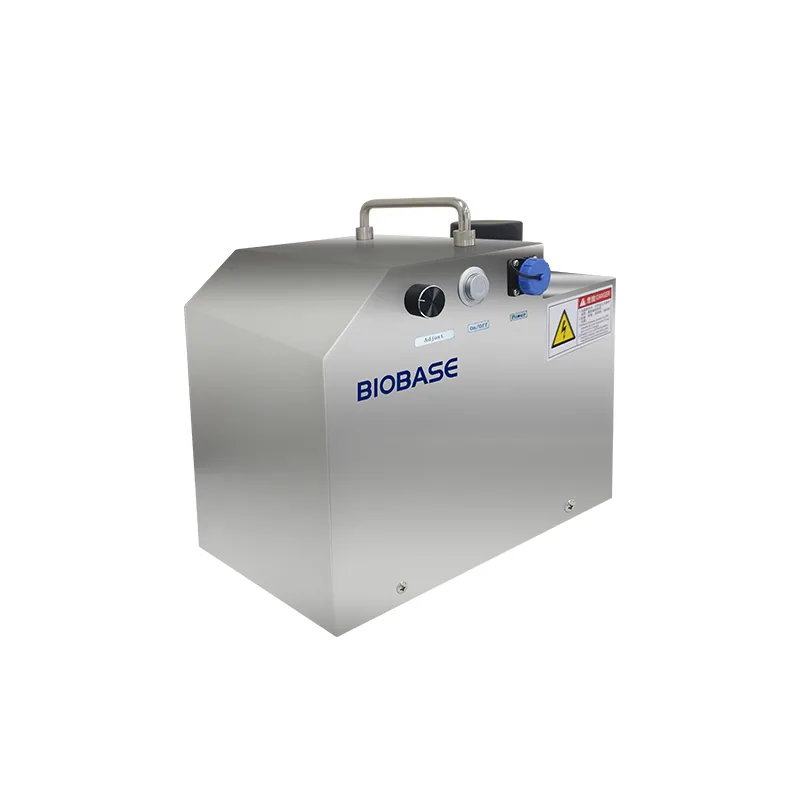

BIOBASE Air flow Tester
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Air flow Tester is listed in VVON's air quality & cleanroom testing range for Bangladesh. Published models: BK-AF09. Match measured parameters, sampling flow, range and calibration requirements. For a quotation, send the application, measured parameter, sampling method and required range. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-AF09 |
|---|---|
| Optimal Single-fill Water Volum | Up to the indicated level(3000ml) |
| Atomization Module Power Supply | DC 45V |
| Aerosol Output | 7,000±500ml/h |
| Droplet Size | 1~10µm |
| Smoke Delivery Rate | 1.3m³/min |
| Optimal Water Level for Atomization | 28mm |
| Plume Height | 100~150mm |
| Acceptable Water Conductivity | 0.15~1.00ms/cm |
| Consumption | 350W |
| Power Supply | AC220V, 50/60Hz(Standard); AC110V, 60Hz(Optional, external transformer) |
| External Size(W*D*H) | 200*300*270mm |
| Package Size(W*D*H) | Main Instrument: 300*350*350mm;; Accessories: 135*135*935mm |
| Net Weight | 7.3kg |
| Gross Weight | Main Instrument: 11.5kg;; Accessories: 2kg |
Manufacturer catalogue checked 2026-09-28.
