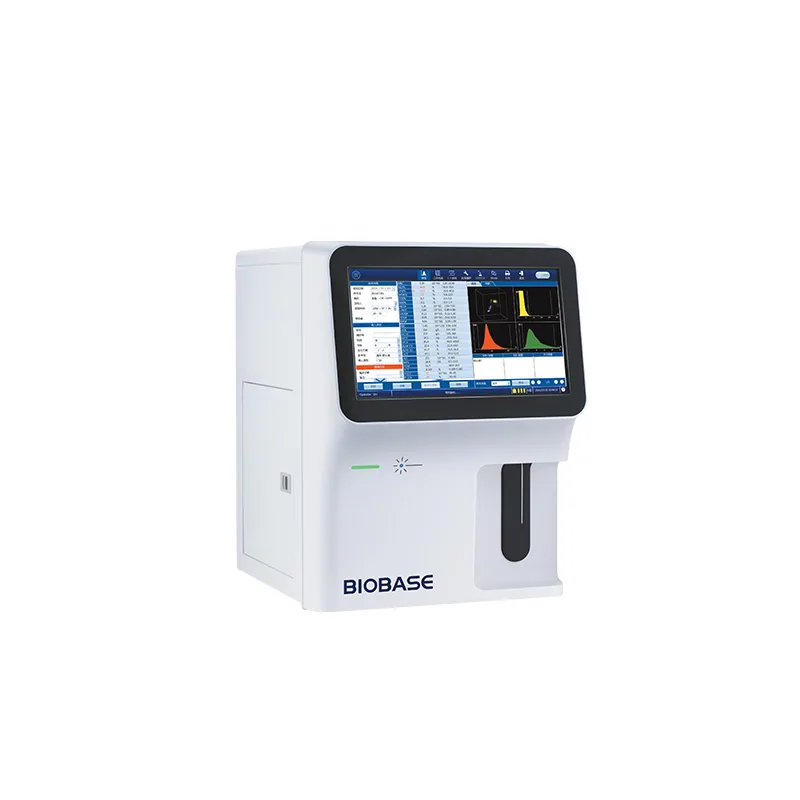

BIOBASE 5-Part Veterinary Hematology Analyzer BK-6310VET
Brand: BIOBASE | Category: Medical Equipment
BIOBASE 5-Part Veterinary Hematology Analyzer BK-6310VET is listed in VVON's veterinary laboratory equipment range for Bangladesh. Published models: BK-6310VET. Check supported species, sample type, test menu and consumable compatibility. For a quotation, send the species, sample type, expected workload and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-6310VET | BK-6310VET | BK-6310VET | BK-6310VET |
|---|---|---|---|---|
| Throughput | 60 Tests/hour | 60 Tests/hour | 60 Tests/hour | 60 Tests/hour |
| Sample Profile | Dog, cat, camel, bird, horse, cattle, cow, goat, sheep, pig, mouse, monkey | Dog, cat, camel, bird, horse, cattle, cow, goat, sheep, pig, mouse, monkey | Dog, cat, camel, bird, horse, cattle, cow, goat, sheep, pig, mouse, monkey | Dog, cat, camel, bird, horse, cattle, cow, goat, sheep, pig, mouse, monkey |
| Assay Items | 5 parts, 25 parameters, 3 histograms, 3D scattergram | 5 parts, 25 parameters, 3 histograms, 3D scattergram | 5 parts, 25 parameters, 3 histograms, 3D scattergram | 5 parts, 25 parameters, 3 histograms, 3D scattergram |
| Principle | Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test | Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test | Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test | Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test |
| Test Mode | CBC mode, CBC+DIFF mode Venous whole blood, prediluted | CBC mode, CBC+DIFF mode Venous whole blood, prediluted | CBC mode, CBC+DIFF mode Venous whole blood, prediluted | CBC mode, CBC+DIFF mode Venous whole blood, prediluted |
| Sample Volume | CBC+DIFF mode: 19.8μl CBC mode: 10μl prediluted blood: 20μl | CBC+DIFF mode: 19.8μl CBC mode: 10μl prediluted blood: 20μl | CBC+DIFF mode: 19.8μl CBC mode: 10μl prediluted blood: 20μl | CBC+DIFF mode: 19.8μl CBC mode: 10μl prediluted blood: 20μl |
| Parameters | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS#. 4 research parameters: ALY%, ALY#, LIC%, LIC# | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS#. 4 research parameters: ALY%, ALY#, LIC%, LIC# | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS#. 4 research parameters: ALY%, ALY#, LIC%, LIC# | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS#. 4 research parameters: ALY%, ALY#, LIC%, LIC# |
| Performance | Item | Linearity range | Carry Over | CV |
| Performance | WBC | 1~99.9*10^(9)/L | ≤0.5% | ≤2.0% |
| Performance | RBC | 0.3~7*10^(12)/L | ≤0.5% | ≤1.5% |
| Performance | HGB | 20~240g/L | ≤0.5% | ≤1.5% |
| Performance | PLT | 20~999*10^(9)/L | ≤1.0% | ≤4.0% |
| Storage | 300,000 results including histograms, scattergrams and patient information | 300,000 results including histograms, scattergrams and patient information | 300,000 results including histograms, scattergrams and patient information | 300,000 results including histograms, scattergrams and patient information |
| Interface | 4 USB ports, 1 LAN port, Bi-direction LIS, support HL7 protocol, Internal RFID reader | 4 USB ports, 1 LAN port, Bi-direction LIS, support HL7 protocol, Internal RFID reader | 4 USB ports, 1 LAN port, Bi-direction LIS, support HL7 protocol, Internal RFID reader | 4 USB ports, 1 LAN port, Bi-direction LIS, support HL7 protocol, Internal RFID reader |
| System | LINUS system | LINUS system | LINUS system | LINUS system |
| Power Supply | AC100~240V,50/60Hz, 300VA | AC100~240V,50/60Hz, 300VA | AC100~240V,50/60Hz, 300VA | AC100~240V,50/60Hz, 300VA |
| Package Size(W*D*H) | 575*490*690mm | 575*490*690mm | 575*490*690mm | 575*490*690mm |
| Gross Weight | 46kg | 46kg | 46kg | 46kg |
| Reagent Package Size(W*D*H) | 315*315*280mm; 190*240*350mm | 315*315*280mm; 190*240*350mm | 315*315*280mm; 190*240*350mm | 315*315*280mm; 190*240*350mm |
| Reagent Gross Weight | 20kg; 1.5kg | 20kg; 1.5kg | 20kg; 1.5kg | 20kg; 1.5kg |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
