Brand: EDIBON | Category: Scientific & Laboratory Equipment

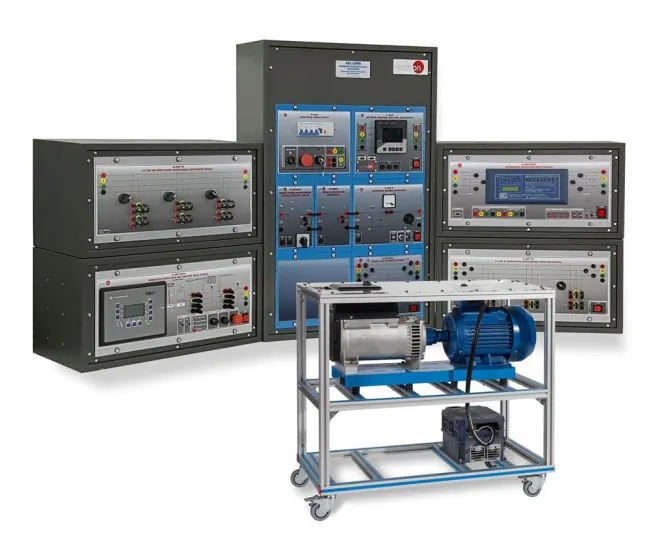

Covers the control and protection systems of high power generators at both theoretical and practical levels. The application offers several training levels, from wiring the protection devices to setting the relay and testing the protection functions.
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 1400 x 400 x 1300 mm |
| Weight | 180 Kg approx |
| Supply voltage | 400 VAC, 3PH + N |
| Line and neutral nominal current | 10 A |
