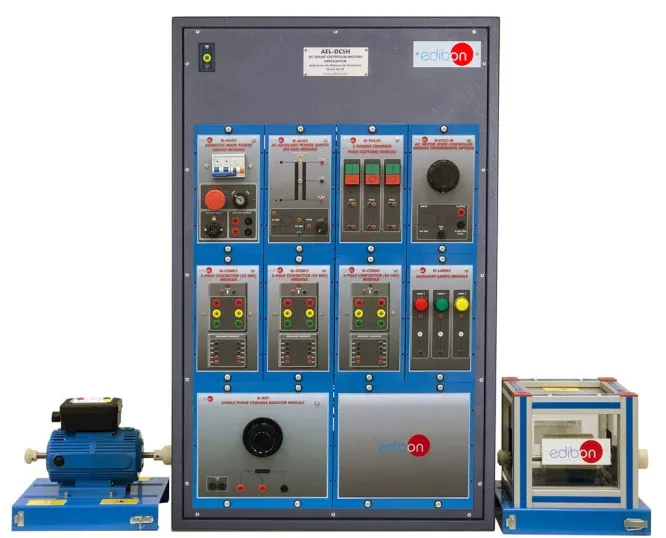

AEL-DCSH: DC Shunt Excitation Motors Application
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers the operations carried out with shunt wound DC motors, principally starting and stopping, speed control and reversal. The student wires the power and control circuits on the modular rack and measures the machine under load.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz |
| Dimensions | 640 x 320 x 920 mm |
| Weight | 50 Kg approx |
| Supply voltage (single-phase) | 230 VAC, 1PH + N |
| Nominal voltage | 24 VAC |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
